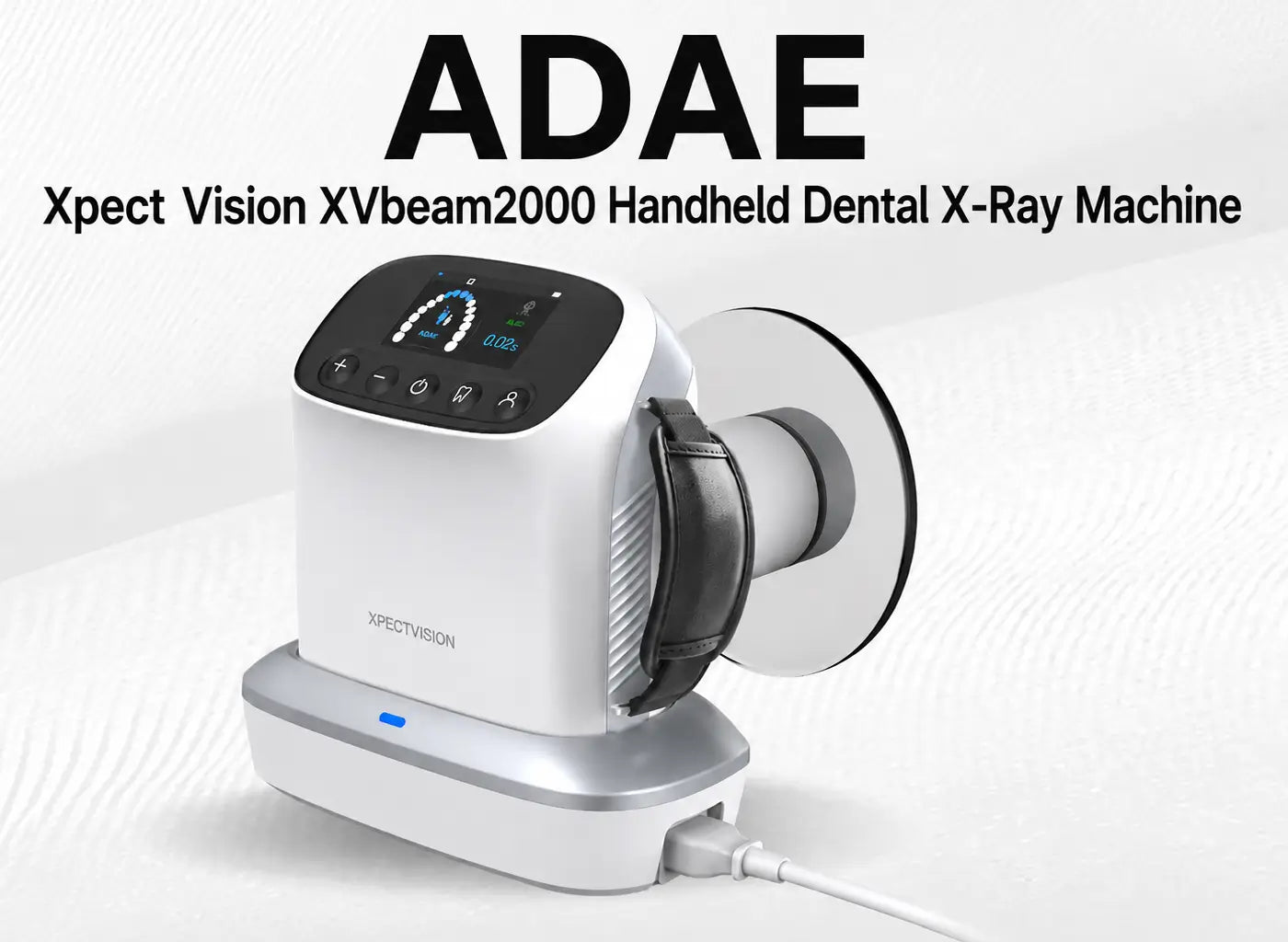

Xpect Vision XVbeam2000 Handheld Dental X-Ray Machine
- In stock, ready to ship
Technical Specification
-
Charger Input: AC100V-240V+10%.
- Focal Spot: 0.4 mm
- Tube Voltage (kV): 65 kV
- Tube Current (mA): 2.6 mA
- Exposure Time Range: 0.01–2 sec
- Inherent Filtration: 0.8 mmAl
- Additional Filtration: 1.0 mmAl
- Source to Skin Distance: 200 mm
- X-ray Field: φ60 mm
- Power Input: 22.2 V
- Weight: 2.1 kg
Warranty
One year
Stable power allows for clear images
The voltage and current of 65Kv and 2.6mA generate more power to penetrate the teeth and obtain clear images.
The focal spot size of 0.4mm significantly focuses more x-rays on the target teeth and produces a higher quality image on film or sensor.

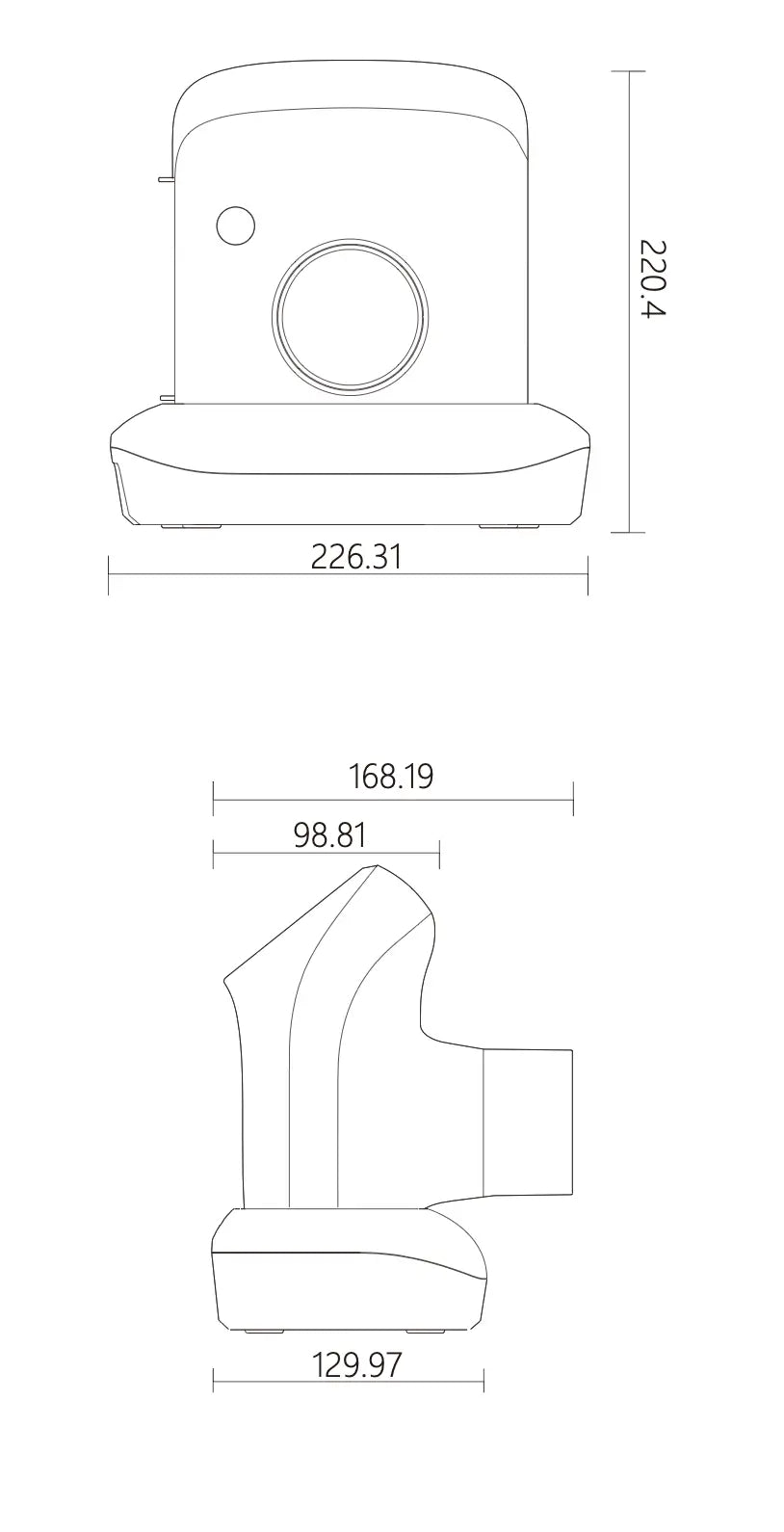

Dimension (Unit: mm)

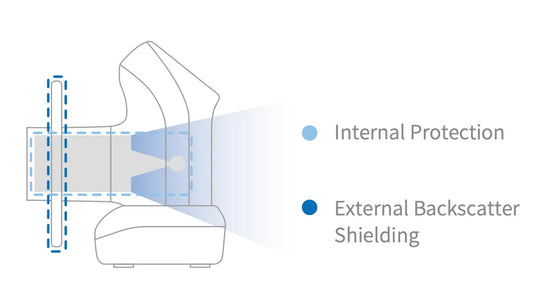

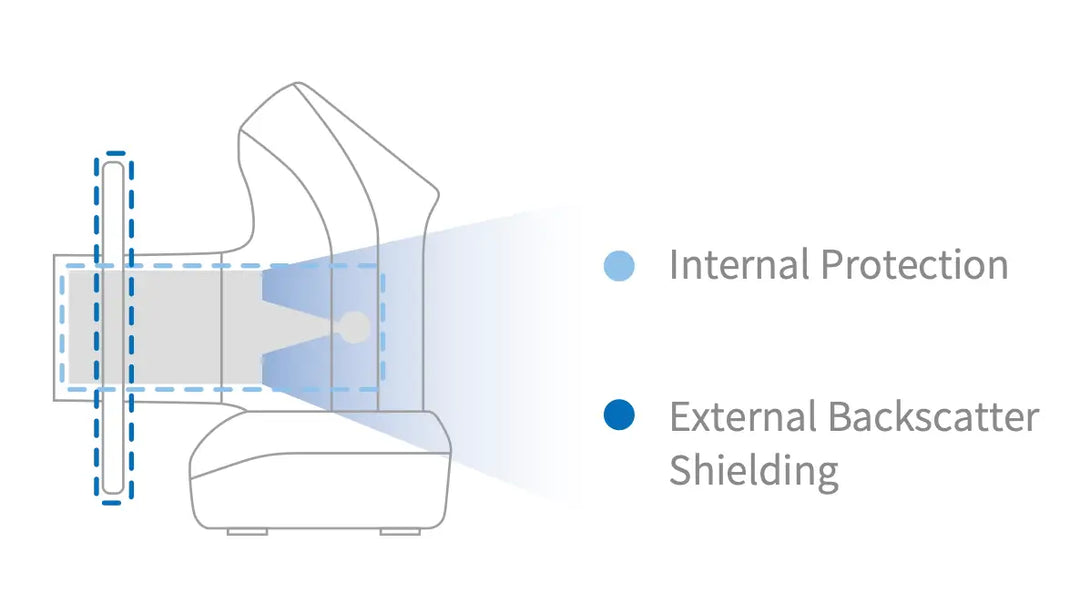

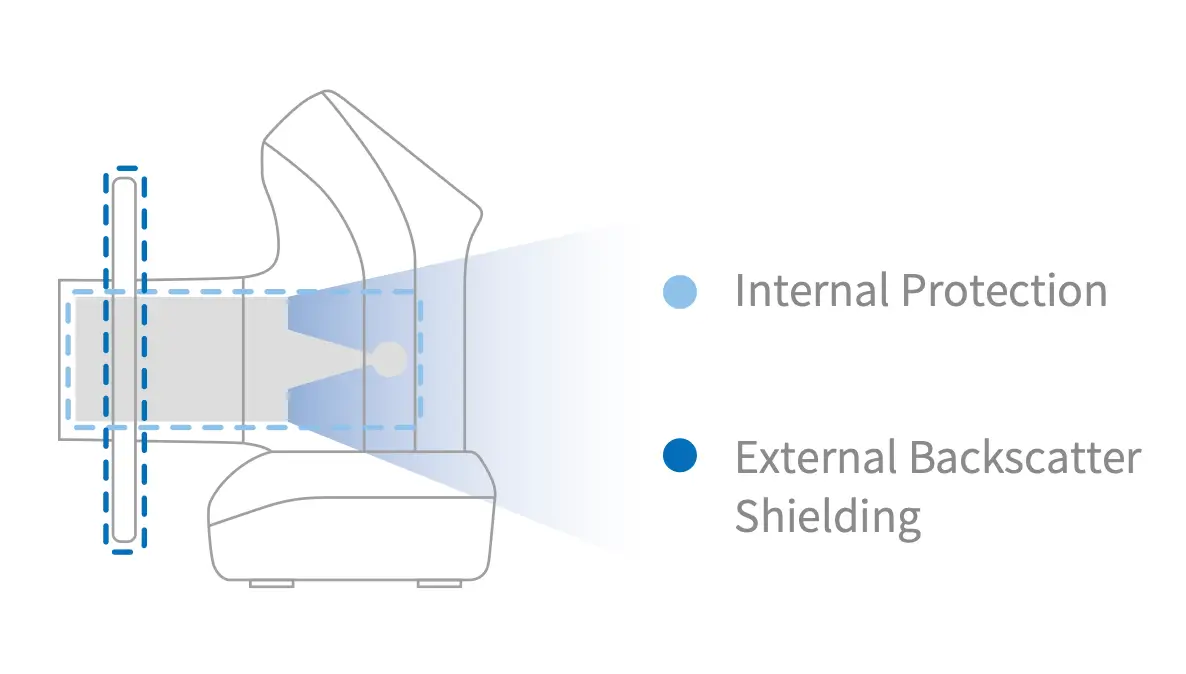

Dual-protection design reduces user exposure to radiation
The safety of users is our priority. The XVbeam2000 features a dual-protection design.

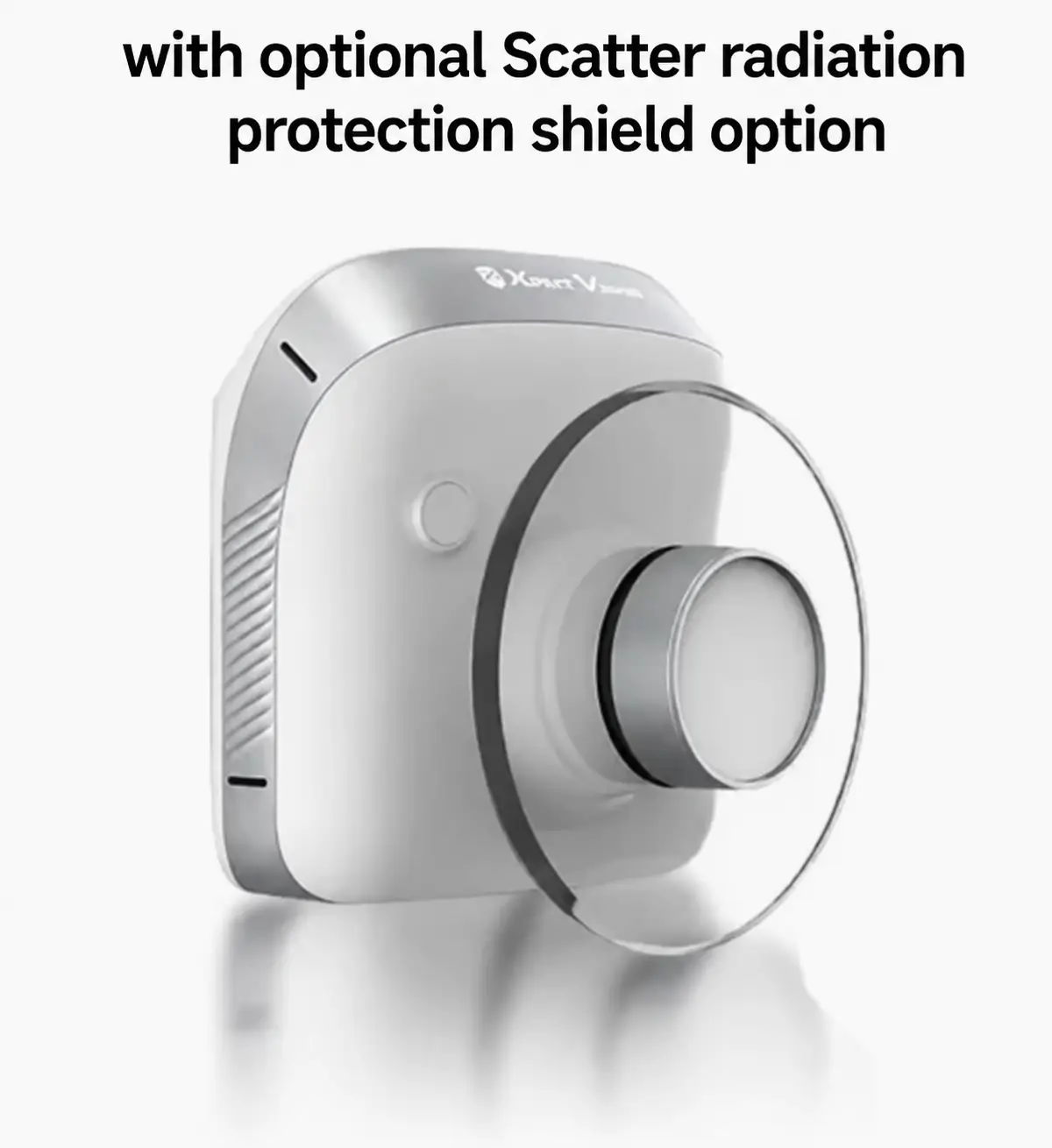

External Backscatter Shielding

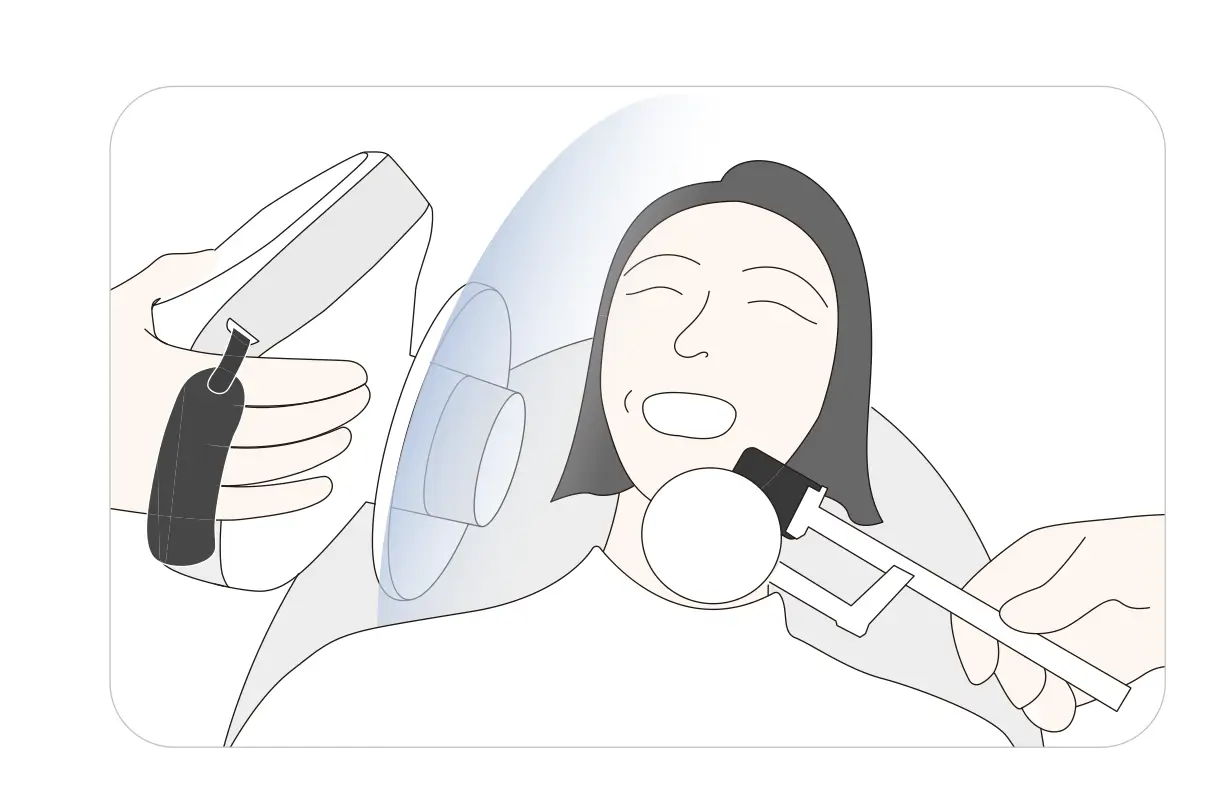

Disperse radiation occurs when the beam interacts with the patient's surface, causing radiation residuals to scatter. The backscatter shield significantly minimizes the operator's radiation dose.
Internal Protection
The internal radiation shielding is optimally constructed to shield the operator from radiation leakage.
