1. Power adapter input:
Power input: 100-240V~ 50/60Hz 1.1A
2. Internal power supply: DC 10.8V
3. Power adapter output: DC 15.0V 3.2A
4. Type of radiation: X-Ray
5. Electric power
Maximum output electric power: 0.14kw (70kV, 2mA)
Nominal electric power: 0.14kw (70kV, 2mA, 0.1s)
6. Tube voltage: tube voltage output is fixed at 70kV, error ±10%
7. Tube current: tube current output is fixed at 2mA, error ±20%
8. Loading time: the exposure loading time adjustment range is 0.02s ~ 2s, multiple
exposure time settings adjustable according to R’10 numerical system; with deviation ±5% or ±20ms (whichever is greater)

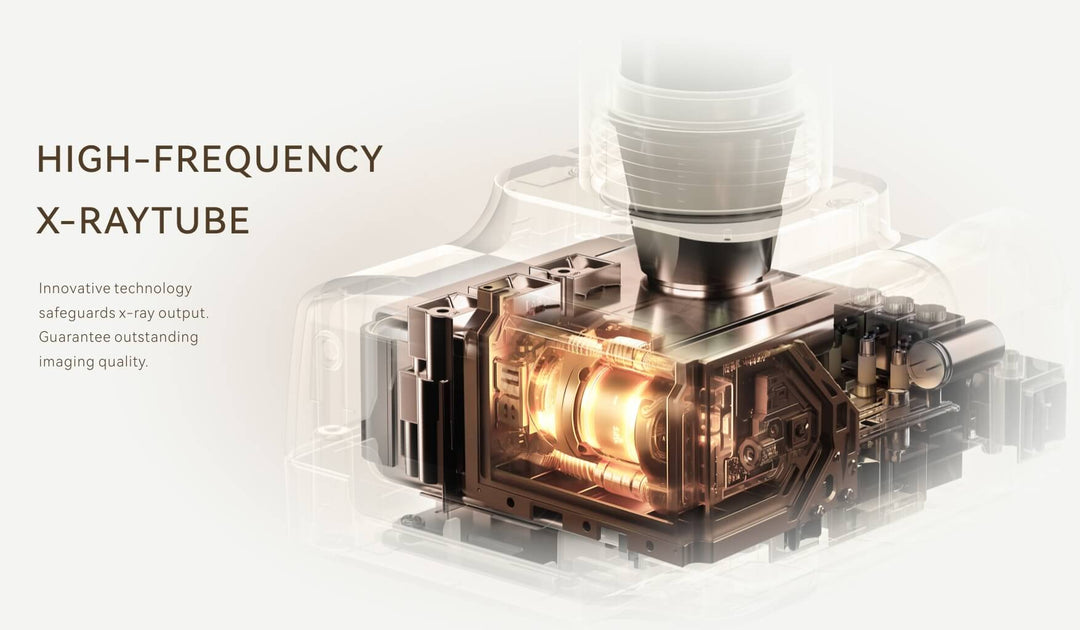

9. X- Ray tube
X-Ray tube model: D-045

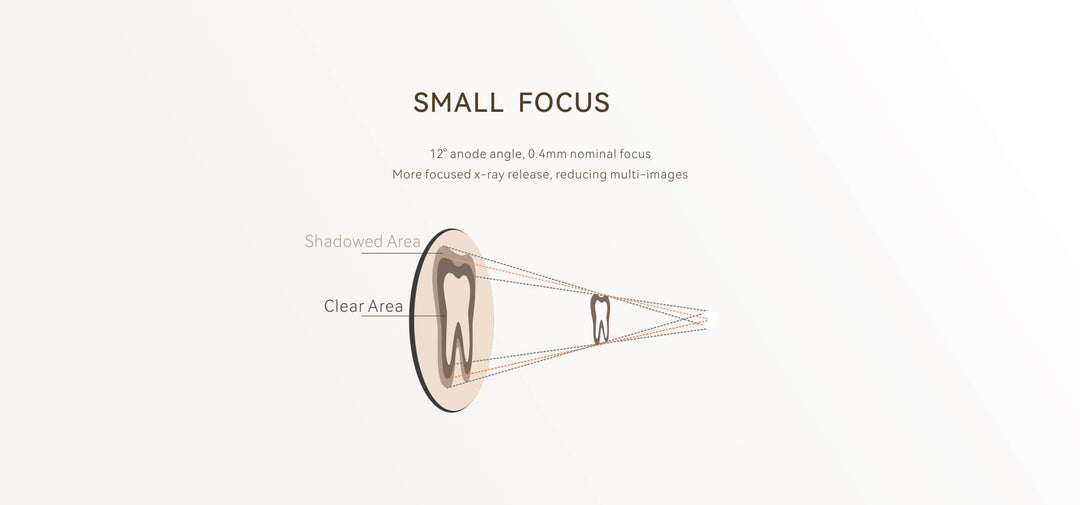

Focal spot: 0.4 mm
Target angle: 12.5°
Total filtration: 1.5mmAl/70 kV
Permanent filtration: 1.2mmAl/70 kV
Additional filtration: 0.3mmAl/70 kV
10. Distance from focal spot to skin: 20 ~ 23cm
11. Output radiation field: Φ5.9cm±0.1cm.

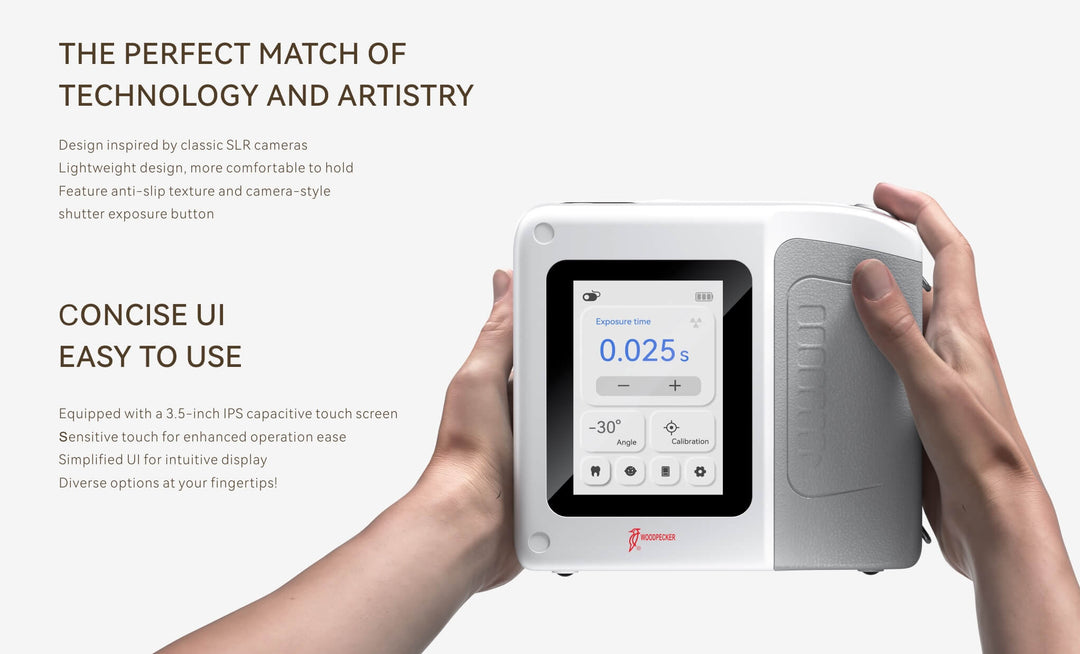

12. Product specifications:
Dimension: 240mm×161mm×143mm
Weight: 2.2KG

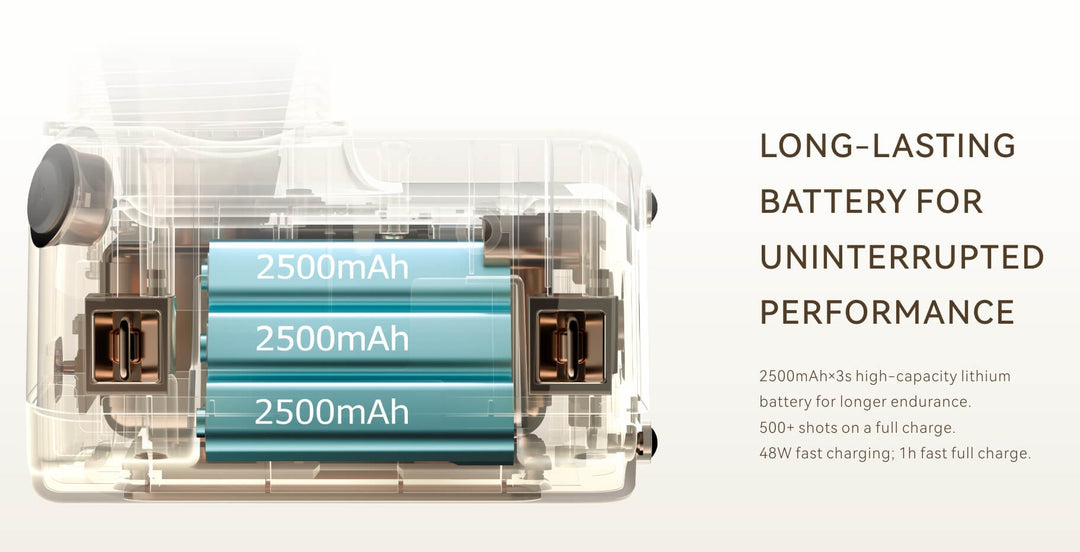

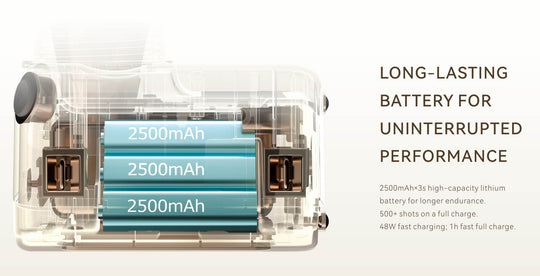

13. Battery specification: 18650×3 10.8V 2500mAh 27Wh R.
14. Exit field size:Φ5.9cm±0.1cm.
15. Reference LOADING conditions: 70kV, 2mA, 1s, loading interval 1s/60s, 59
exposures per hour.
16. Radiation output stated: the variation coefficient under the function less than 5%.

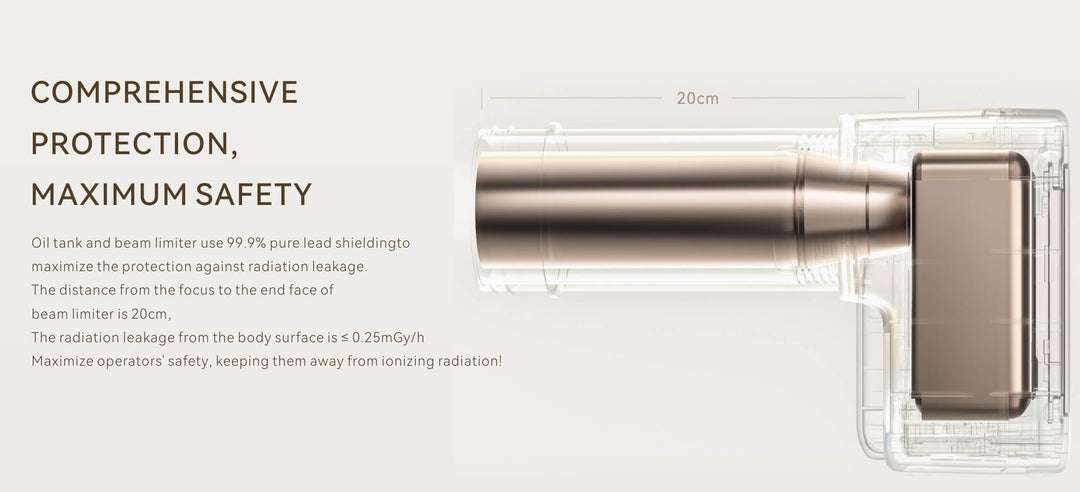

17. Under the reference conditions (70kV, 2mA, 1s), the leakage radiation value of
the contactable surface (excluding the X-Ray outlet) is not more than 0.25 mGy/h.
Leakage radiation loading factor: 2s/120s.
