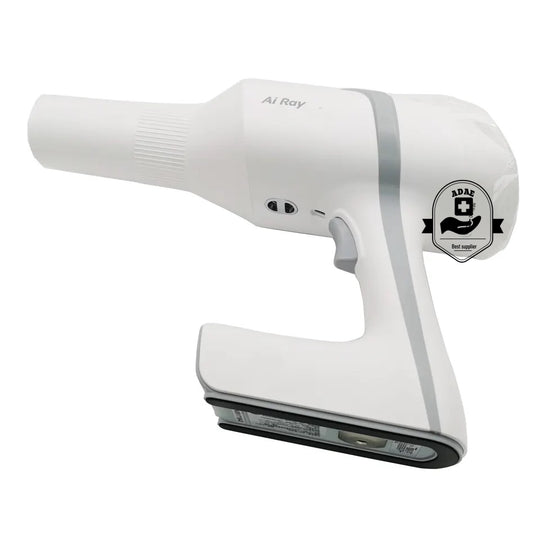

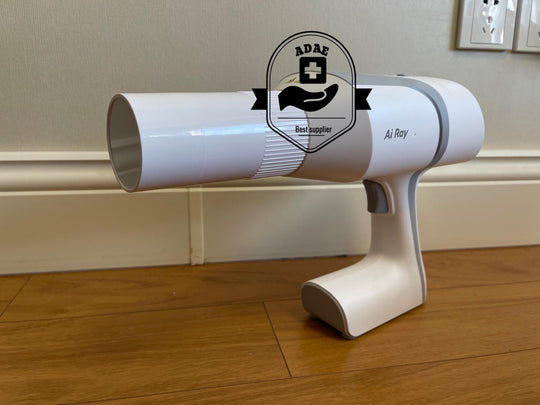

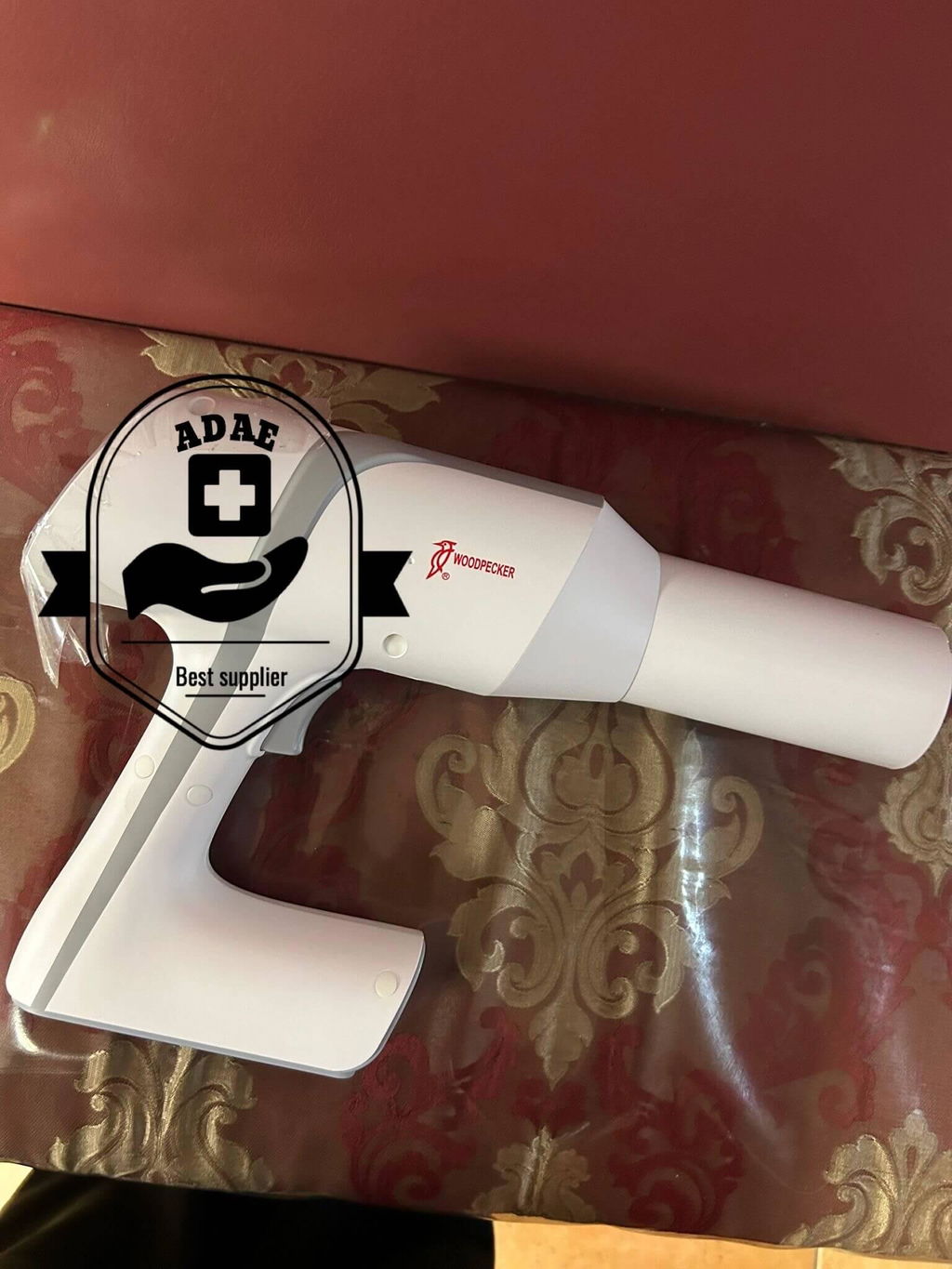

Woodpecker Ai Ray dental portable X-ray machine
- In stock, ready to ship
Watch video below for quick overview

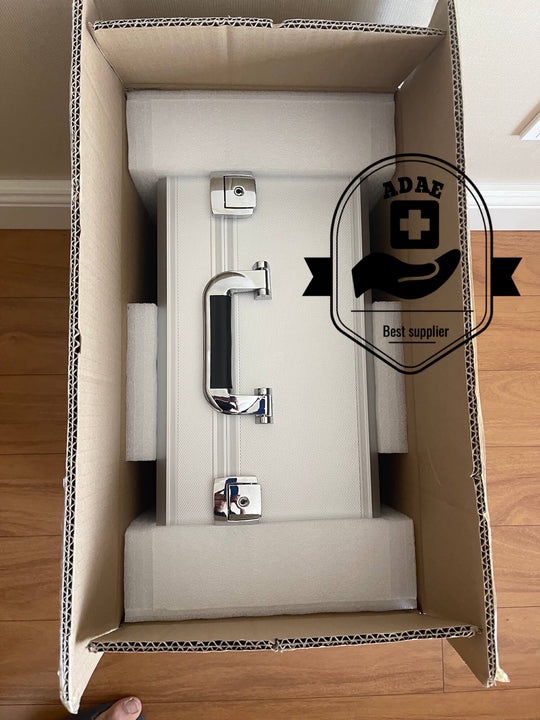

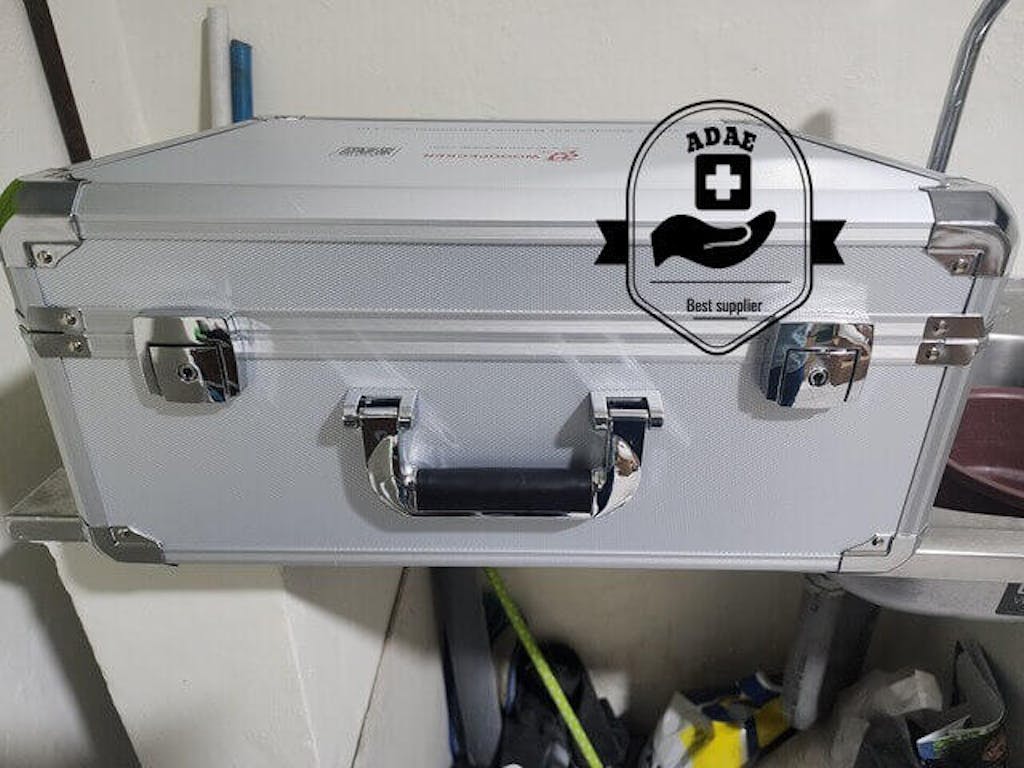

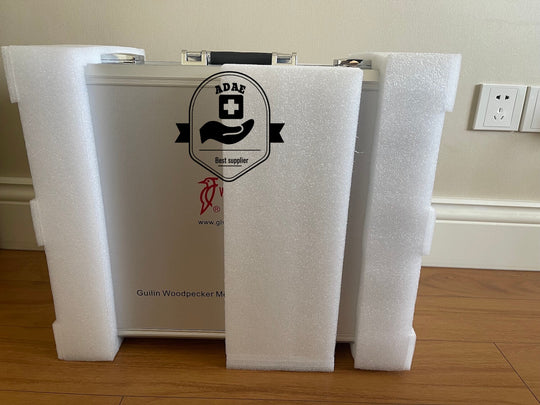

Watch video below for quick unboxing
Description
-
Purely imported Japan Canon high-frequency X-ray tube
- SUPER HIGH PERFORMANCE AND HIGH EFFICIENCY.
- DETAILED DENTAL FILMS MORE RELIABLE DIAGNOSIS.
- HIGH-CAPACITY BATTERY WITH LONGER ENDURANCE.
- 80W SUPER FAST CHARGING.

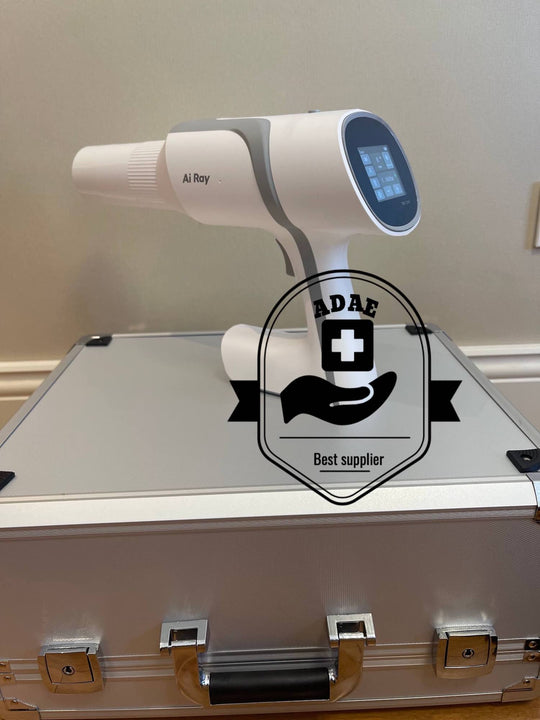

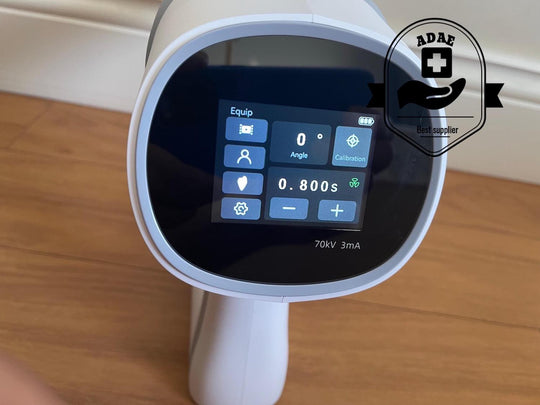

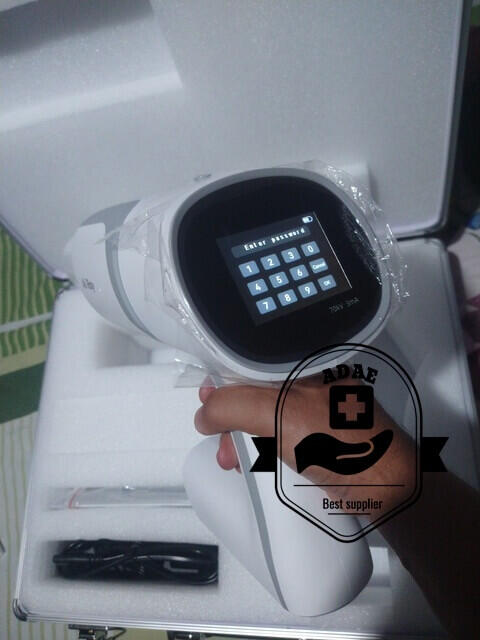

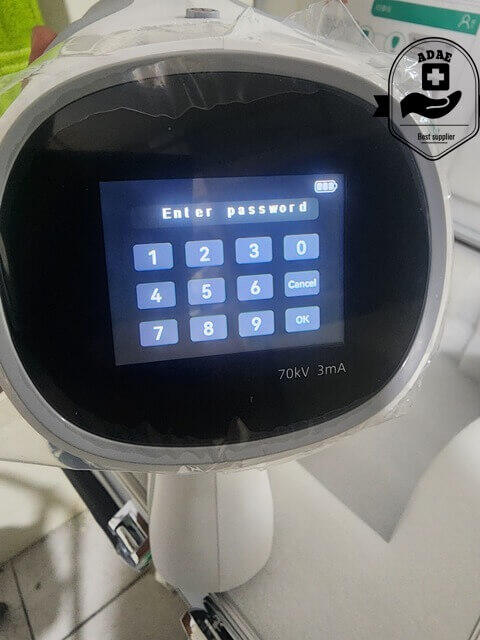

- 2.8-INCH CAPACITIVE TOUCH SCREEN.
Technical parameters
1. Power adapter input: 100-240V 50/60Hz 1.5A
2. Internal power supply: DC 10.8V
3. Types of radiation: X-ray
4. Electric power:
- Maximum power: 0.21kw（70kV, 3mA, 0.1s）
- Nominal electric power: 0.21kw（70kV, 3mA, 0.1s）
5. Tube voltage: tube voltage output is fixed at 70kV, error ±10%
6. Tube current: tube current output is fixed at 3mA, error ±20%
7. Loading time: the exposure loading time adjustment range is 0.02s～2s, the grade is adjustable, the grade is selected according to R’10 numerical system; with deviation ±(10%+1ms)
8. X-ray tube :
- Purely imported Japan Canon high-frequency X-ray tube
- X-ray tube model: D-045.
- Focal spot: 0.4mm.
- Target angle: 12.5°.
- Total filtration: 1.5mmAl/70 kV.
- Additional filtration: 0.5mmAl/70 kV.
9. Distance from focus to skin: 20cm
10. Output radiation field: Φ6cm±0.6cm
11. Product specifications :
- Dimension: 114mm×363.8mm×245.6mm
- Weight: 2.4KG
12. Battery specification : 10.8V/2450~15000mAh
Operation environment :
- Environment temperature: 10°C ~ 40°C
- Relative humidity: 30% ~ 75%
- Atmospheric pressure: 70kPa ~ 106kPa

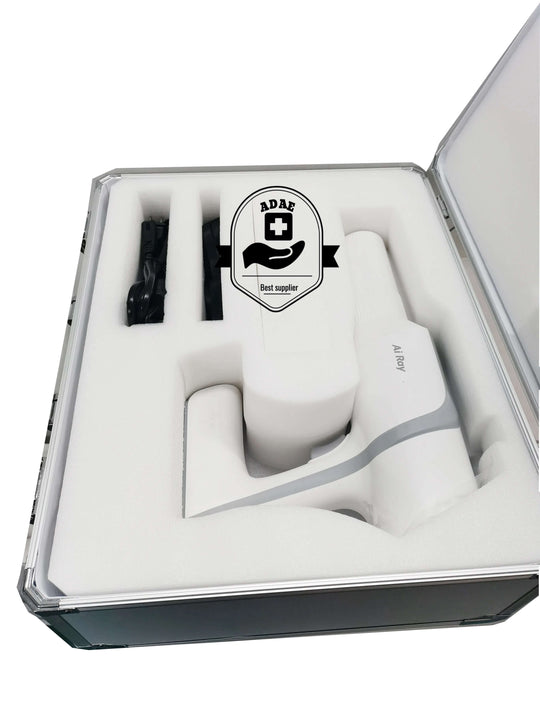

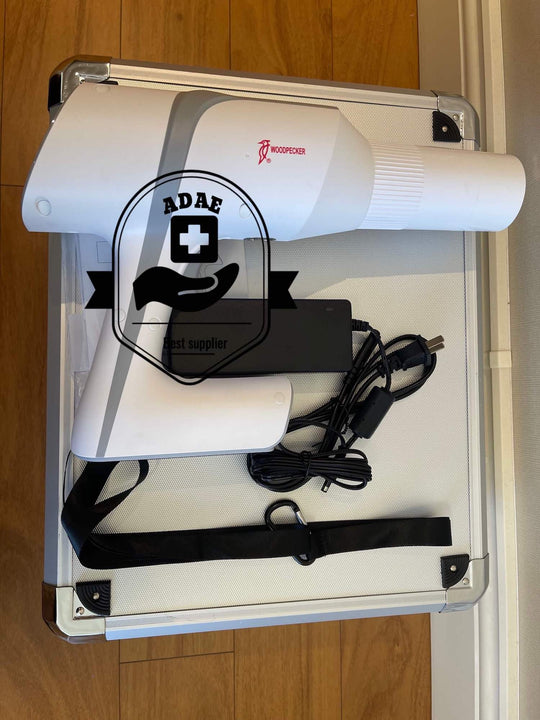

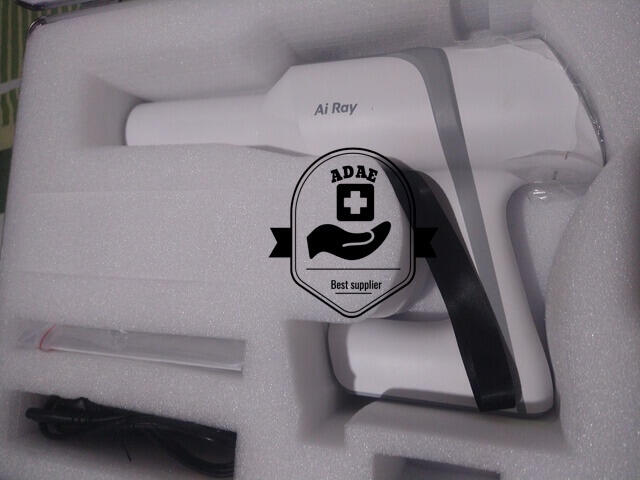

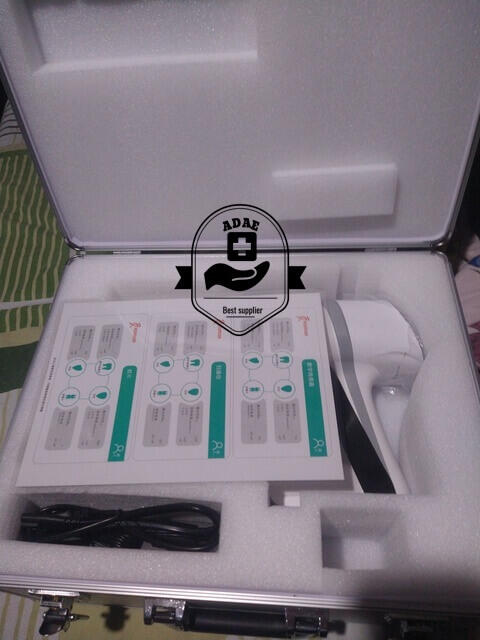

Packing list
- 1 x Ai Ray Portable X-Ray Machine,
- 1 x Power adapter and Cable.
Warranty
One year.

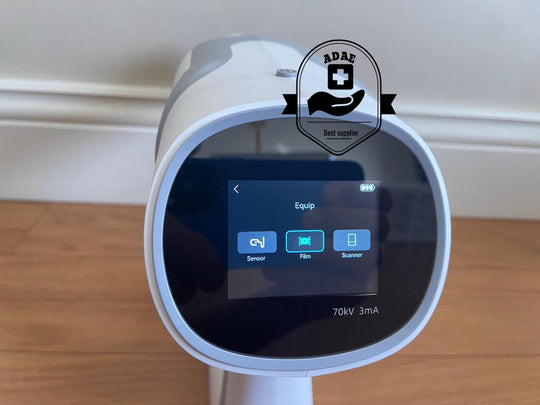

Three Differnet Modes
X-ray film- X-ray sensor- X-ray scanner
Dental Position Selector
Angle Correction
