Product Description

Output	USB,VGA,VIDEO
TV System	NTSC / PAL
Picture Device	1/4"CMOS
Effective Pixels ( HxV )	712 x 486 ( NTSC ) 704 x 576 ( PAL )
White Light LED	6 Pieces
Viewing	Marco / Intra / Extra
LCD size	5.0 inch (Diagonal)
Driver element	a-Si TFT active matrix
Resolution	640* 3(RGB) *480
Display mode	Normally white. Transmissive
Dot pitch	0.0529(W)*0.1587(H)mm
Active area	101.568(W)* 76.176(H) mm
Module size	117.56(W) * 88.43(H) *5.7(D) mm
Surface treatment	Anti-Glare
Color arrangement	RGB-stripe
Interface	Digital
Backlight Power consumption	1. 2000W (Typ.)
Power Source	DC-5V 2A 100-240V
Panel Power consumption	0.193(Typ.)

Features

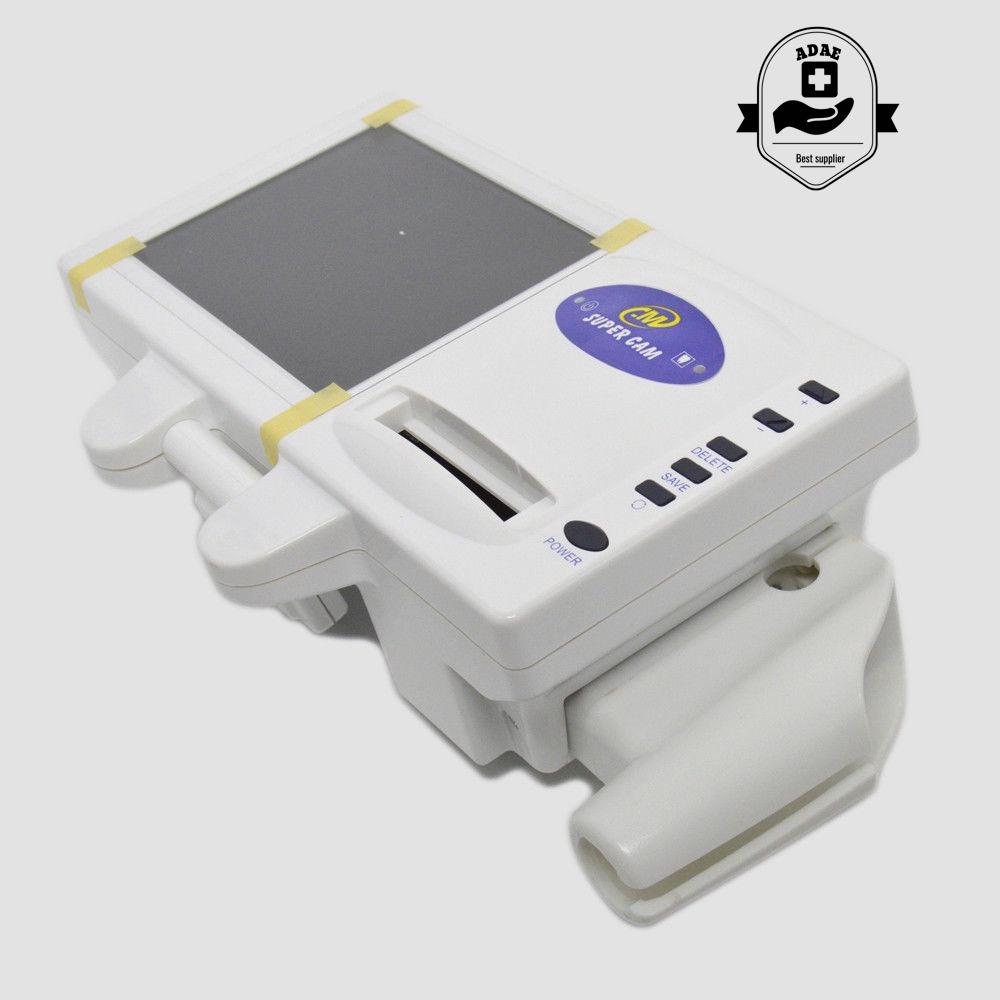

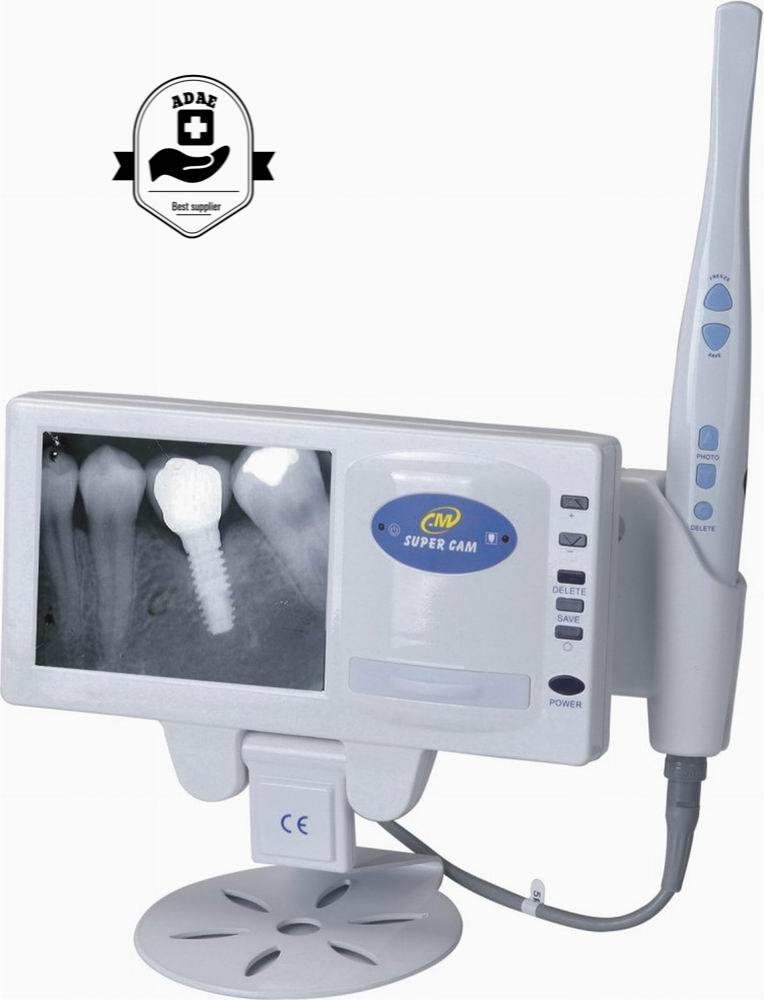

5-inch display with intraoral camera and X-ray film reader.
Video, USB or VGA output with high resolution, high sensitivity, high illumination, and high-quality crisp images.
Built-in over-voltage and reverse voltage protection circuit
Lightweight and easy to operate,
X-ray reader with a built-in memory card which can store up to 500 pictures. Images can be permanently saved to the SD card.
Highly multifunction capability, with easy switching between the intraoral camera and X-ray reader.
5 inch LCD screen instantly adjust brightness, contrast, color, and other options.
