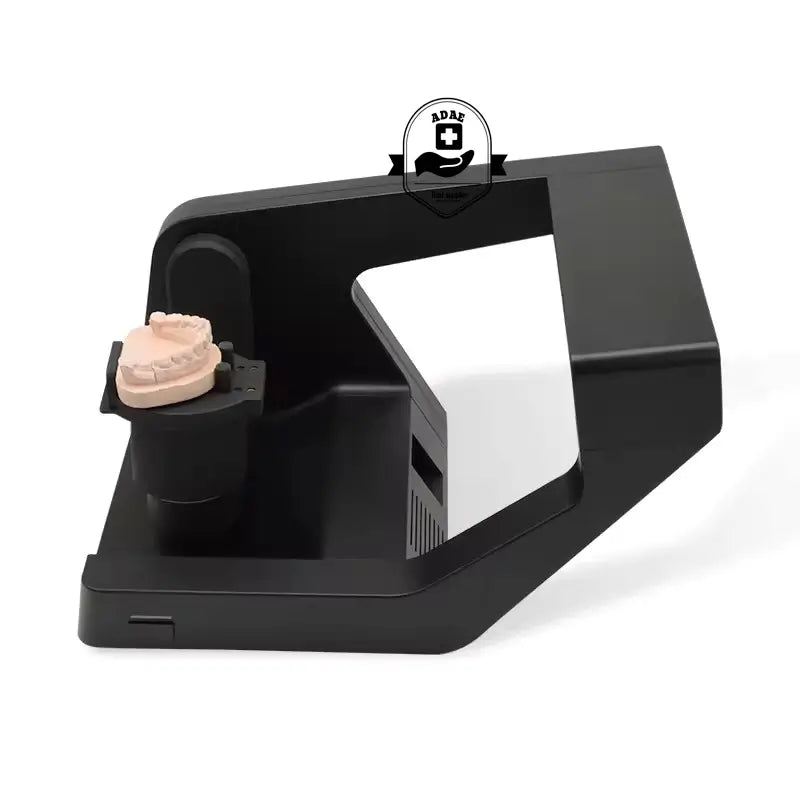

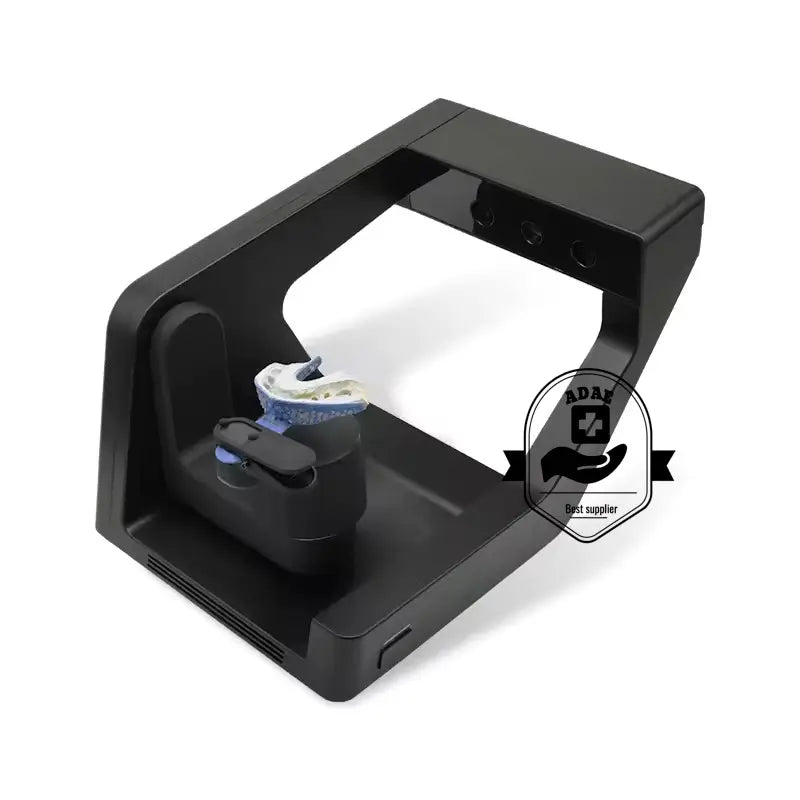

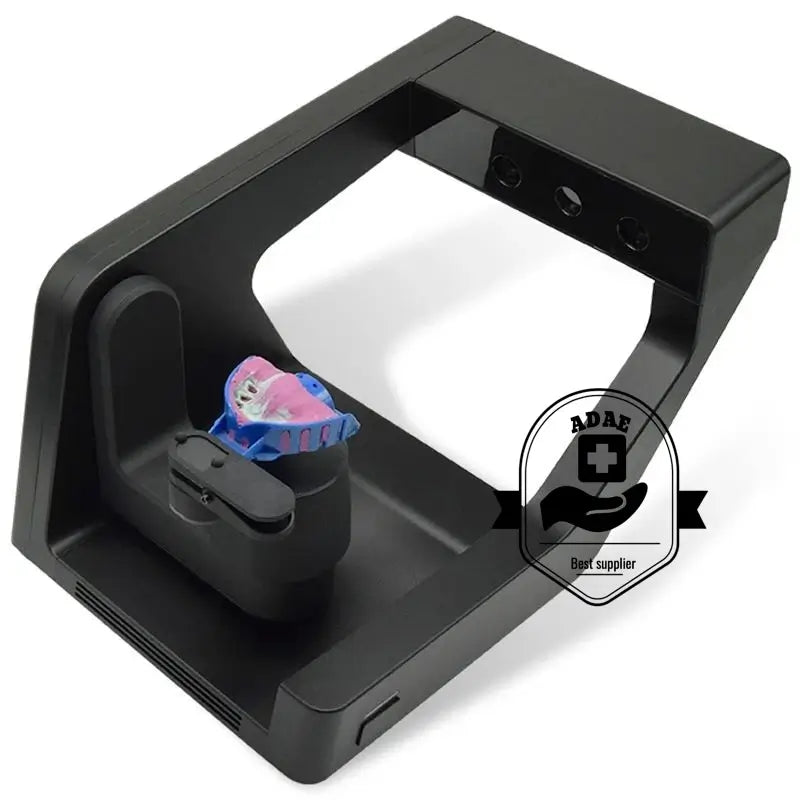

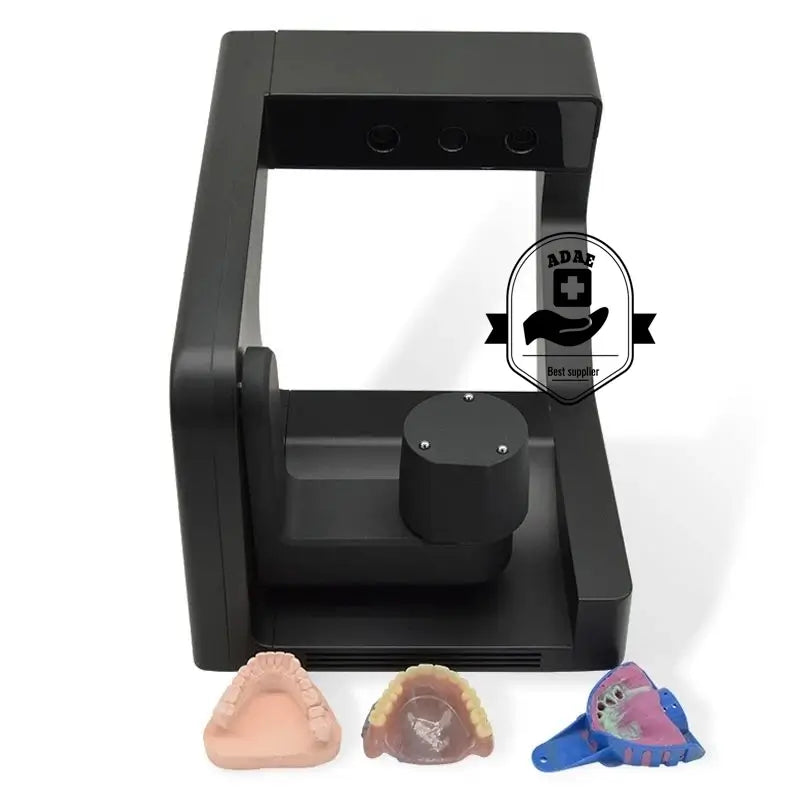

ADAE Qscan Pro desktop laboratory scanner
Regular price
$4,200.00
Sale price$3,600.00
- In stock, ready to ship

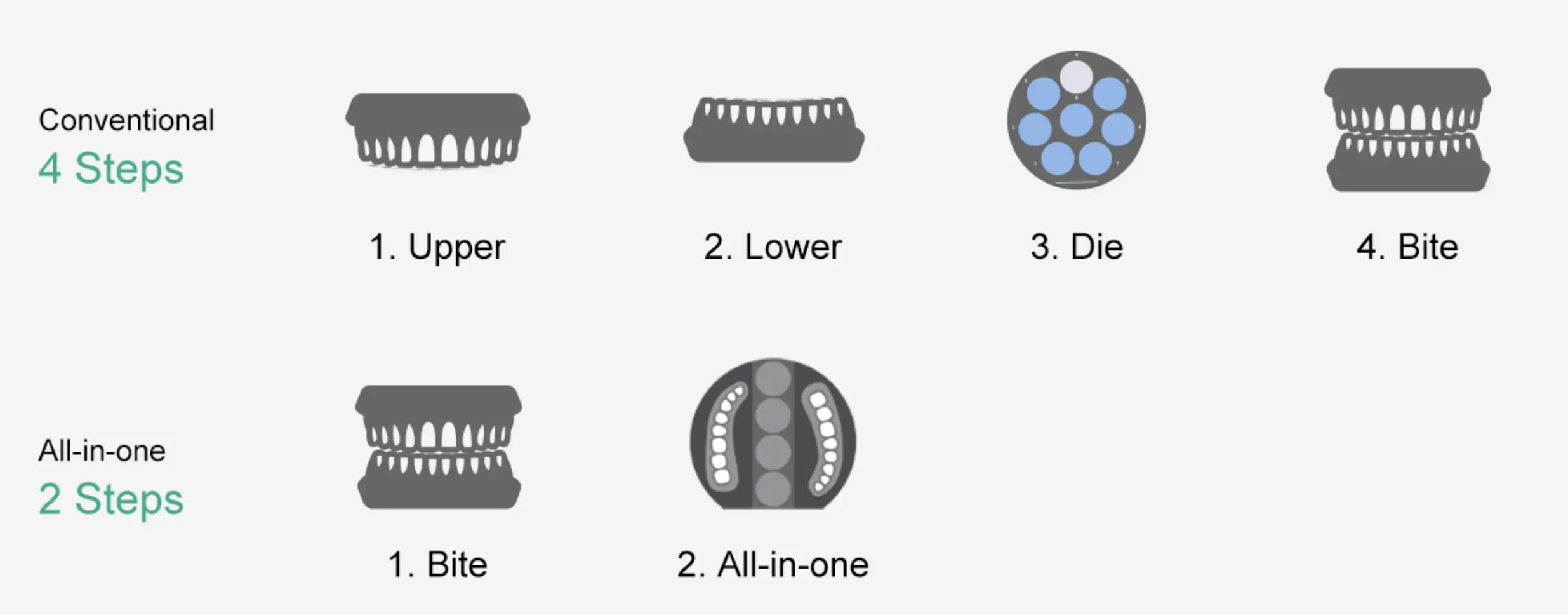

ALL-IN-ONE
This new all-in-one scan method allows scan of quadrant models and dies at the same time, which largely simplifies the scan process and improve the scan efficiency by almost 50%.
VERSATILE APPLICATION

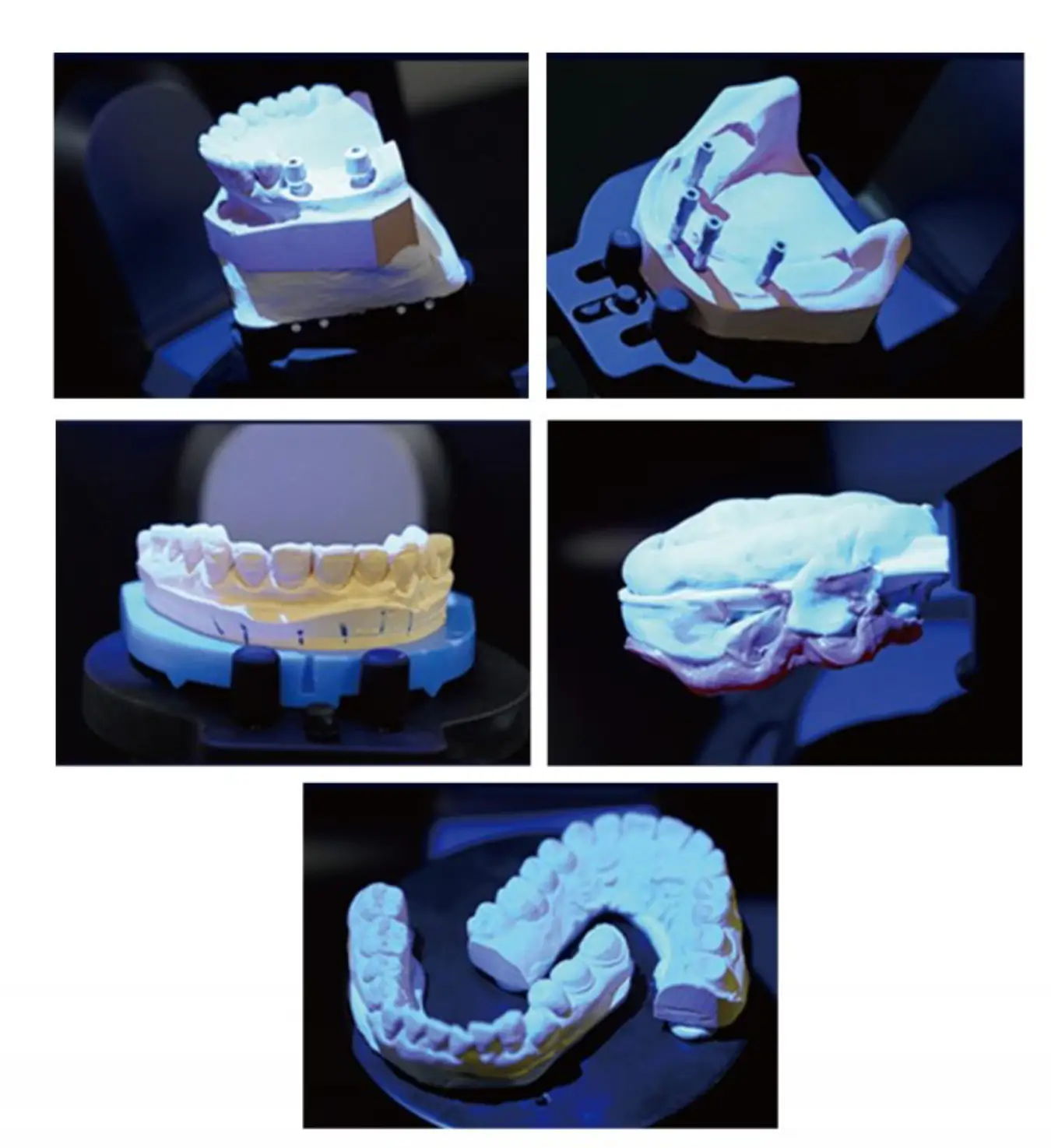

Supports a variety of dental scanning applications, including wax-ups, abutments, molds, stone models, impressions, and articulators.

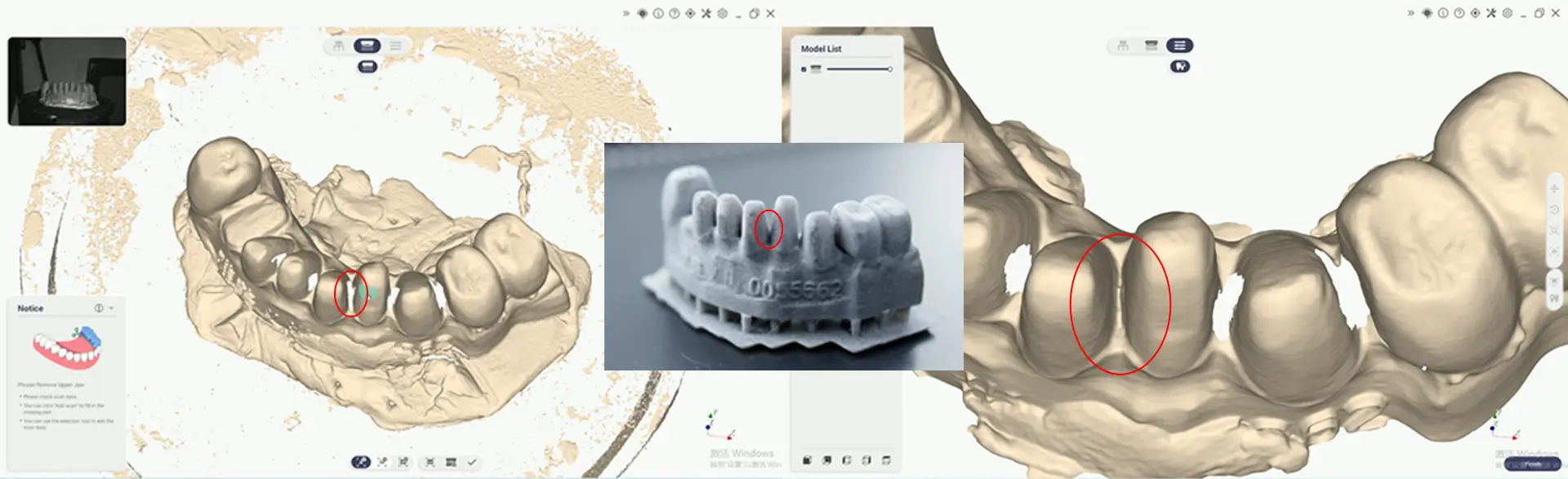

AUTOMATIC RESCAN
When scanning encounters gaps, QScan Pro can calculate an optimized scanning path and rescan to fill the unscanned holes. Users do not need to rescan manually.
Technical specifications
| Parameter | Specification |
|---|---|
| Product Name | ADAE QScan Pro 3D Scanner |
| Scanner Type | Dental Desktop 3D Scanner |
| Scanning Technology | Non-contact optical scanning / Phase-shifting optical triangulation |
| Light Source | LED Blue Light |
| Camera Resolution | 3.0 Megapixels × 2 Cameras |
| Accuracy | Less than 10 μm (ISO 12836) |
| Point Spacing | 10 μm |
| Scan Area | 100 × 100 × 75 mm |
| Scanning Speed | 5 seconds (bite scan) 12 seconds (upper/lower jaw scan) 16 seconds (1–4 dies scan) 17 seconds (5–8 dies scan) 15 seconds (impression scan) |
| Output Formats | STL / OBJ / PLY |
| Interface Connection | USB 3.0 Type-B |
| Input Power | DC 24V |
| System Requirements | Windows 10, 64-bit system |
| Weight | 5 kg |
| Dimensions | 370 × 350 × 420 mm |
| Scanning Method | Non-contact scan |
| Working Temperature | 10°C – 30°C |
| Applications | Dental models, dies, impressions, orthodontic models, digital dental workflows |

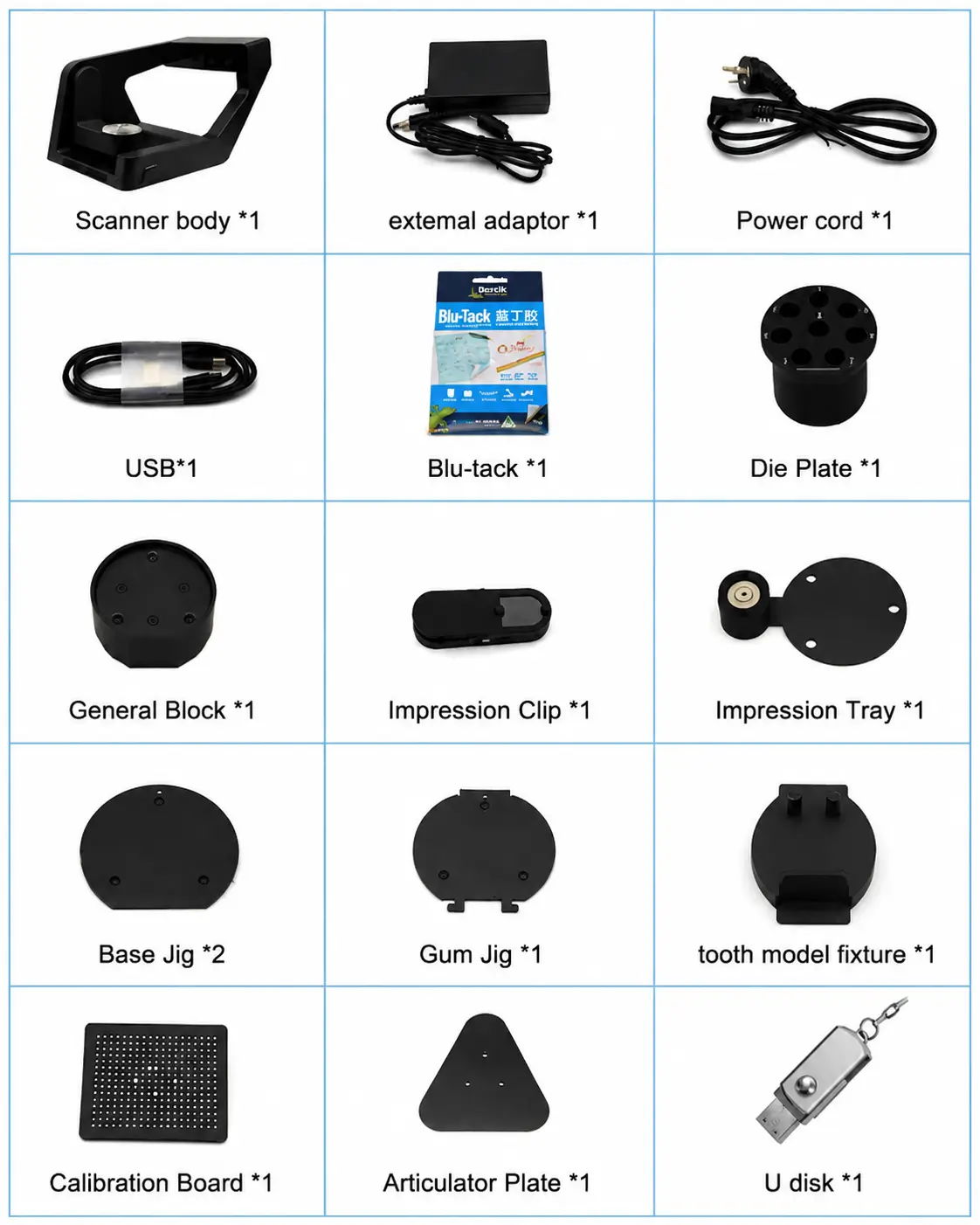

Packing List – ADAE QScan Pro 3D Scanner Accessories
- Scanner Body × 1
- External Adapter × 1
- Power Cord × 1
- USB Cable × 1
- Blu-Tack × 1
- Die Plate × 1
- General Block × 1
- Impression Clip × 1
- Impression Tray × 1
- Base Jig × 2
- Gum Jig × 1
- Tooth Model Fixture × 1
- Calibration Board × 1
- Articulator Plate × 1
- U Disk (USB Flash Drive) × 1
Warranty
One year
