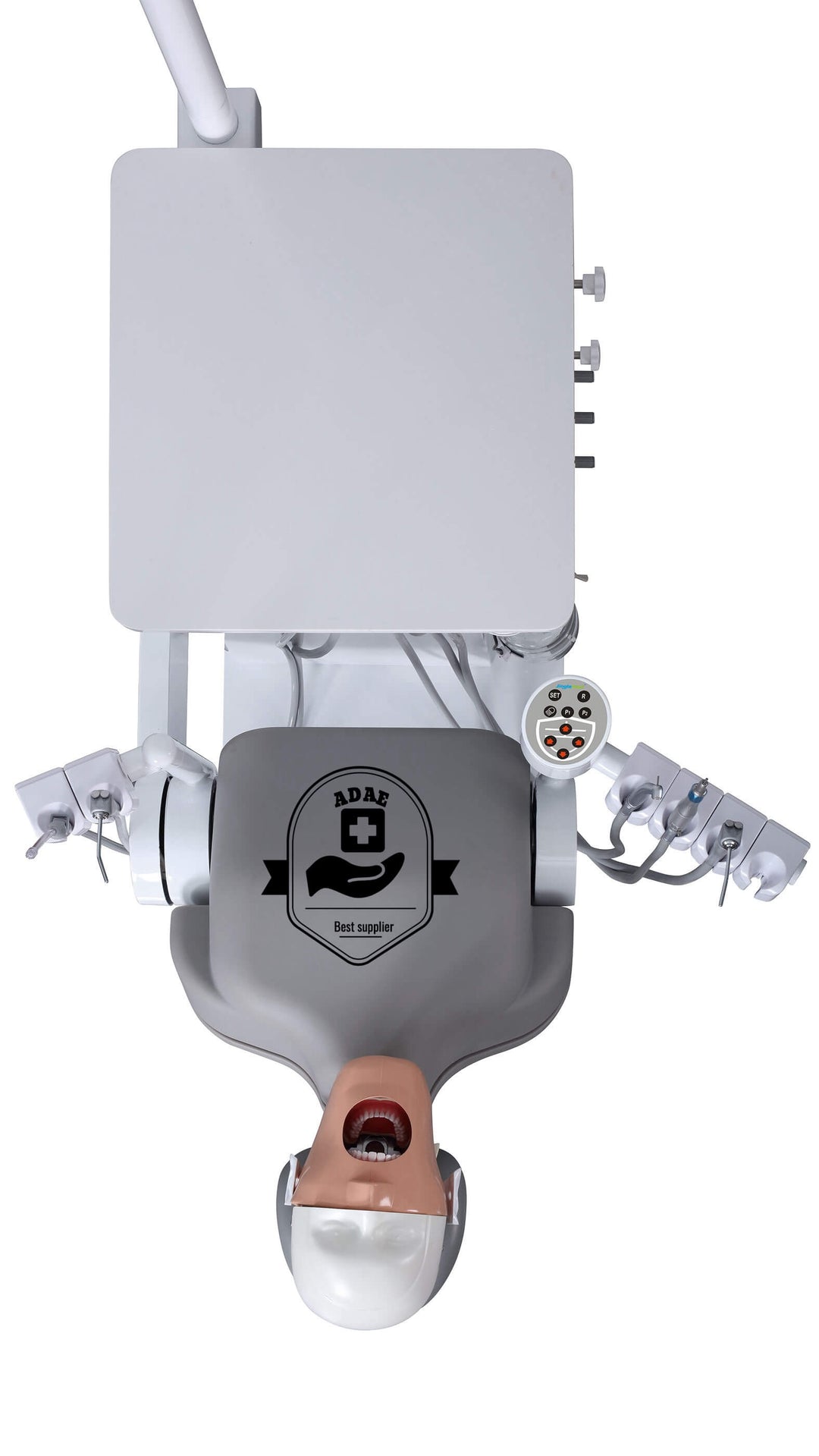

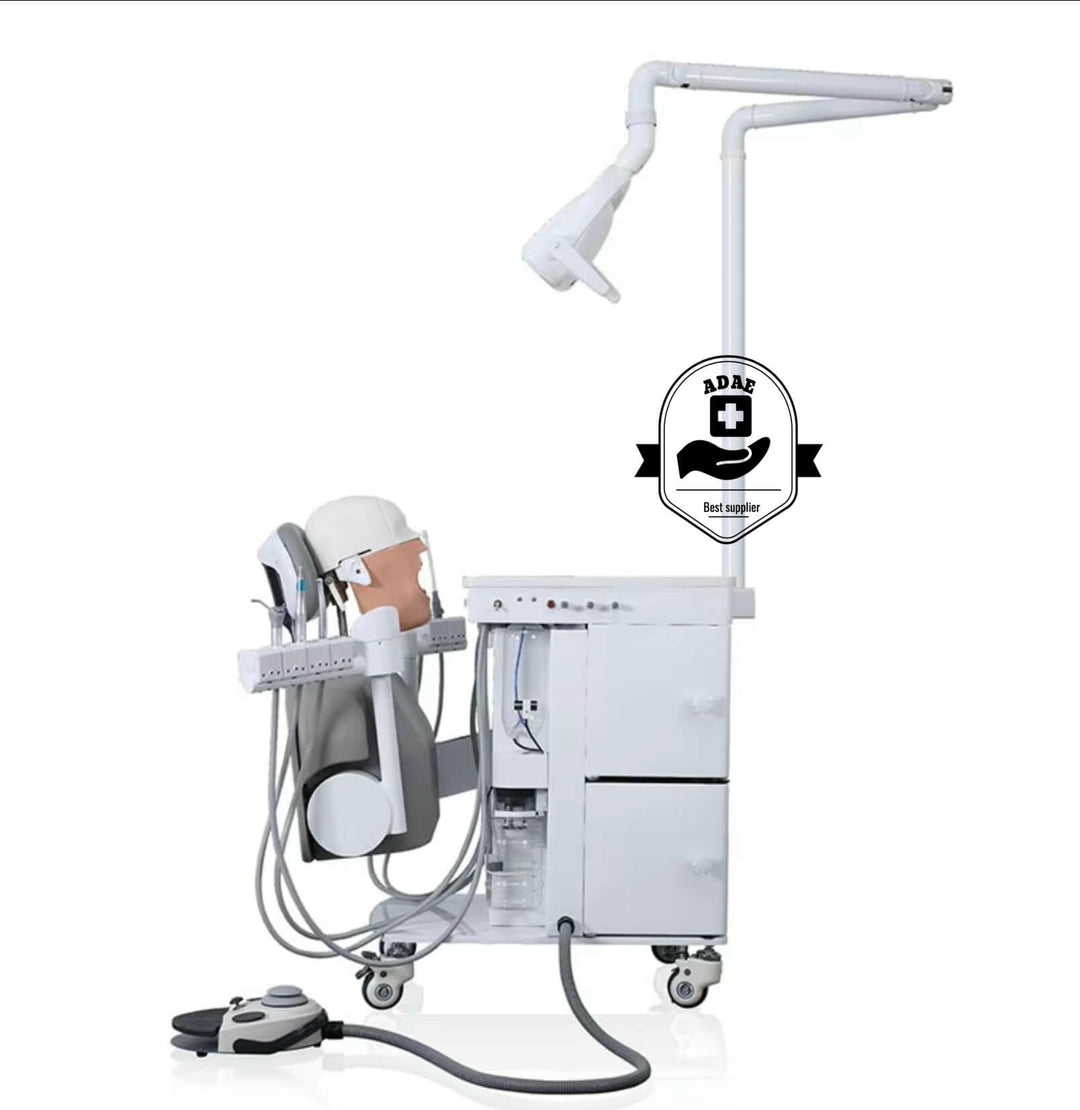

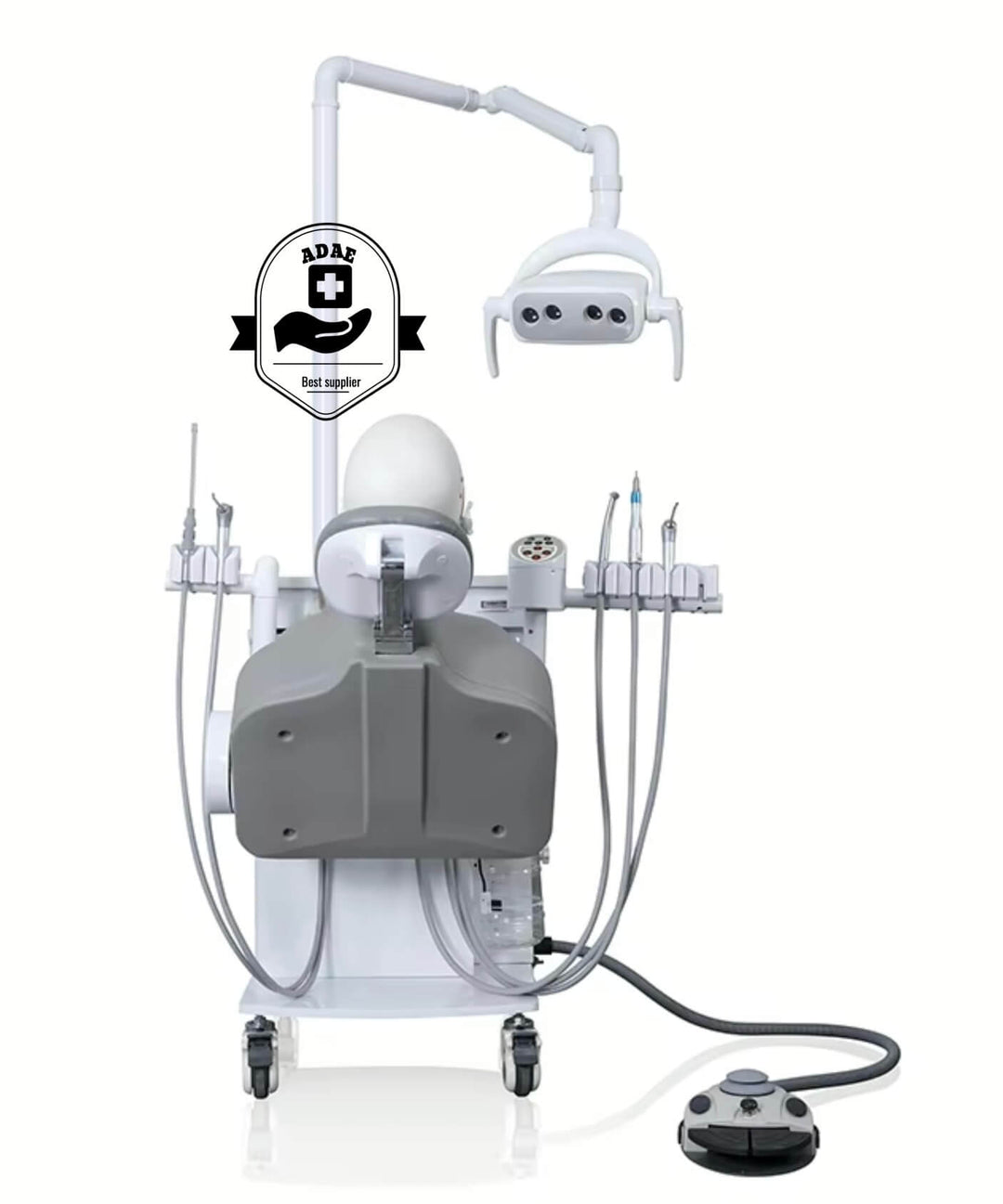

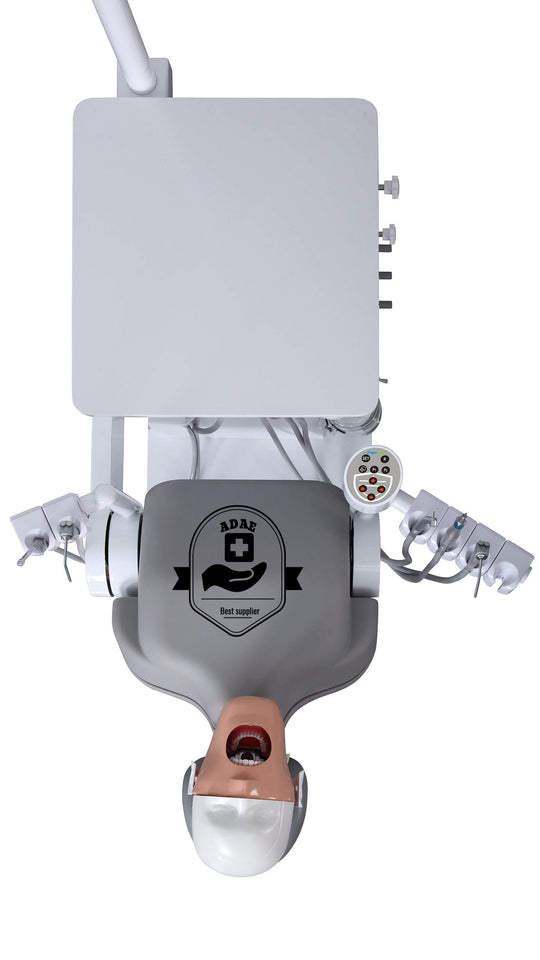

ADAE K8 Dental Electric Simulator

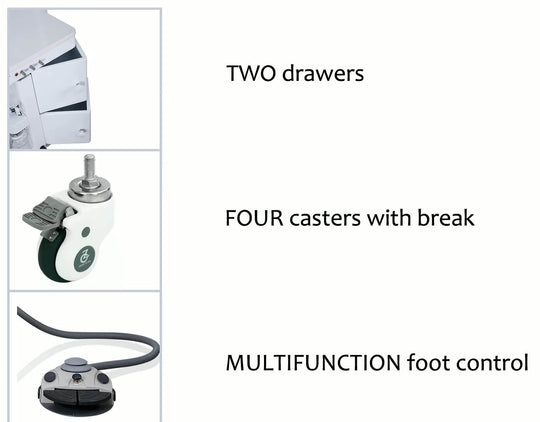

• Two drawers
• Artificial marble surface

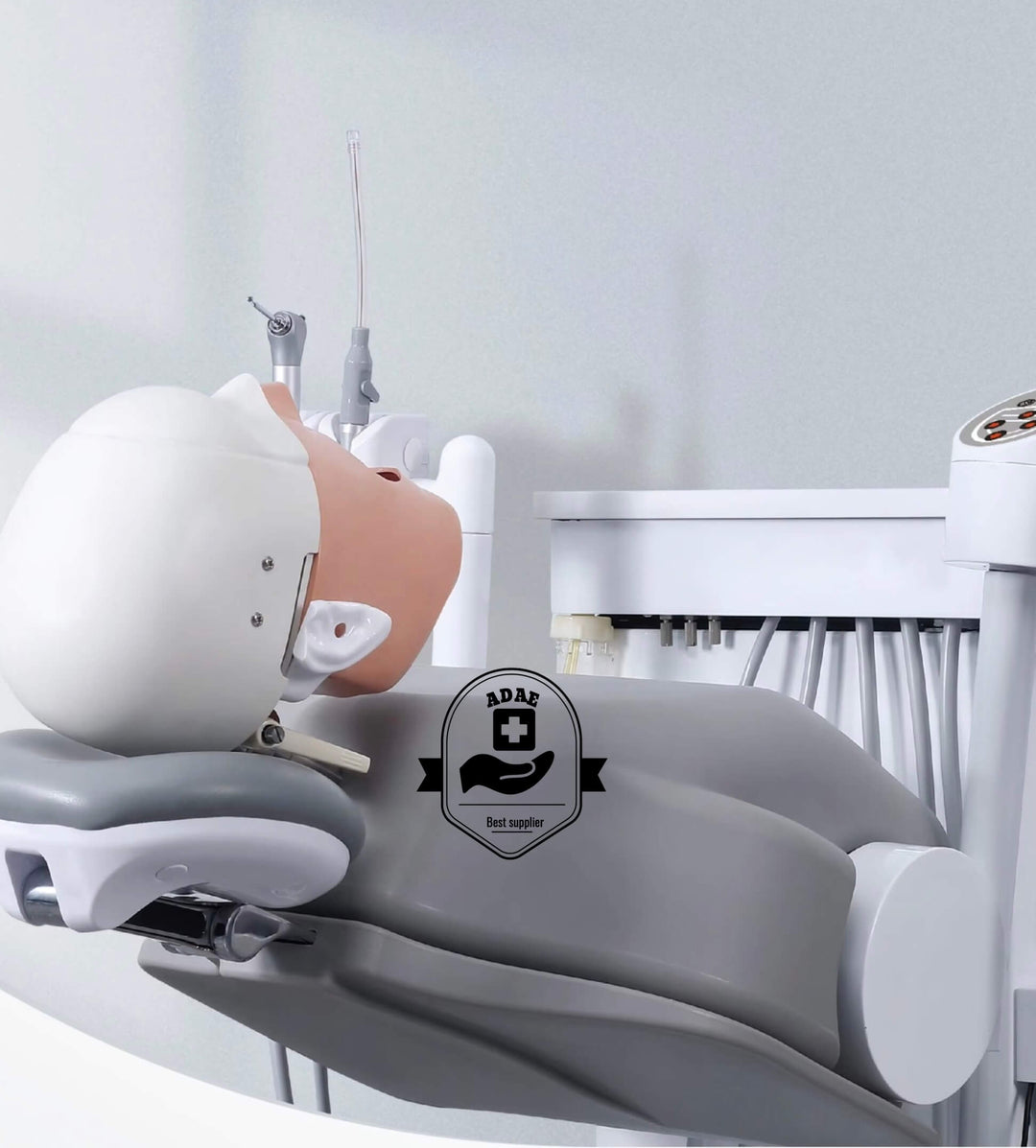

• Simulated torso and pillow
• Caster wheels with break
• Phantom head can be storaged
• Two memory positons
• Alarm system for the clean water and waste water

●Electrical positioning of the patient simulator for the most realistic training conditions ever
●Perfect ergonomics through separate height adjustment of the dentist and assistant element
●Flexible instrumentation and modular structure: endodontic function, integrated water supply and disposal as well as other
functions available as options
● Compact and clinical design with larger individual storage space for students
●2 memory position
● Solid design using high-quality metal materials
●With simulated headrest and backrest
● Suction will stop working when waste water bottle is full.

1. Applications: University, Colleague, Clinic, Training Center.
2. Operation:Electric.
3. Material: Iron.
4. Power: 120W.
5. Engine: 24V.
6. Control: Height-adjustable.
7. Features: Foldable(torso).
8. Remarks:Need Air Compressor For Dental Turbines.
9. Dimension(storage position): L80*W45*H80 cm.
10. Dimension(operating position): L125*W45*H80 cm.
11. Height Of Head:
    Max 115cm
    Min 40cm
    Max 90°
12. N.W(KG): 150KG.
13. G.W(KG): 180KG.
14. Packing(CM):109*71*97.

1. Electrical Movable Part*1
2. Dental Phantom Head*1
3. Dental Typodont*1
4. High Speed Handpiece*1
5. Low Speed Handpiece*1
6. 3-way Syringe*2

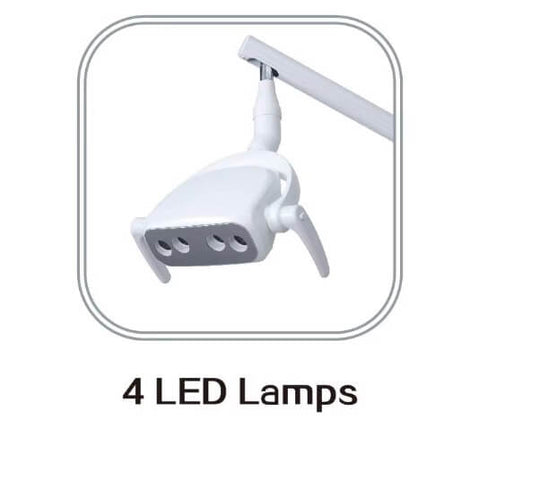

7. LED Lamp*1
8. Dentist Stool*1
9. Foot Control*1
10. Clean Water Bottle*1
11. Waste Water Bottle*1
12. Weak Suction*1

One year.
