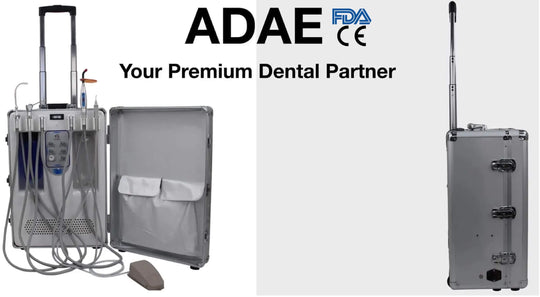

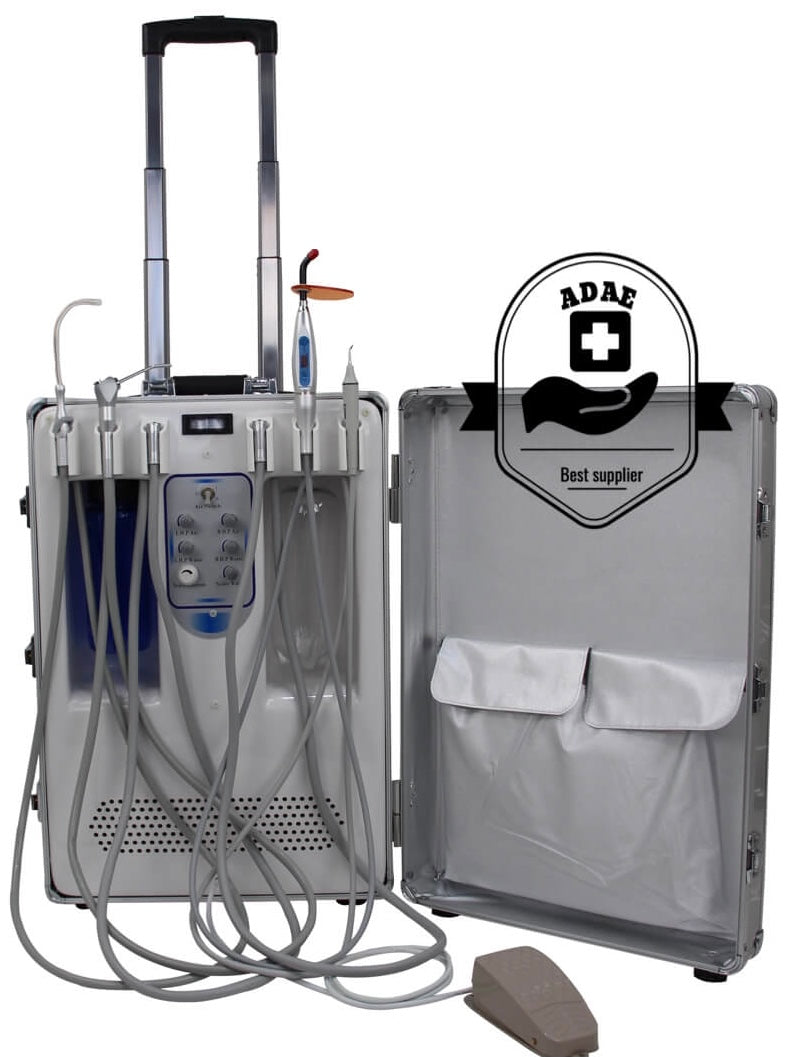

ADAE AD002 Portable Dental Unit with Built-In Silent Air Compressor

The ADAE AD002 is a portable dental unit with a built-in silent air compressor.

It includes a built-in ultrasonic scaler with 5 tips, built-in LED light curing unit, adjustable high suction, high- and low-speed handpiece pipes, three-way syringe, water bottle, drain bottle and foot control.
Its electronic control system allows the dental handpiece and suction system to operate at the same time, making the AD002 suitable for mobile dentistry, temporary treatment rooms, clinics requiring an additional treatment station, home visits and dental training environments.

Simultaneous Handpiece + Suction Operation

Unlike basic portable delivery systems, the AD002 incorporates an electronic control system with solenoid valves and microswitches that allows the handpiece and suction system to work simultaneously.

This provides a more practical workflow during dental procedures where continuous suction is required while operating the handpiece.

Key Features

• FDA-CE certified.
• Built-in silent oil-free air compressor
• Big stainless steel air tank
• Suction and handpiece can work together
• Solenoid valve controlled
• Aluminium alloy box
• Built-in ultrasonic scaler with 5 tips
• Built-in LED light curing unit
• Adjustable high suction
• Handpiece and suction can operate simultaneously
• Three-way air/water syringe
• Built-in stainless-steel air tank
• Electronic control system
• Stainless-steel solenoid valve
• Durable aluminium-alloy construction
• Independent clean-water bottle
• Drain/waste bottle
• Foot control included
• Optional complete dental handpiece kit

Technical Specifications

• Power voltage: 220V / 50Hz or 110V / 60Hz
• Power: 600 W
• Air flow: 130 L/min
• Pressure: 0.8 MPa
• Noise: 40 dB
• Net weight: 29 kg
• Gross weight: 34 kg
• Packing size: 54 × 41 × 75 cm

Standard Accessories Included

• Oilless air compressor motor × 1
• Three-way syringe × 1
• High-speed handpiece pipe × 1
• Low-speed handpiece pipe × 1
• Built-in ultrasonic scaler with 5 tips
• Built-in LED light curing unit × 1
• High suction (adjustable) × 1
• 6 L air tank × 1
• Water bottle × 1
• Drain bottle × 1
• Foot control × 1
• Optional dental handpiece kit: This kit includes:
  -Push button LED dental turbine 1pc.
  -Push button contra angle handpiece 1pc.
  -Air motor 1 pc.

Optional Dental Handpiece Kit

The optional dental handpiece kit includes:

• Push-button LED dental turbine × 1
• Push-button contra-angle handpiece × 1
• Air motor × 1

Push-Button LED Dental Turbine Specifications

• Push-button LED dental turbine
• Self-sufficient power system instead of extra supply
• Clear view with daylight LED illumination
• Triple spray
• Operating pressure: 0.25–0.3 MPa (0.3 MPa preferred)
• Air consumption: 55 L/min
• Free-load speed: 260,000 RPM for torque head
• Generator speed: 25,000–30,000 RPM
• Chucking power: 20–45 N
• Noise: ≤70 dB
• Net weight: 88 g

Contra-Angle Specifications

• External water spray
• Latch type
• Maximum speed: 22,000 RPM
• Precise technology, steady with no vibration while revolving
• Durable and autoclavable portable dental handpiece

Air Motor Specifications

• 1:1 drive
• Maximum speed: 22,000 RPM at 0.25 MPa
