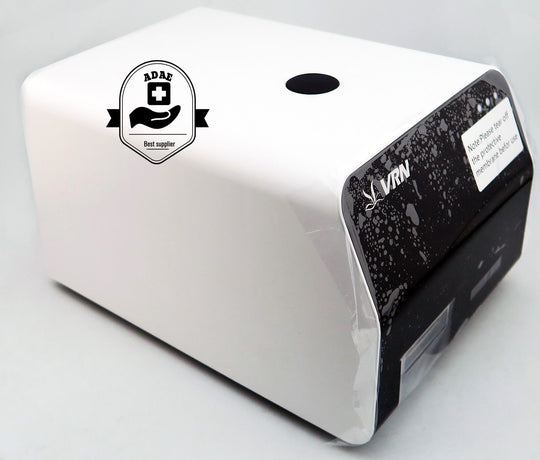

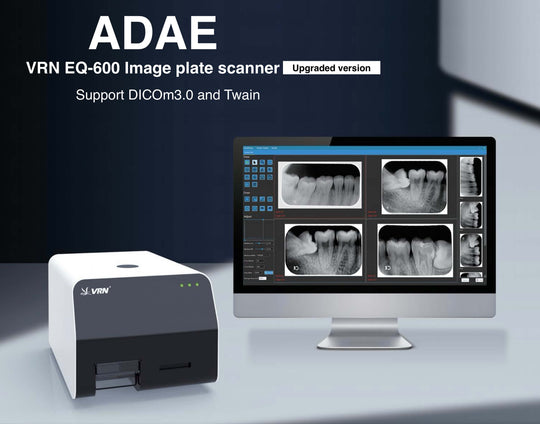

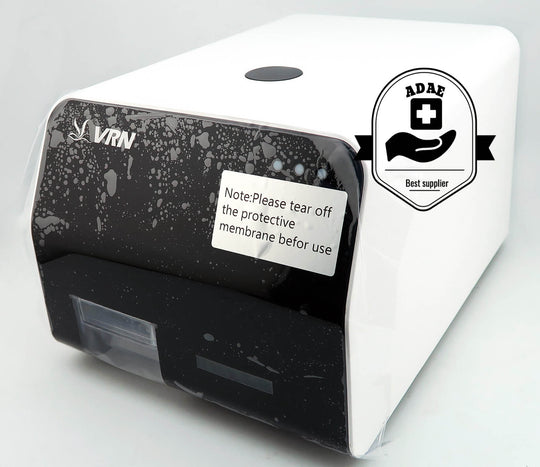

ADAE VRN EQ-600 Image plate scanner
Regular price
$2,099.00
Sale price$1,999.00
Quick details
1. ADAE VRN EQ-600 image plate PSP scanner supports IP sizes:
Size 0: (22×31mm).
Size 1 : (24×40mm).
Size 2: (31×41mm).
Size 3: (27×54mm).
Size 0: (22×31mm).
Size 1 : (24×40mm).
Size 2: (31×41mm).
Size 3: (27×54mm).
2. System Configuration: Windows XP,Windows 7,Windows 8,Windows 10.
3. Plate Sizes included: 0, 1, 2, 3 (Meet the diagnostic needs of children and adults).
Support IP sizes:
0 (22×31mm)：Standard-343×484 pixels High-628×885 pixels.
1 (24×40mm)：Standard-375×625 pixels High-685×1143 pixels.
2( 31×41mm)：Standard-484×640 pixels High-886×1171 pixels.
3 (27×54mm)：Standard-421×843 pixels High-771×1542 pixels.
Description
- Selectable Pixel Size：35μm.
- Detector Technology：APS CMOS.
- Software*：UT-Dental.
- Active Area：32*54mm.
- Mechanical Size：34*55mm.
- Readout Time：15s.

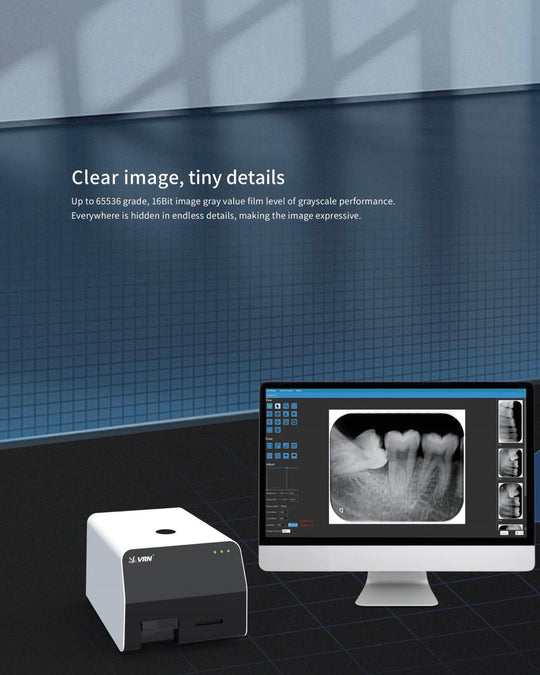

- Data Capture：16-Bits65,536 grey level.
- Eraser：Embedded(auto).
- Dimensions (H*W*D)：305*211*182mm.
- Weight：6Kg.
- System Configuration：Windows XP,Windows 7,Windows 8,Windows 10.
- Power：100-240V(AC)50/60Hz1.5A.
- Interface：USB 2.0 high speed(480 Mbps) /Ethernet(100Mbps).
- Work Temperature：10 to 40℃.
- Storage Temperature：-25 to +60℃.
- Humidity(non-condensing)：10 to 93% R.H.

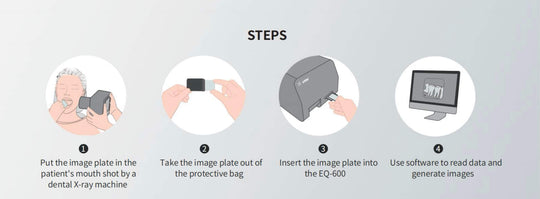

Simple operation process, quick and easy to use

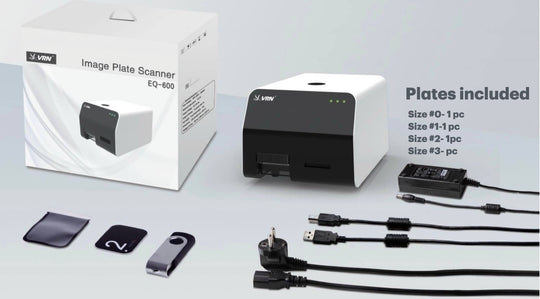

Packing list
- Mian machine: 1 pc
- Plate Sizes included: 0, 1, 2, 3.
- 350 protection seleves included.
- USB cable : 1 pc.
- USB flash driver ( software installation) : 1 pc.
- Power adaptor : 1 pc.
- Power line: 1 pc.
Warranty
One year.
