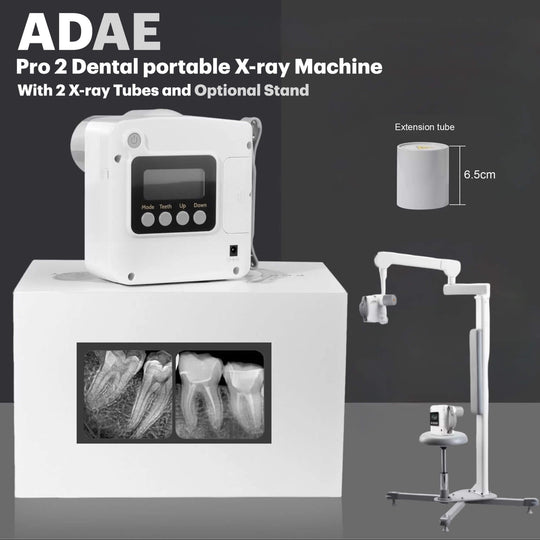

ADAE Pro 2 dental portable X-ray machine (with 2 X-ray tubes and optional stand)-New release

Key Features

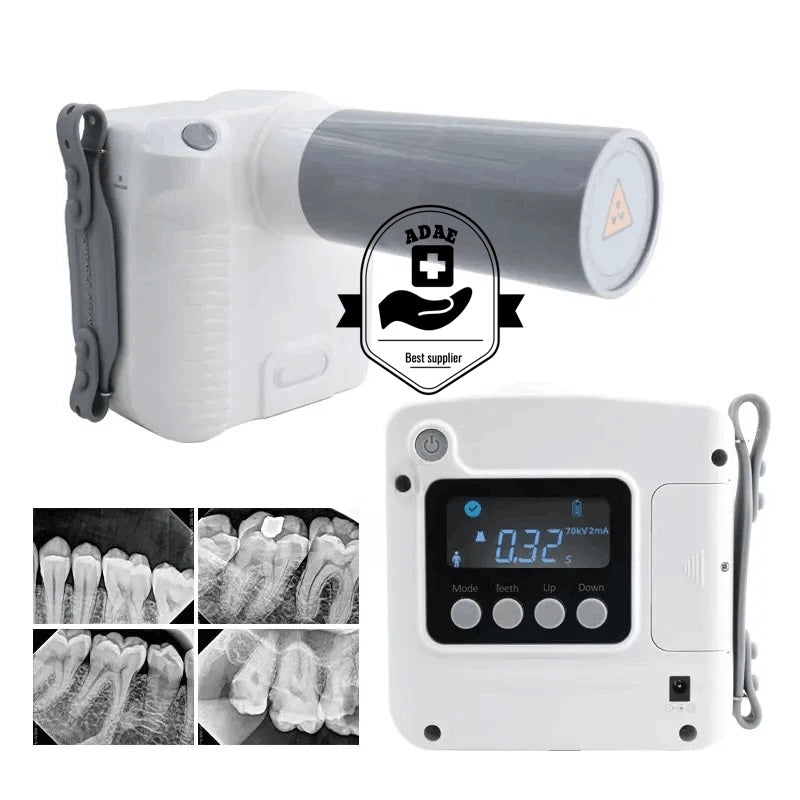

• High-Performance Imaging: 70kV, 2mA ensures short exposure time, anti-shake, less radiation, and sharp images.

• Long-Lasting Power: Imported lithium battery with large capacity. One full charge provides up to 500 shots.

• Stable & Reliable: Double closed-loop system keeps voltage stable—low battery will not affect imaging quality.

• Precision Focus: 0.4 mm focal spot for detailed images.

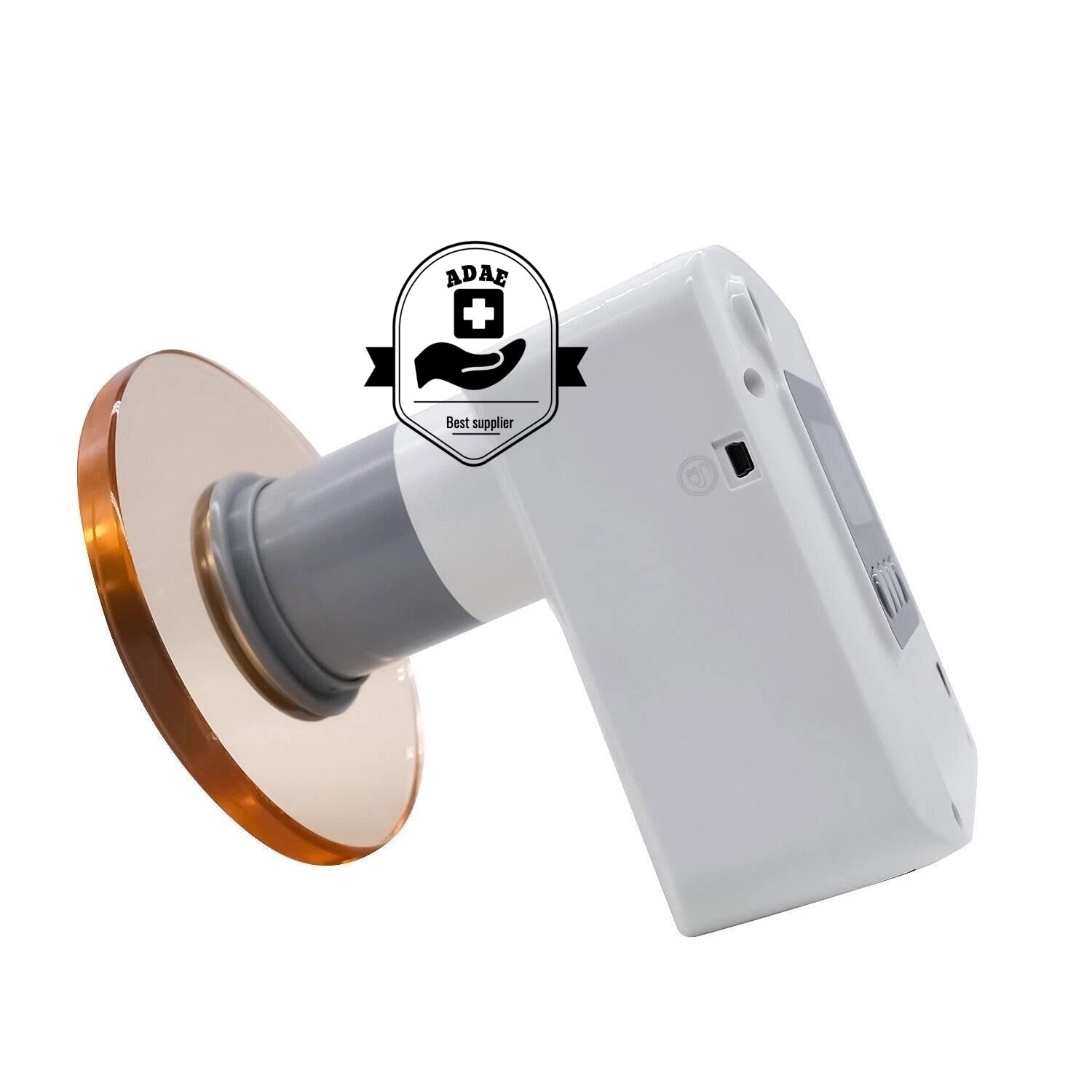

• Safe & Certified: Medical-grade power adapter, safety lock key function, and optional scatter shield upgrade.

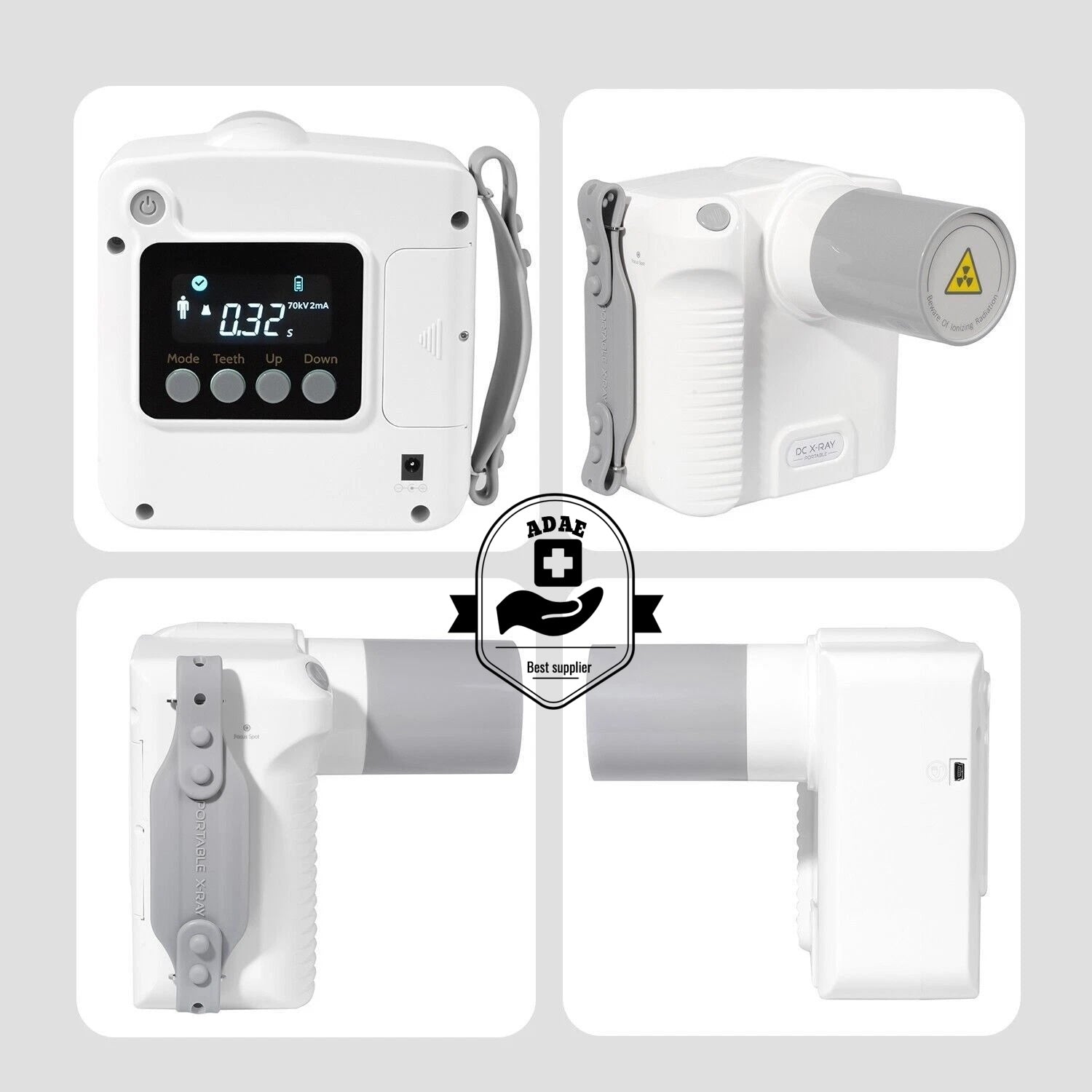

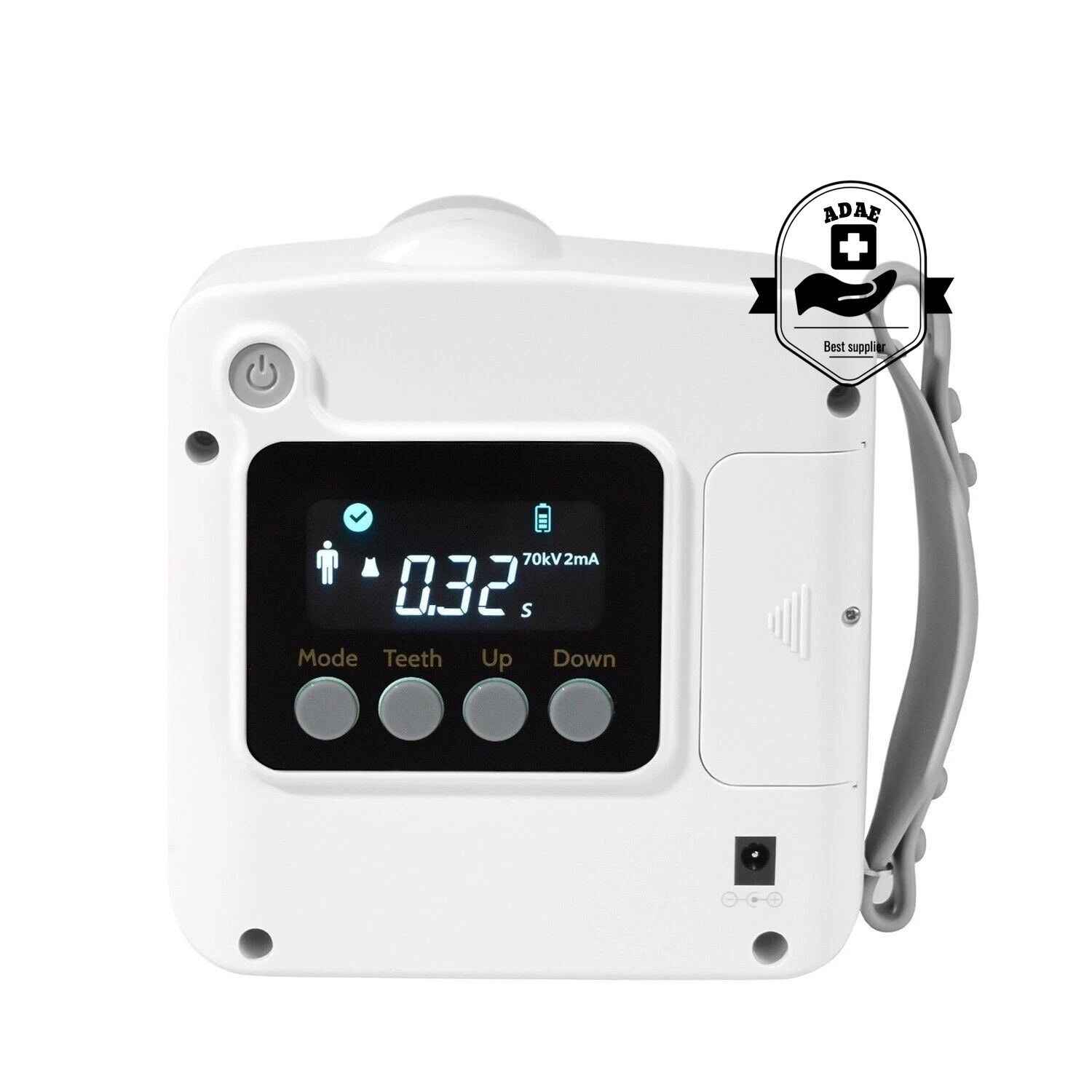

• User-Friendly Operation: Large display, soft keys, ergonomic grip belt design, and optional remote control.

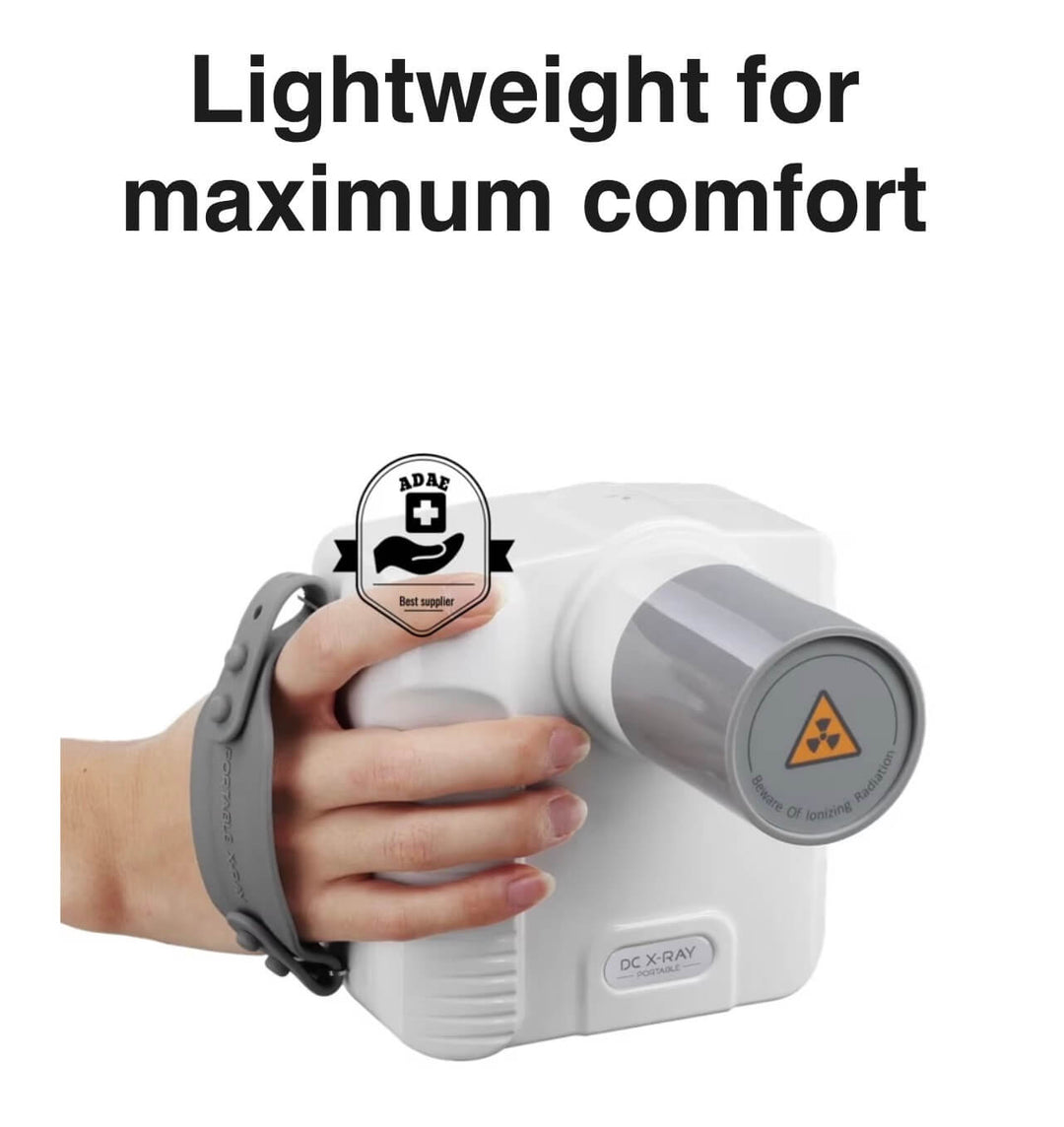

• Compact & Lightweight: Stylish, portable design—only 1.9 kg, easy single-hand operation.

• Energy Saving: Automatic power-off after 30 minutes of inactivity.

• Smart Protection: Intelligent stoppage detection to ensure safety.

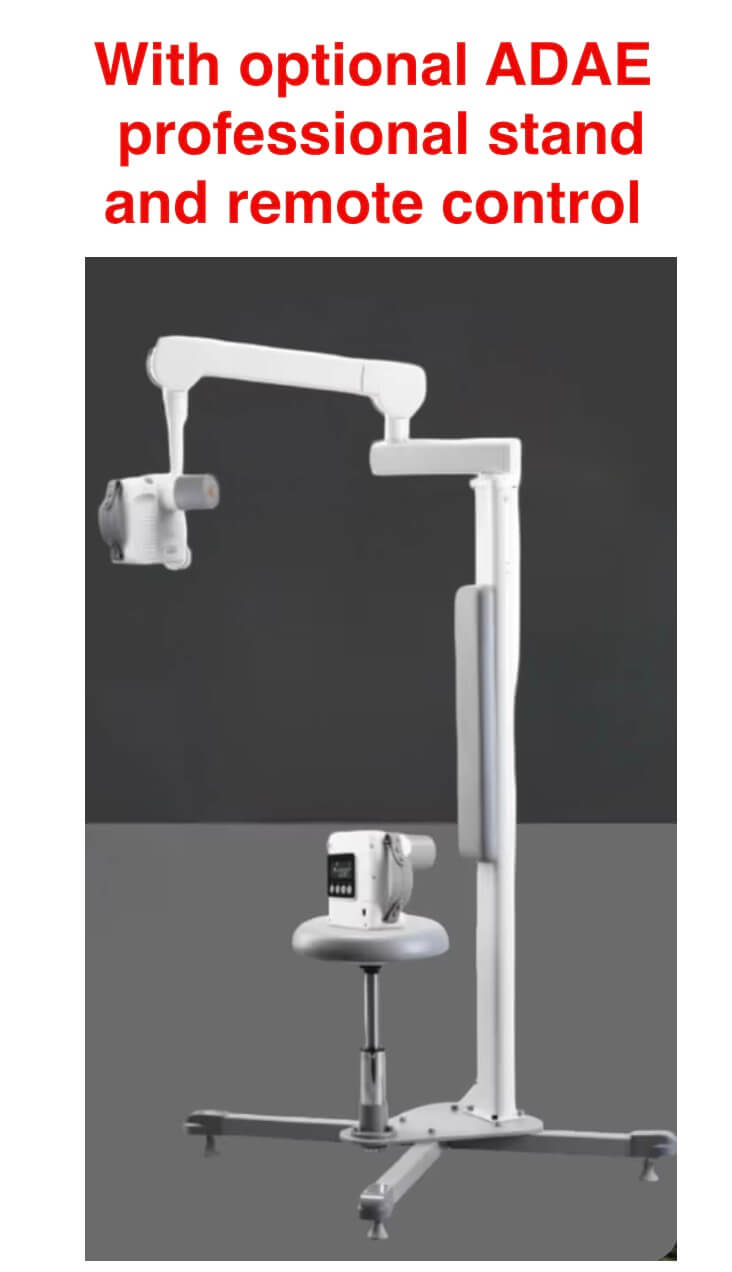

• Flexible Options: Optional mobile stand for regulatory compliance in different regions.

• Trusted Experience: Backed by over 20 years of independent R&D in dental imaging systems.

Technical Specifications

Electrical & Power

• Charger Input: 100–240V, 50/60Hz

• Charger Output: 19V = 3.43A

• Battery Pack: 18650 “3S”, 10.8V = 2500mAh

• Nominal Power: 0.14 kW (70kV, 2mA, 0.1s)

X-Ray Tube

• Tube Model: D-045

• Target Material: Tungsten

• Target Angle: 12.5°

• Focus: 0.4 mm

• Tube Voltage: 70kV ±10%

• Tube Current: 2mA ±20%

• Exposure Time Range: 0.04s–2.0s

Radiation & Filtration

• Dose Rate: 2mGy/s

• Inherent Filtration: 1.0 mm Al @ 70kV

• Additional Filtration: 0.5 mm Al @ 70kV

• Total Filtration: 1.5 mm Al @ 70kV

• Half-Value Layer: ≥ 1.6 mm Al @ 70kV

• Radiation Leakage: ≤ 0.25 mGy/h @ 1m

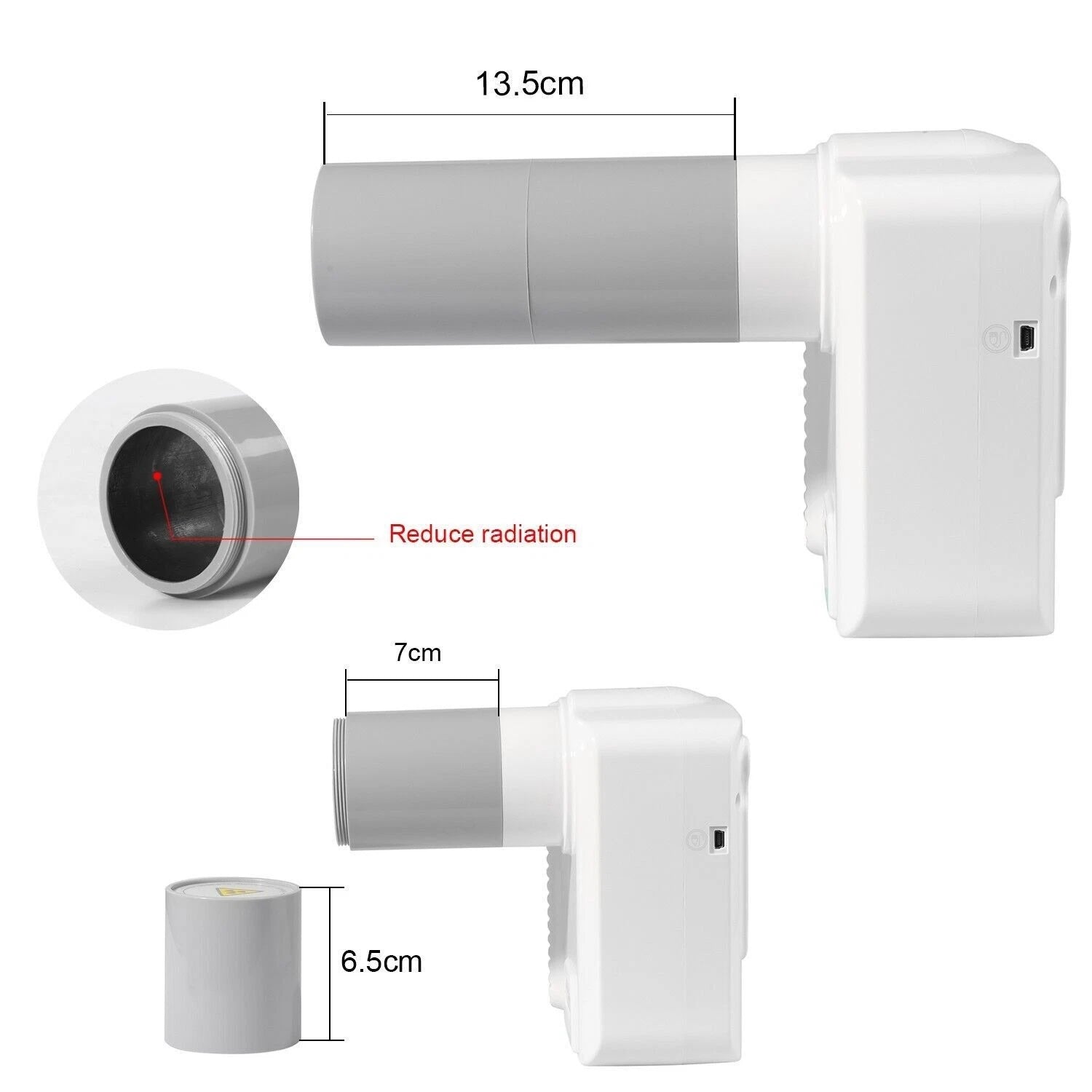

Beam Limiting Device

• Focus-to-Skin Distance: 20.5 cm ±0.5 cm

• Output Field Size: Round, ~6 cm ±0.5 cm

Control System

• Microprocessor-Controlled

• Exposure Modes: Child (small), Adult (large), Tooth type options

• Handheld Switch: 3m spring cable, installable at a distance

Operating Environment

• Working Temperature: 10°C – 40°C

• Humidity: 30% – 75% RH

• Atmospheric Pressure: 700 – 1060 hPa

Storage & Transportation

• Temperature: –20°C to 55°C

• Humidity: 10% – 85% RH

• Pressure: 700 – 1060 hPa

• Store in indoor, ventilated, non-corrosive environment.

Weight

• Total Weight: 1.9 kg

• Tube Head Assembly: 1.1 kg

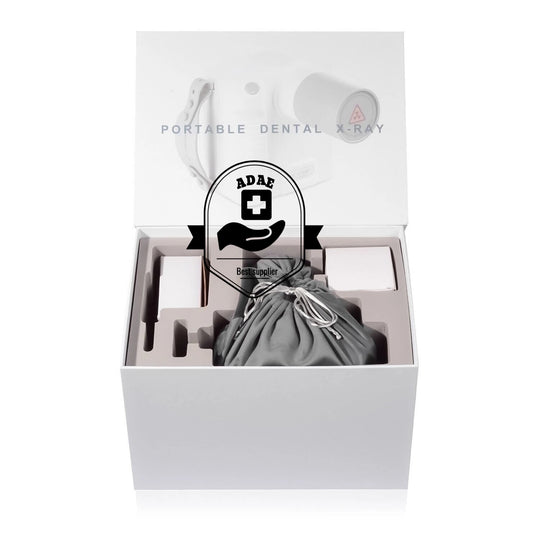

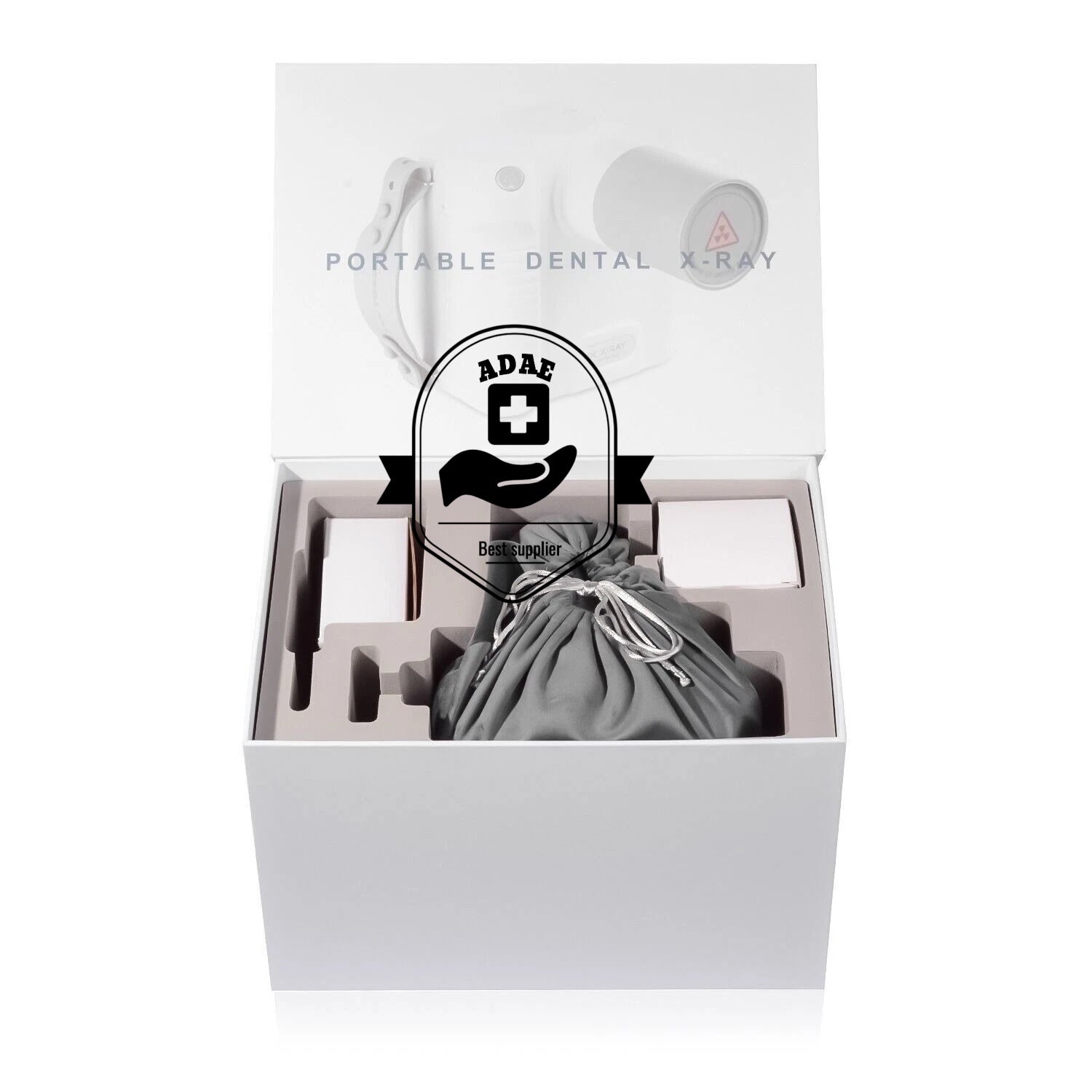

Packaging List

• Main Unit × 1

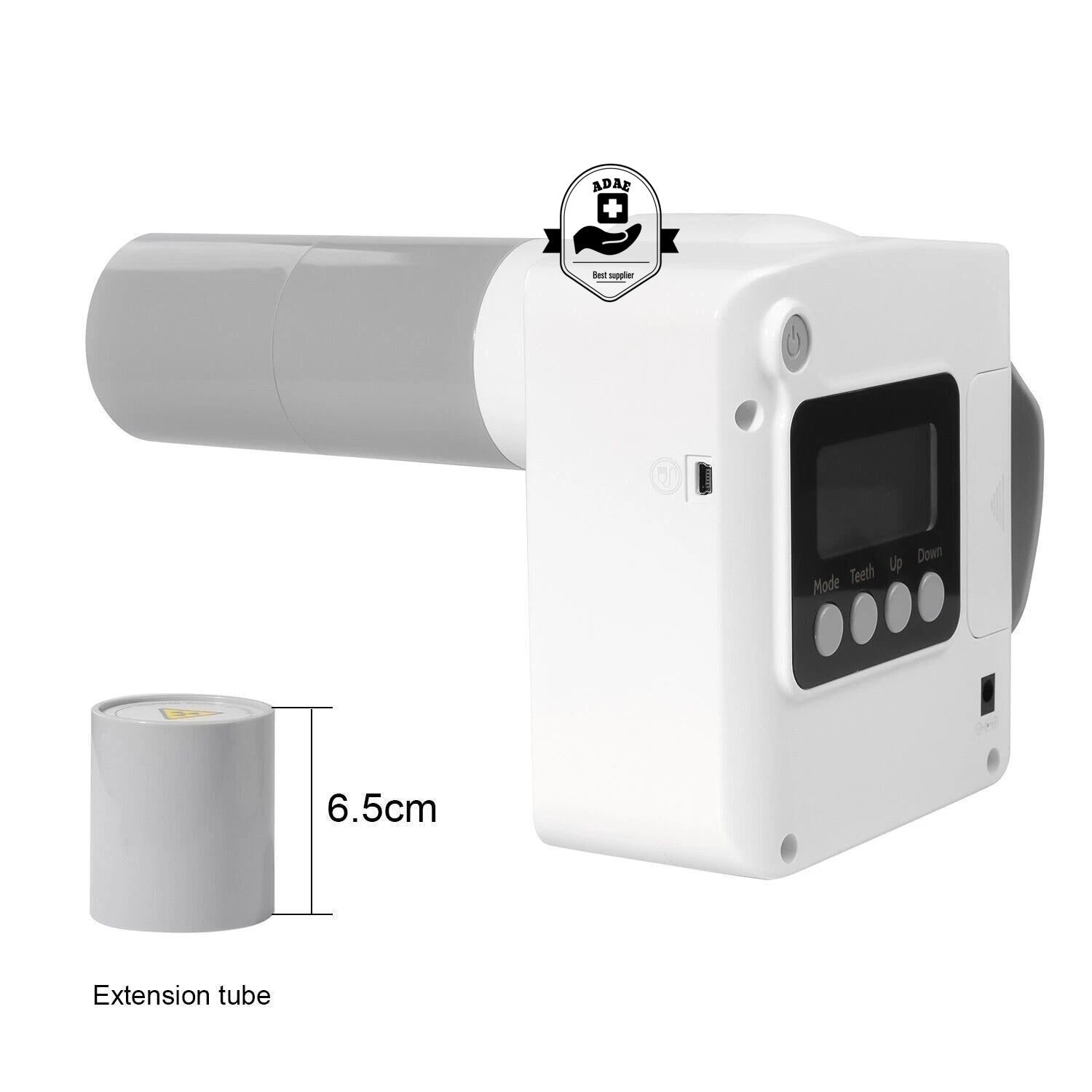

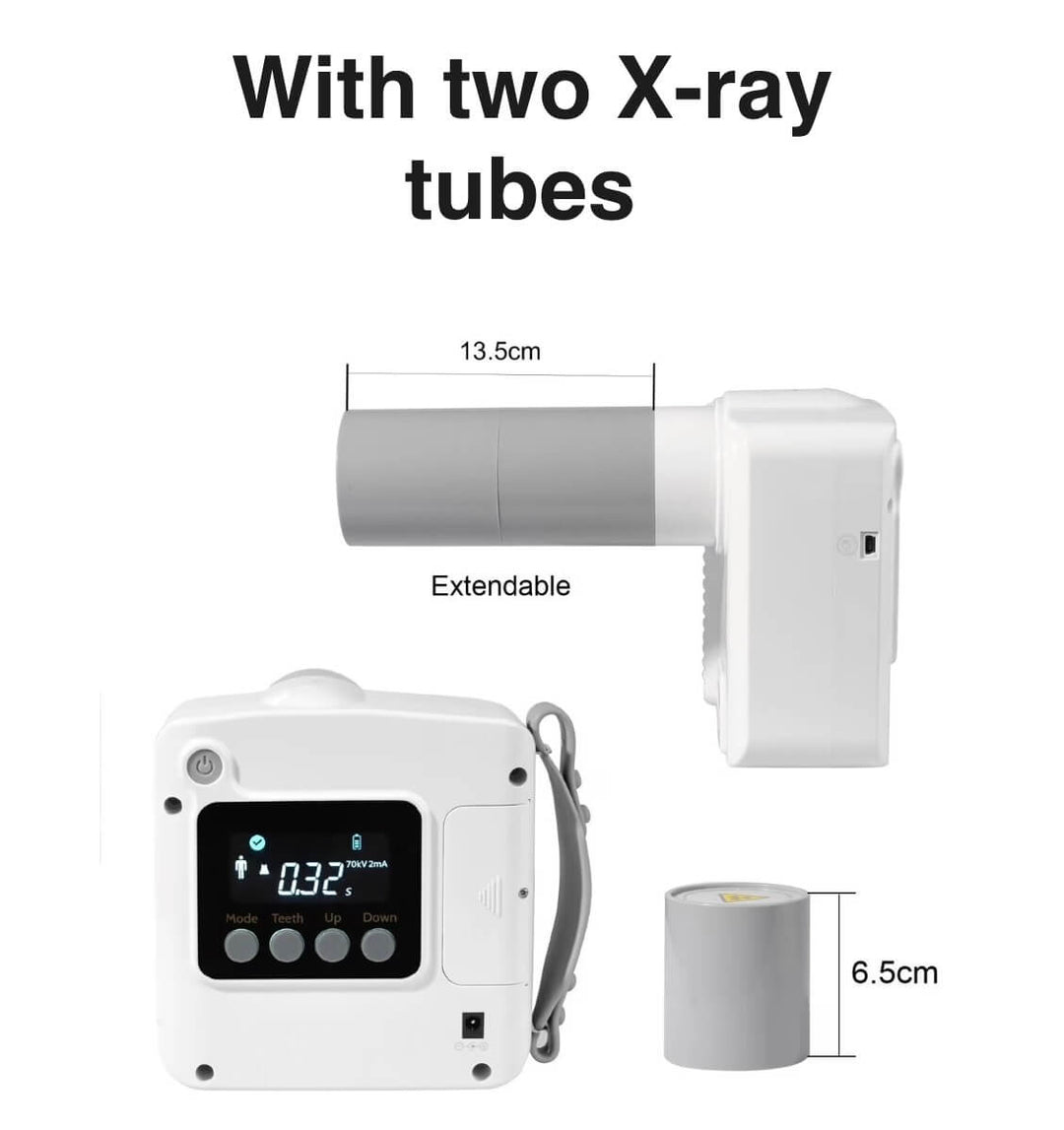

• X-ray tubes × 2

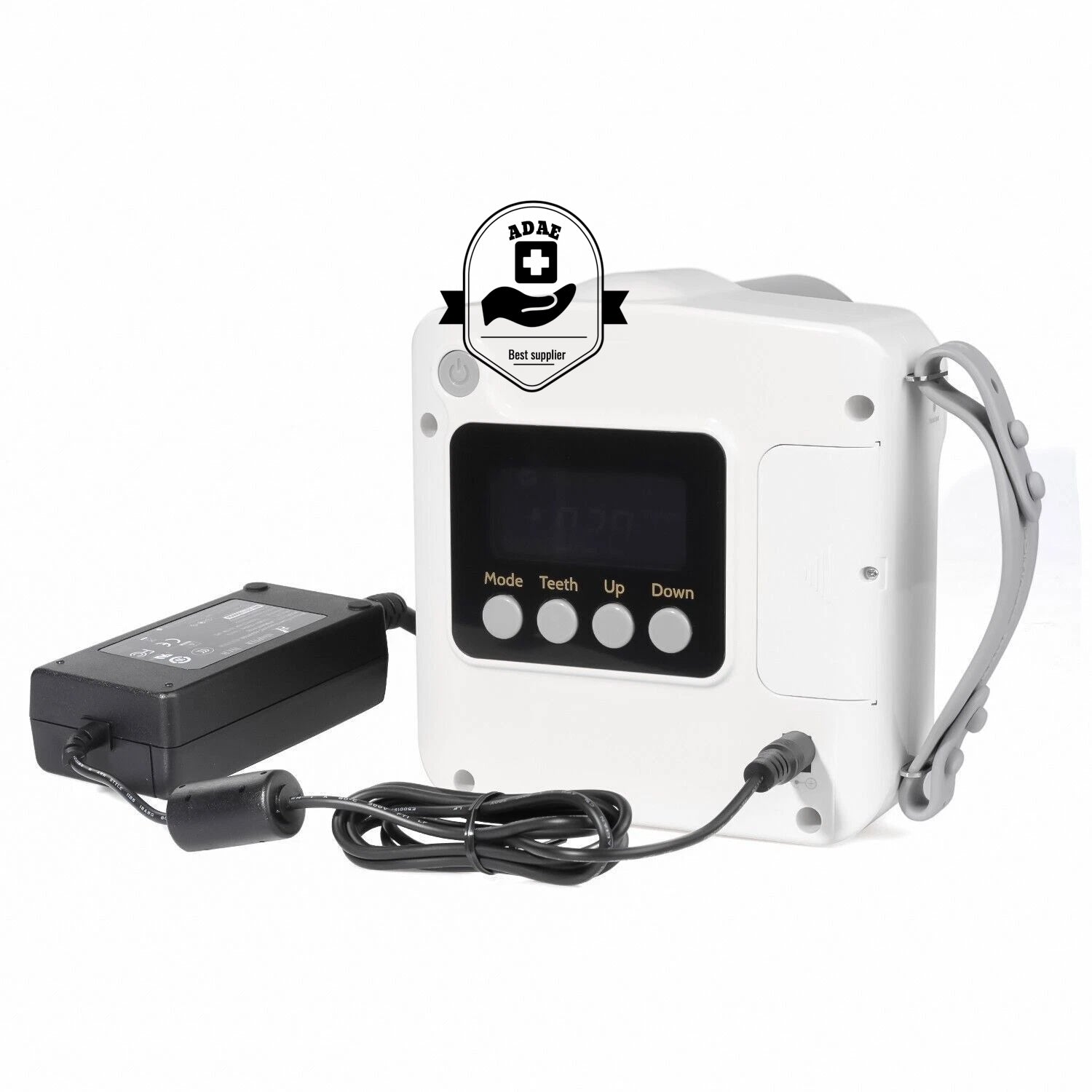

• Adaptor × 1

• Power Line (2m) × 1

• English Manual × 1

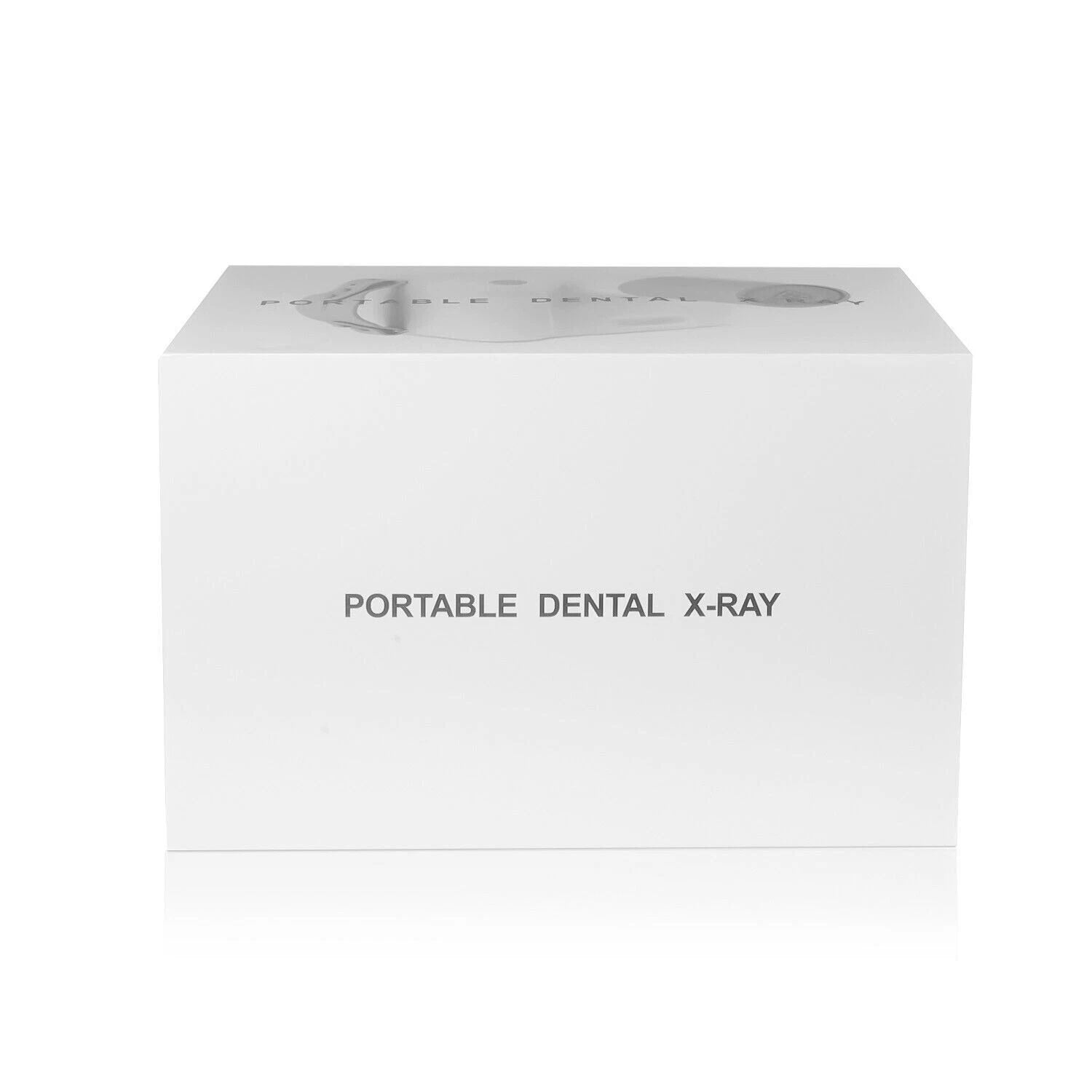

• Packing Box × 1

• Optional: Mobile stand and remote control.

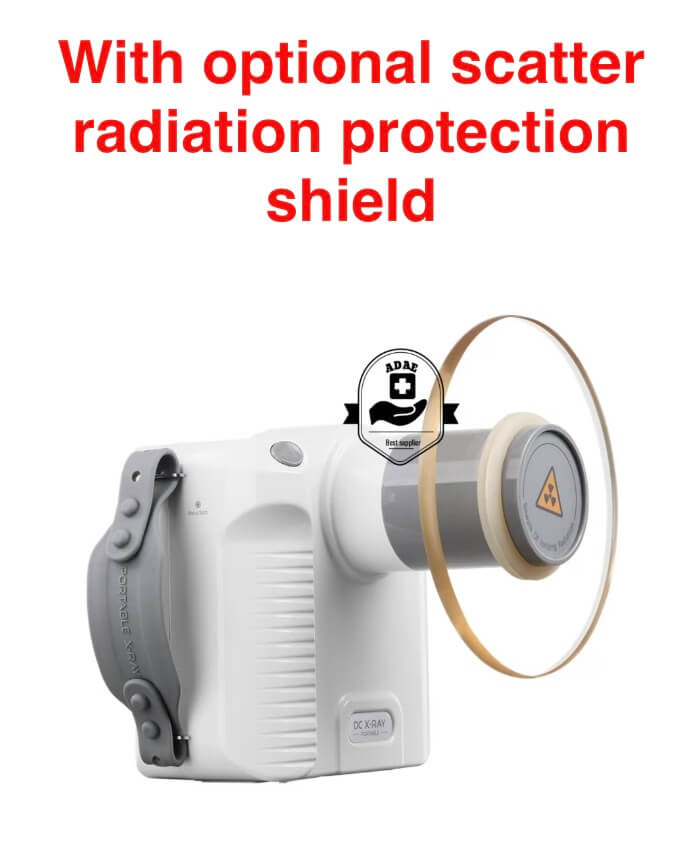

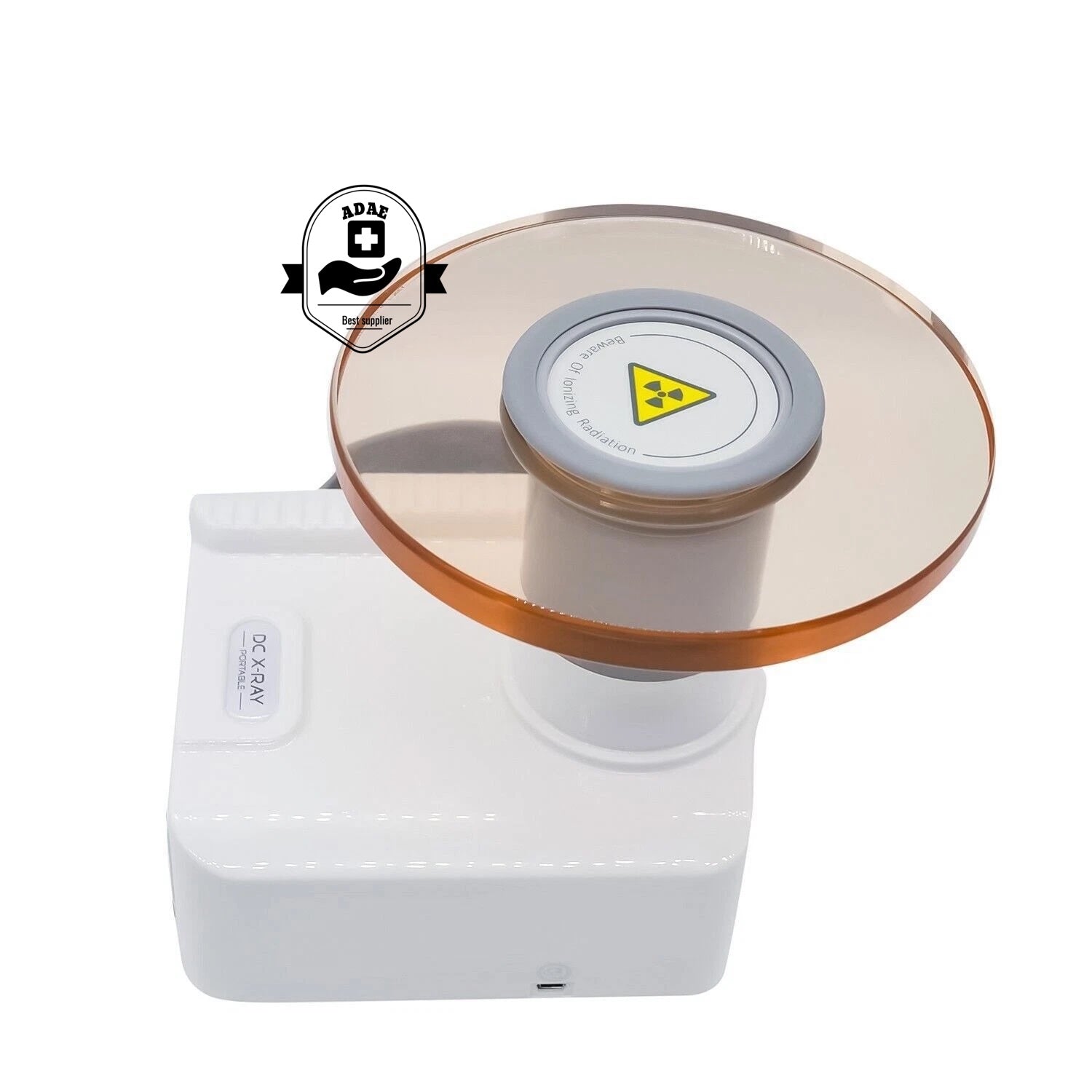

• optional scatter radiation protection shield.

Warranty

• One Year Warranty
