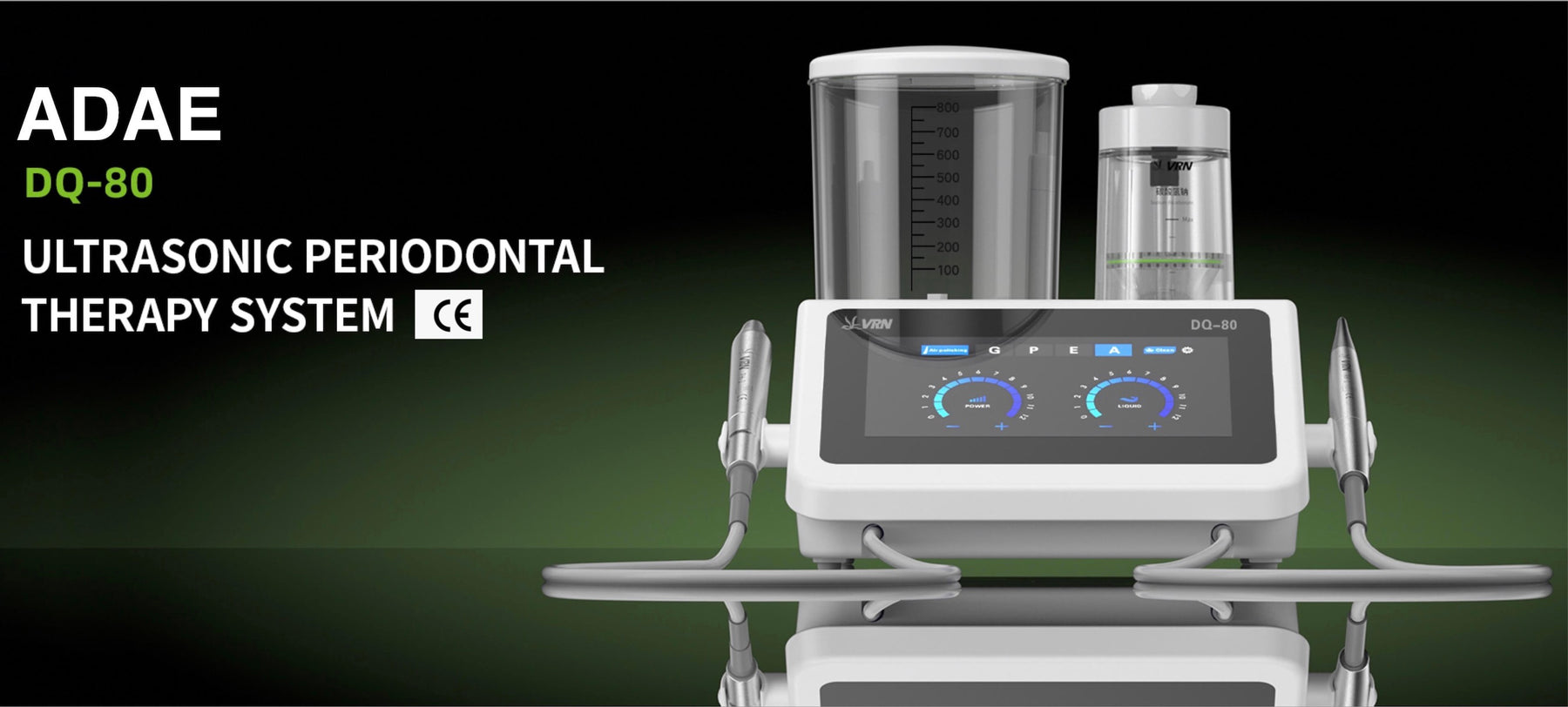

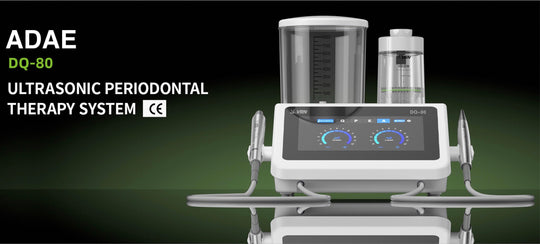

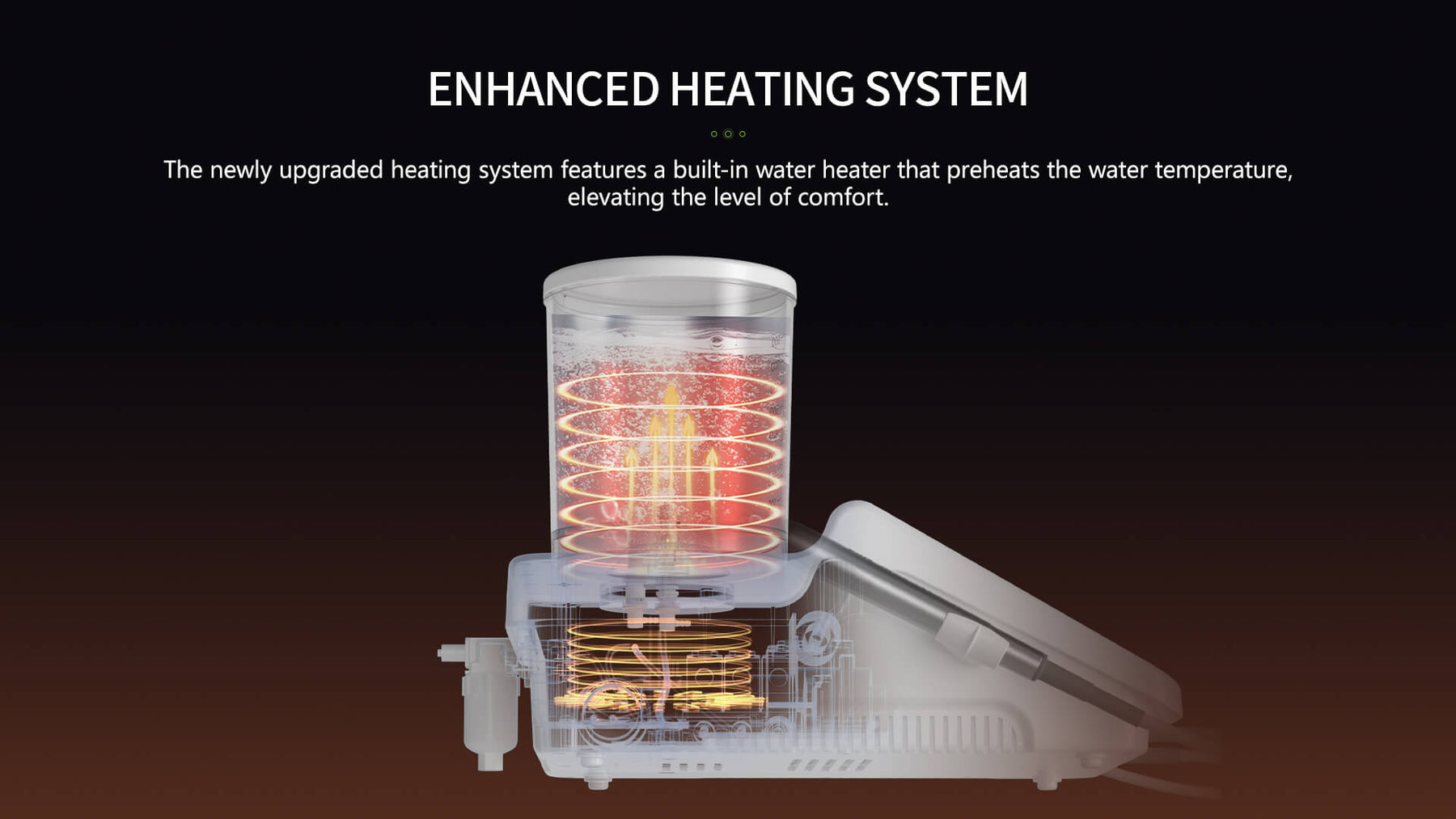

ADAE VRN-DQ80 Dental Scaler and Air Polisher with Heating System
Technical parameters
-
Model: DQ-80
-

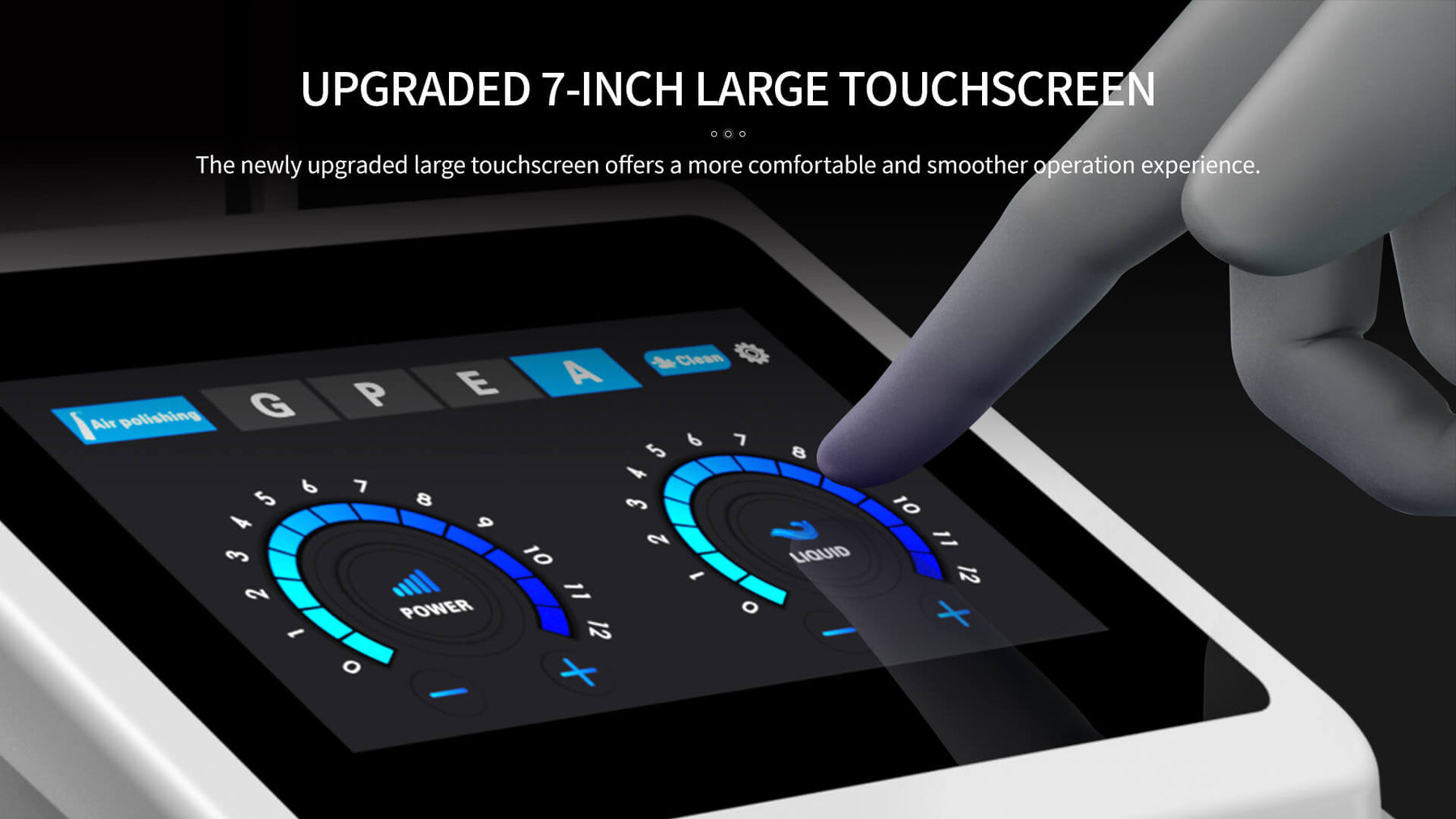

Control: Seven-inch touch LCD screen
-

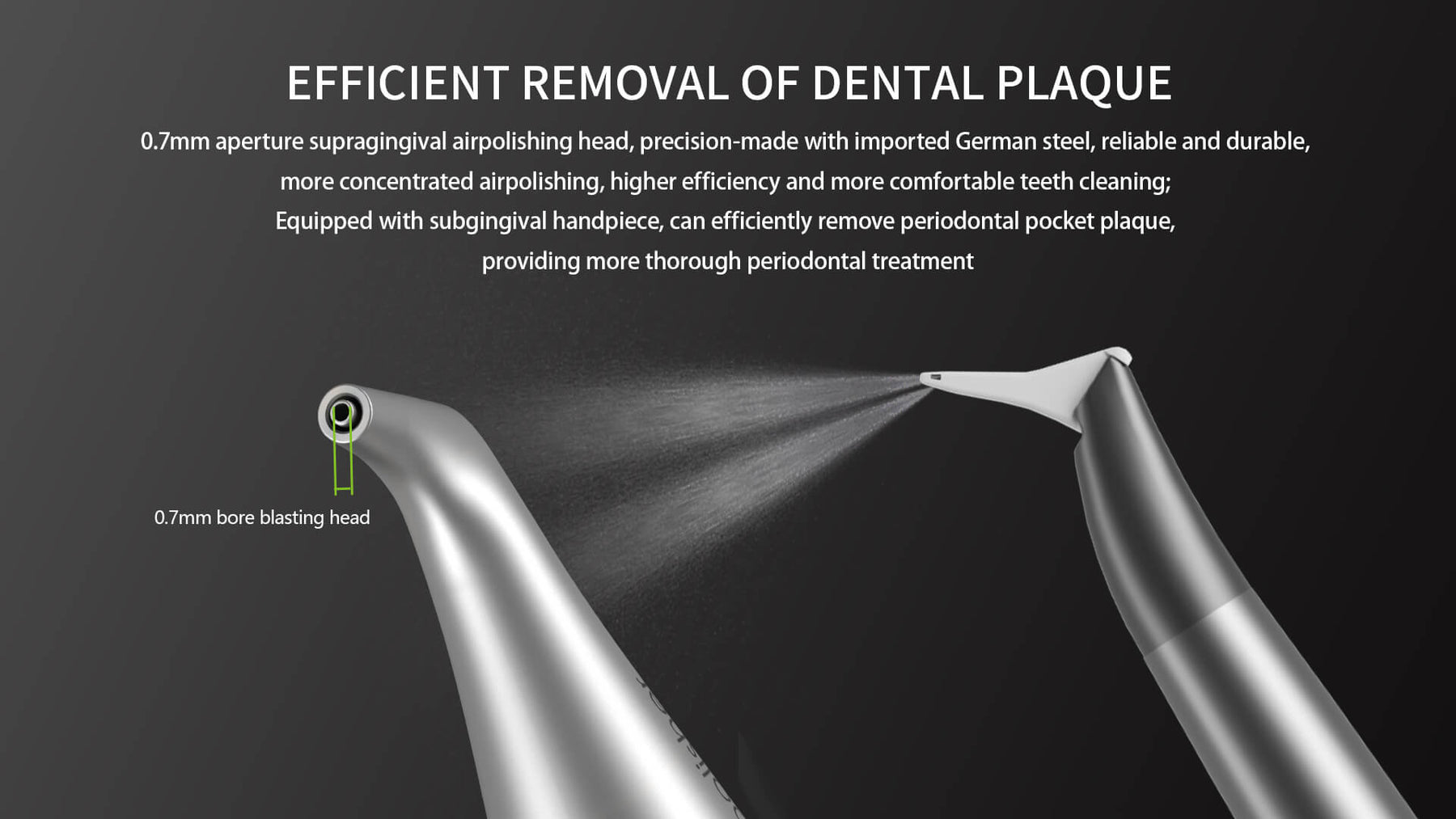

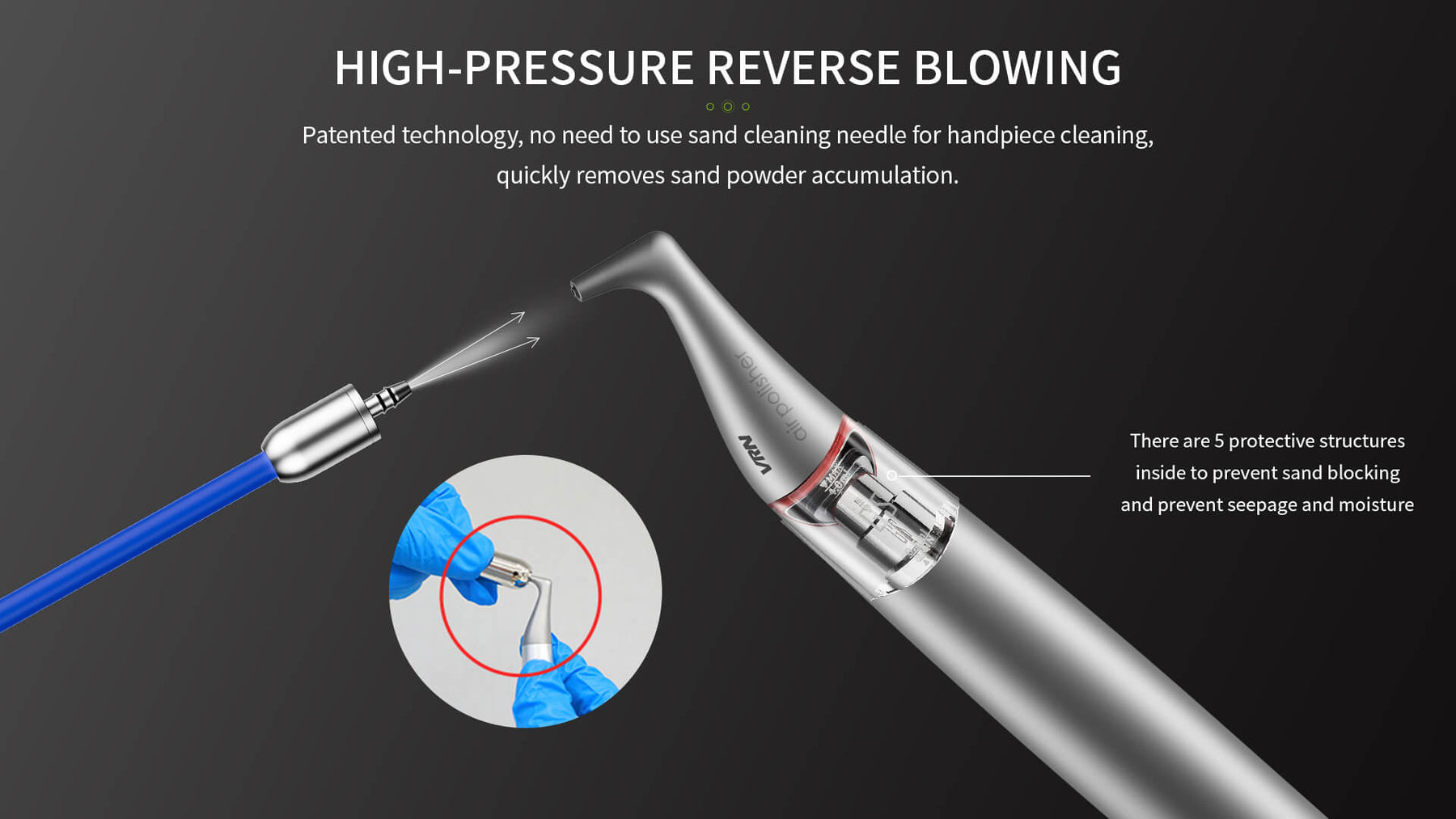

Handpiece: LED Detachable Piezo Handpiece PH-2 ×2, Sandblasting Handpiece AH-1 ×2, AH-2 ×1
-
Operating Mode: G/P/E/A/C
-
Water Tank: 800mL ×1
-
External Water Hose: Unavailable
-
Power Input: 110V-220V. 50Hz/60Hz
-

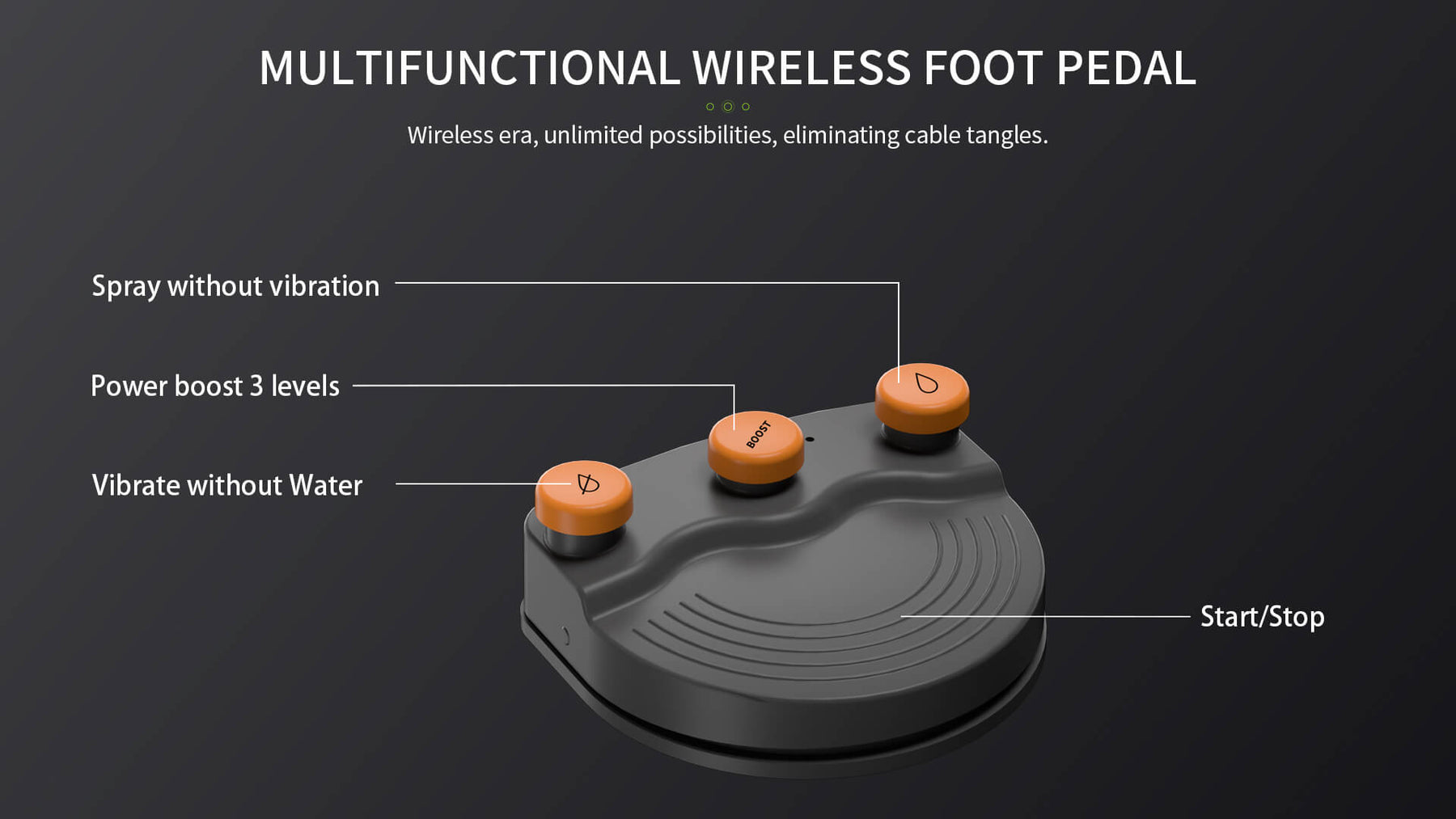

Foot Pedal: Wireless Foot Pedal (IPX4) ×1, Wired Foot Pedal (IPX1) ×1
-

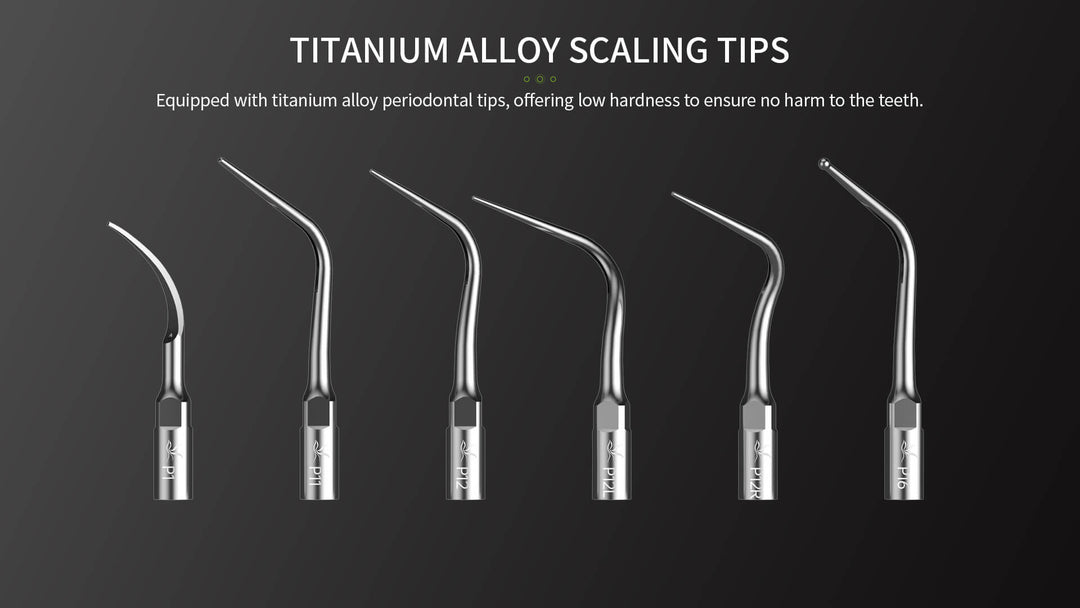

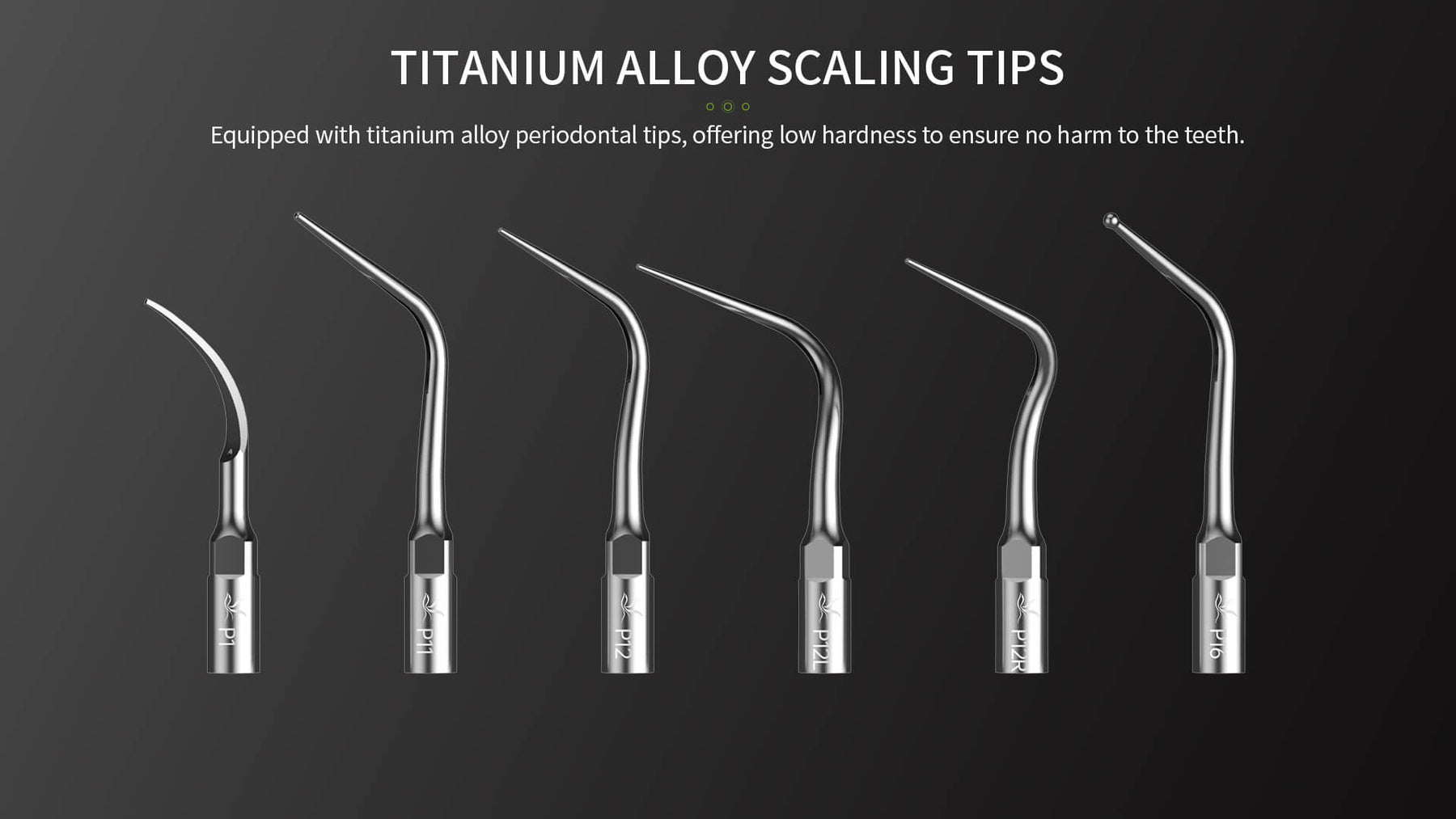

Scaler Tips: E1 ×1, P12R ×2, IM1 ×1, P16 ×2, P11 ×2, P12 ×2, P12L ×2, G5 ×1, P1 ×6, G1 ×1 (10 pcs in total)
-
Sterilization Box: 2 Sets
-

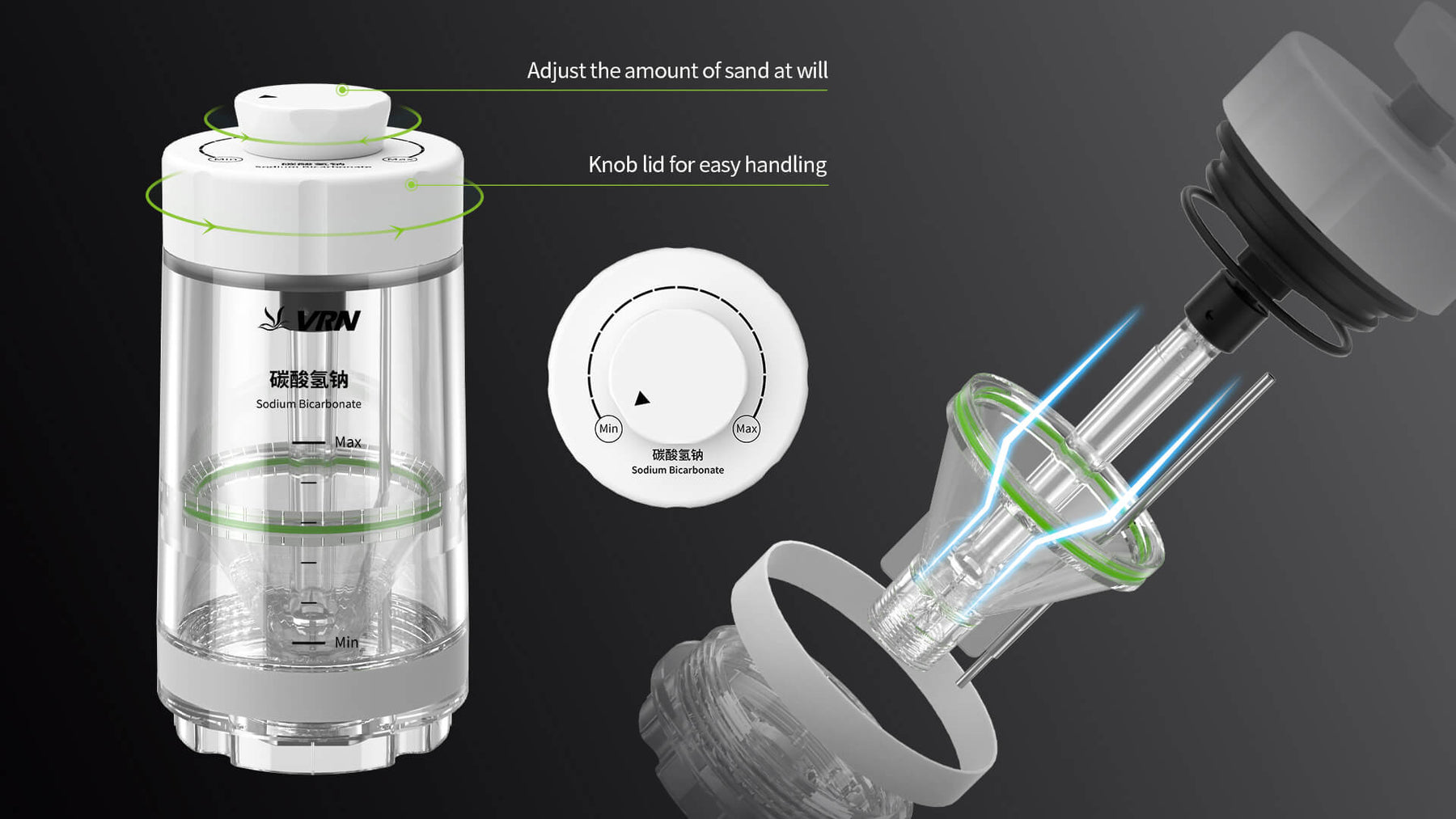

Powder Tank Components: 2
-
Small Cart: Optional
-
Weight: 6.5kg
-
Input Voltage: 230VAC 50Hz
-
Input Power: 100VA
-

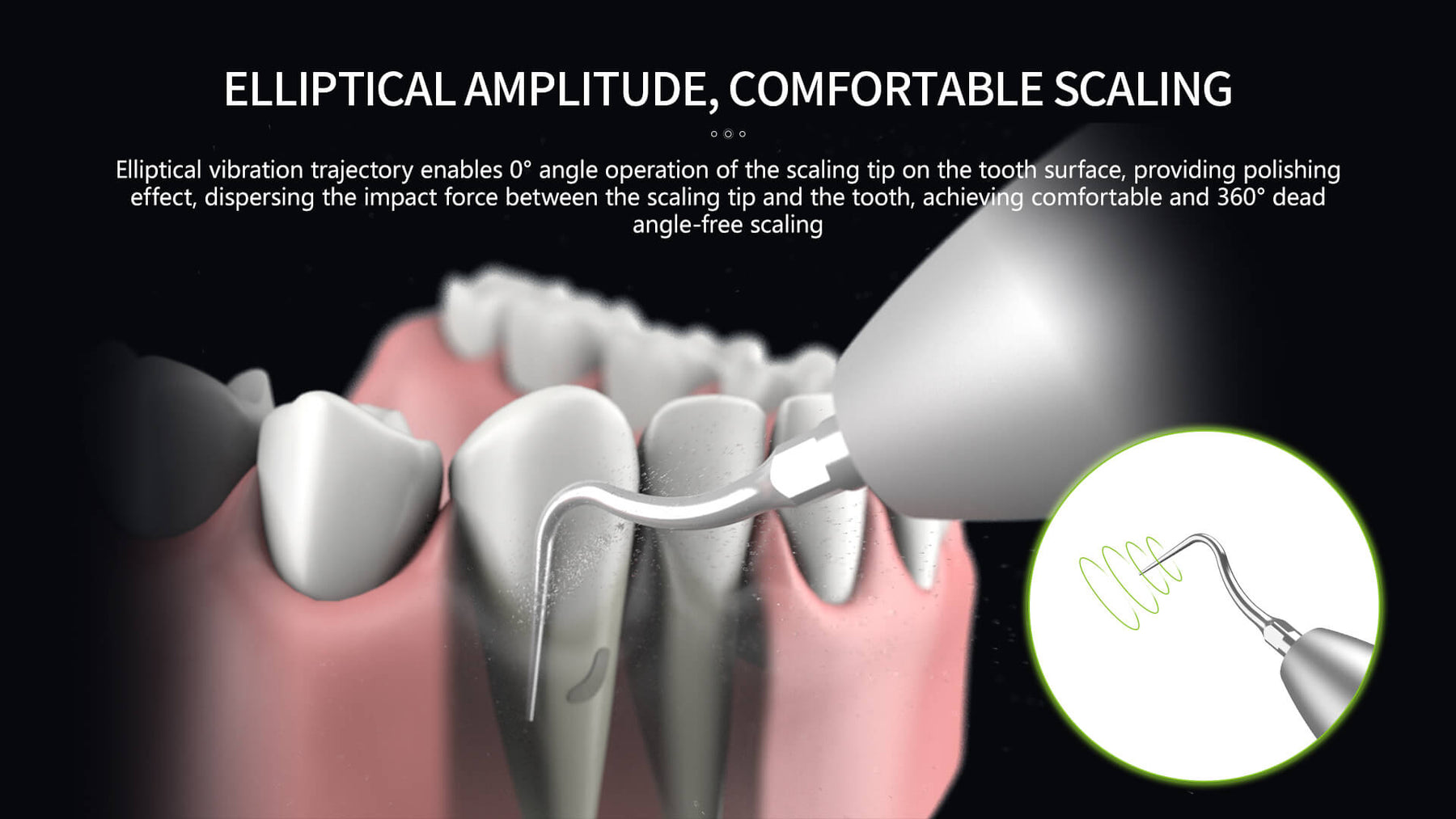

Vibration Amplitude: Minimum 1 μm; deviation -50%, Maximum 100 μm; deviation +50%
-
Output Half-Excursion Force: Minimum 0.1 N; deviation -50%, Maximum 5 N; deviation +50%
-
Water Pressure: 0.01MPa～0.5MPa (0.1bar～5bar)
-
Compressed Air Supply: 5bar～6bar（0.5 MPa～0.6 MPa）
-
Frequency: 25kHz～35kHz
-
Tips Hardness: 50HRC
-
Packing Size: 310×370×200mm
-
Storage Environment: Temperature -20℃～55℃, Relative humidity ≤90%, Atmospheric pressure 70kPa～106kPa
-
Working Environment: Ambient temperature 5℃～40℃, Relative humidity ≤80%, Atmospheric pressure 70kPa～106kPa, Temperature of cooling liquid 5℃～25℃
-
Life Time: 10 years
-
Handpiece Can Be Sterilized: 134℃ and 0.22 MPa pressure

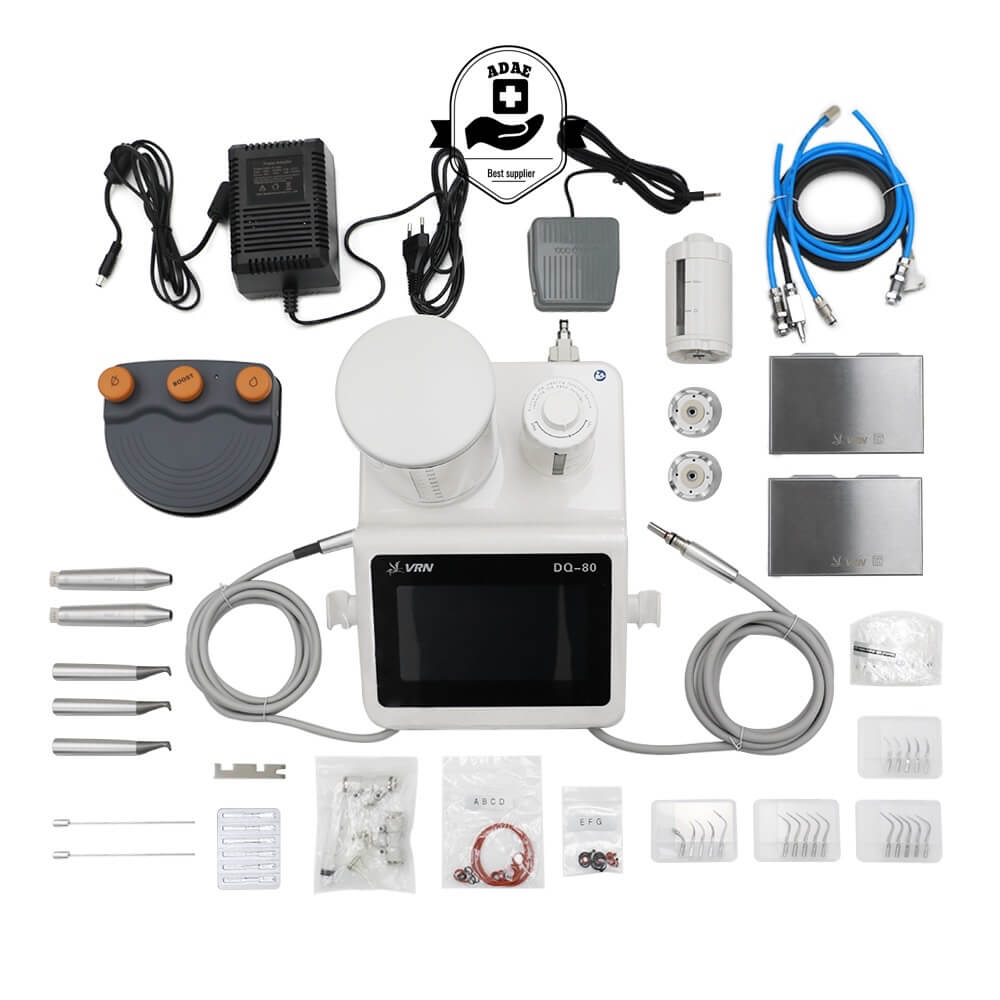

Accessories included
Warranty
One year
