ADAE professional dental microscope with HD1600 (Upgraded version)
- In stock, ready to ship

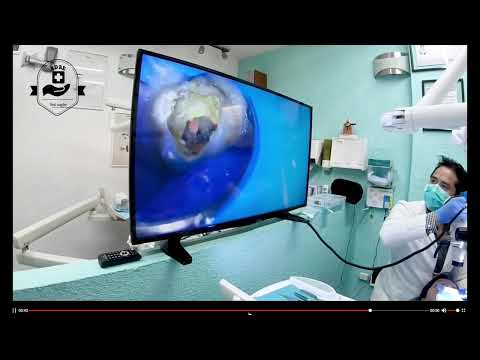

Watch the video below for quick view

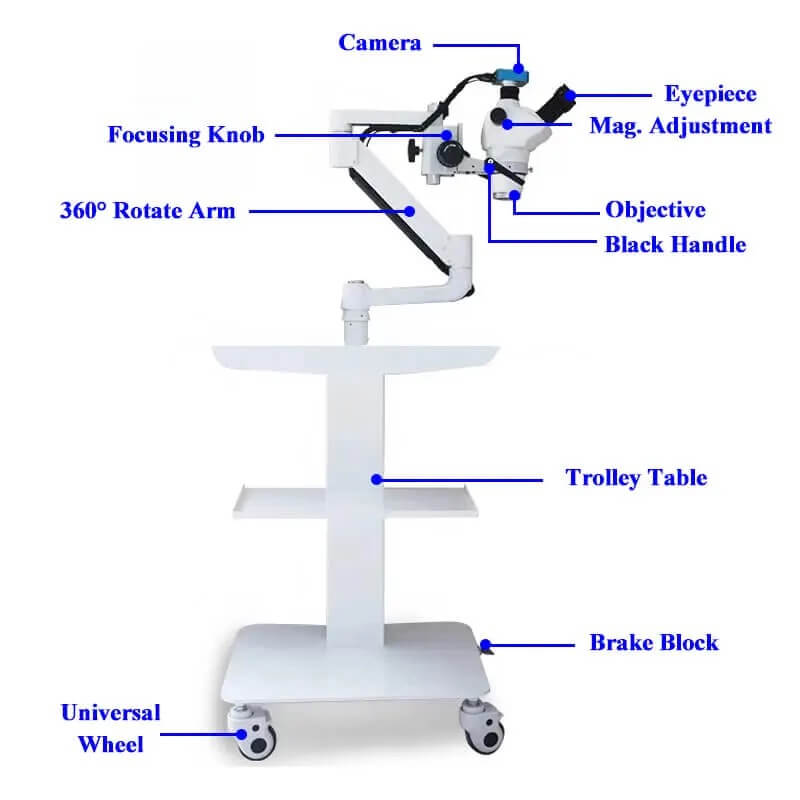

Main features of microscope
- Super long working distance, for any directions
- Wide field of view, clear imaging and strong stereo sensation
- WF 10X Eyepiece
- 0.65X-5.5X objective, ratio: 1:8.5
Specifcations

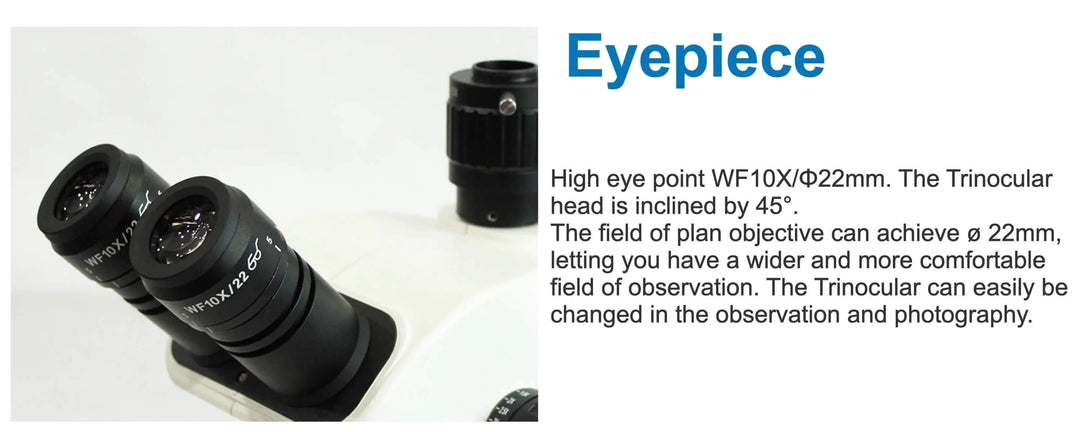

- Eyepiece:High eyepoint WF10X/Ø22mm.

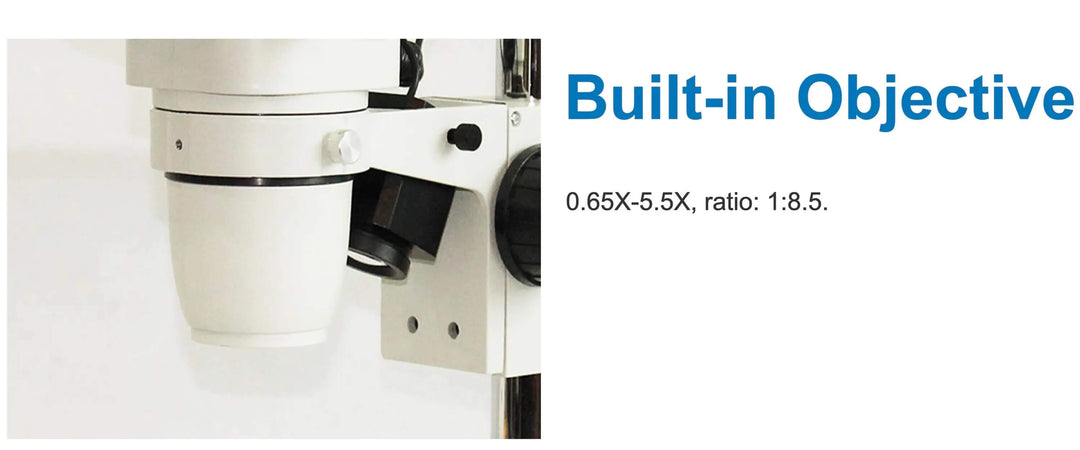

- Objective:0.65X-5.5X, ratio: 1:8.5.

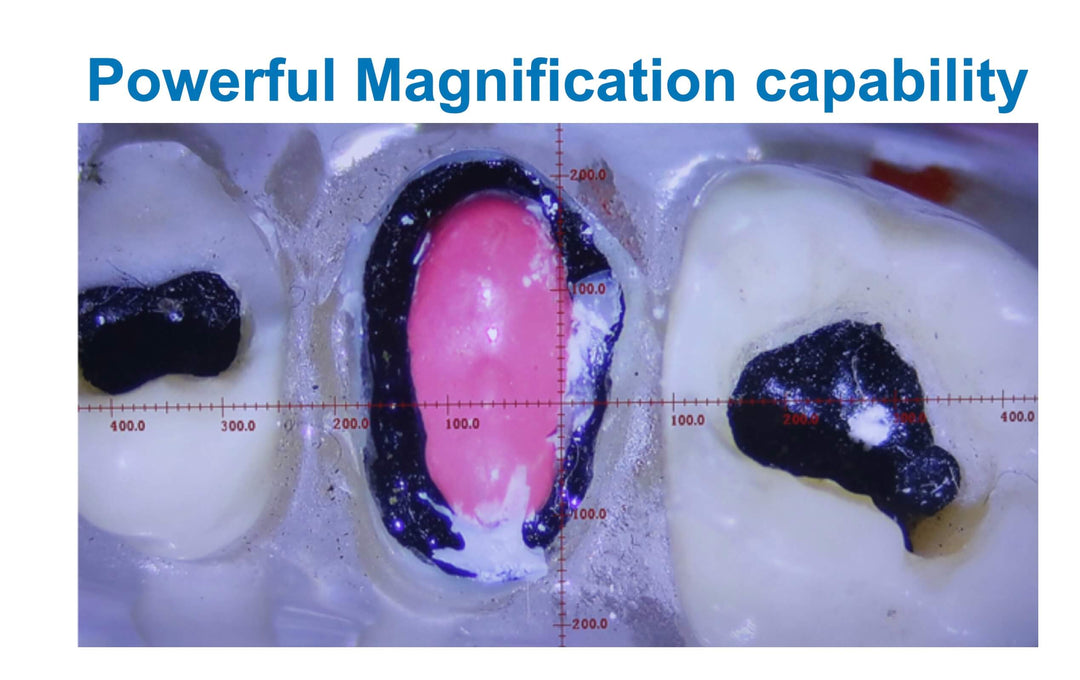

- Total Magnifiction :Standard:6.5X-55X
(Optional Aux.0.5X, 2X)
3.3X-220X with optional 20X eyepiece. - Head:Trinocular, inclined 45°, rotatable 360°, Diopter adjustment: ‡5 diopters.
- F.O.V: 40-31.4mm.
- Interpupillary Distance:54-75mm.
- Working Distance: 105mm.

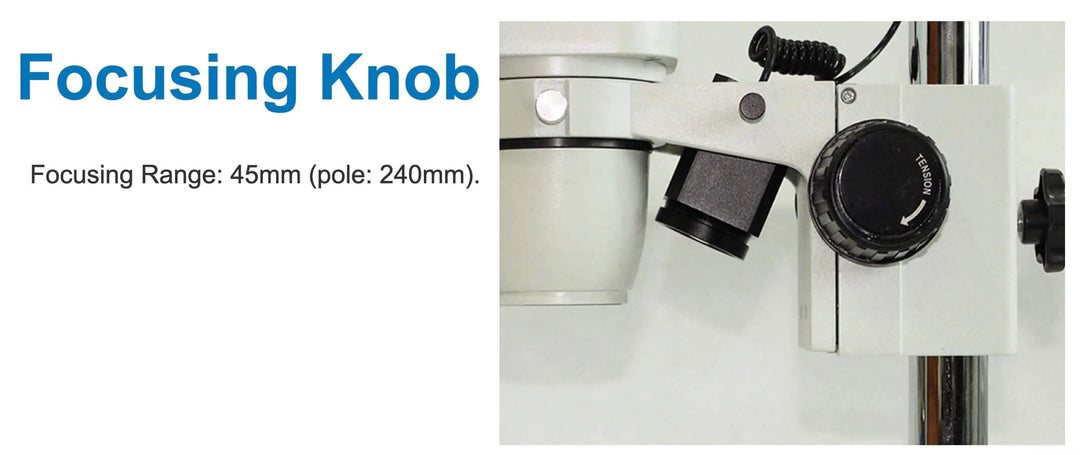

- Focusing Range: 45mm (pole: 240mm).
- Illuminator: LED Ring Light.

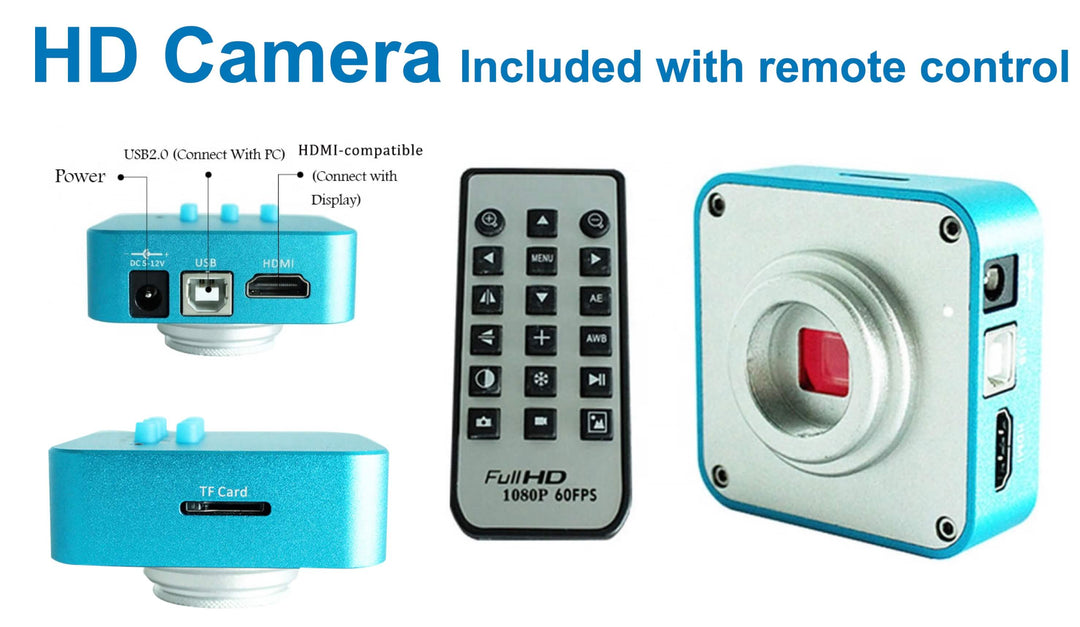

Specification of camera
- Adopt 16MP Panasonic CMOS Sensor
- Adopt 1/2.33” Sensor, more wide view field
- HDMI 1080P 60 FPS
- USB2.0 free drive 1080P 30FPS Image Output
- 4K Video Record
- One push freeze/ defrost function, digital scaling function
- Supplying manual/ auto / one push exposition, exposure compensation adjustable.
- Supplying manual/ auto / one push white balance, R, G, B adjustable.
- Supplying 8 draw lines function, color, thickness, position adjustable.
- Center cross lines display/ close.
- Providing TF Card for saving, 64GB(max).
- With remote control.
- Providing data will be saved after closing the camera.
- Solid Metal Shell.
- Input voltage: DC 5V~12V
Packing list
- Microscope Head 1 Pc.
- Eyepiece WF10X 1 Pair.
- Built-in Objective 0.65X-5.5X 1 Pair.
- Microscope Camera HD1600 1 Pc.
- Camera Adapter 1 Pc.

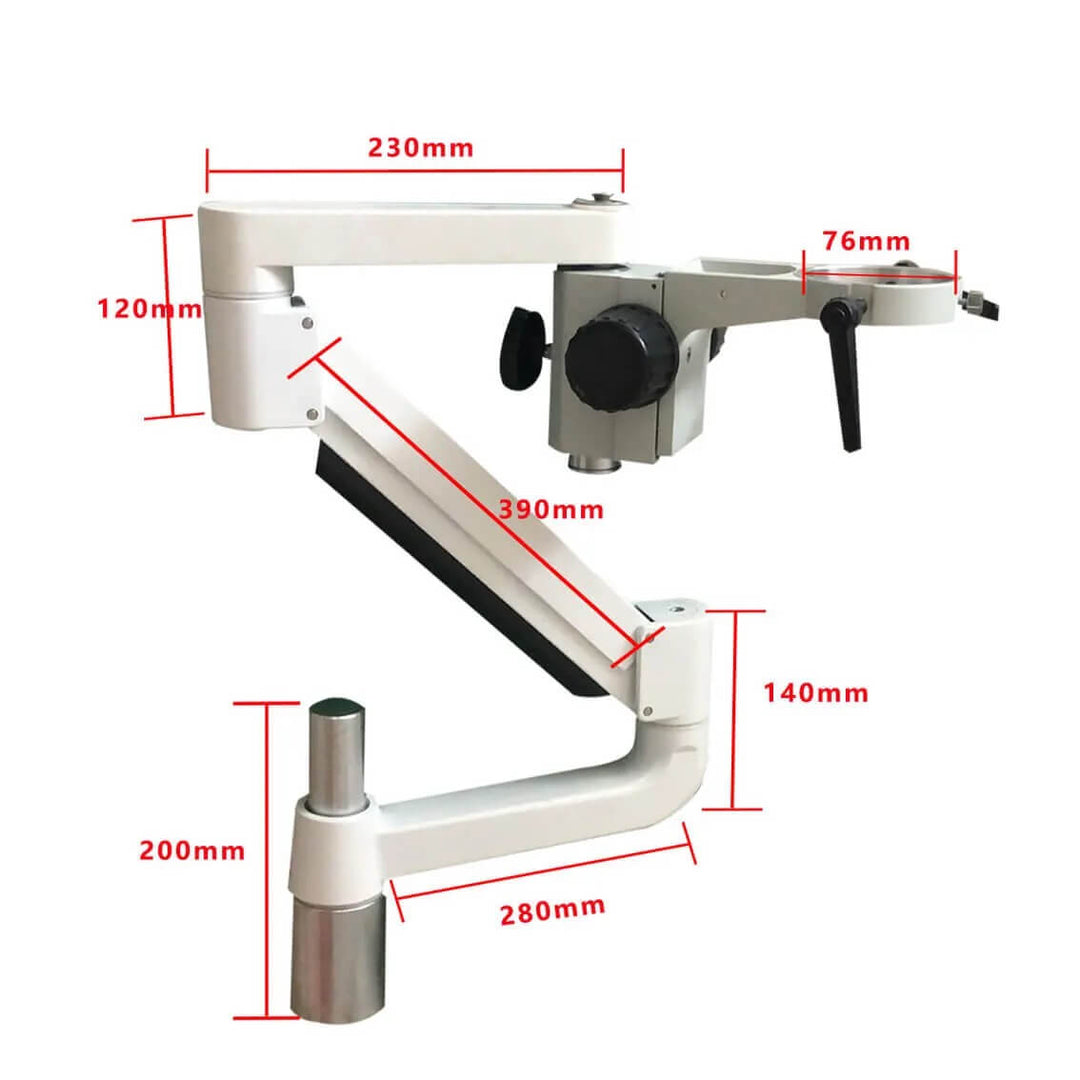

- Arm Mounting Support 1 Pc.
- Spot Light, LED Ring Light ( One Pc for each).
- Power Cord 2 Pcs.
- Operation Manual 1 Pc.
Warranty
One year.

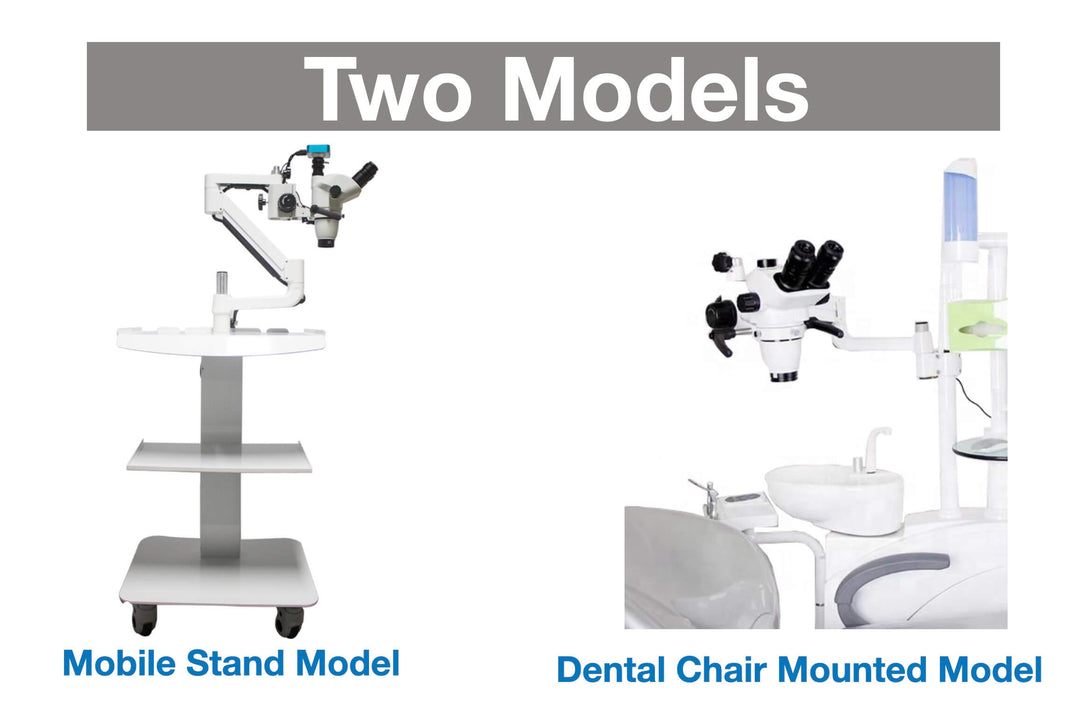

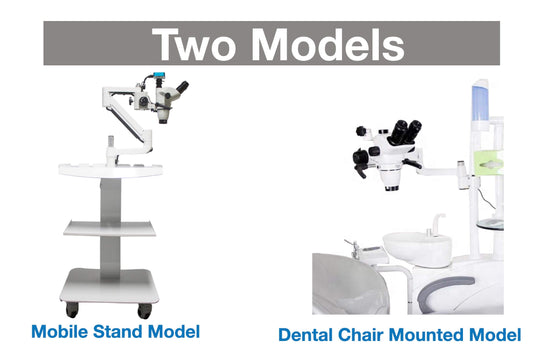

Two models

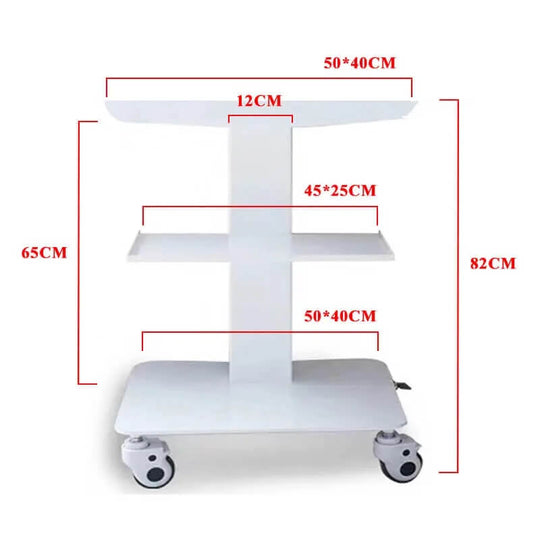

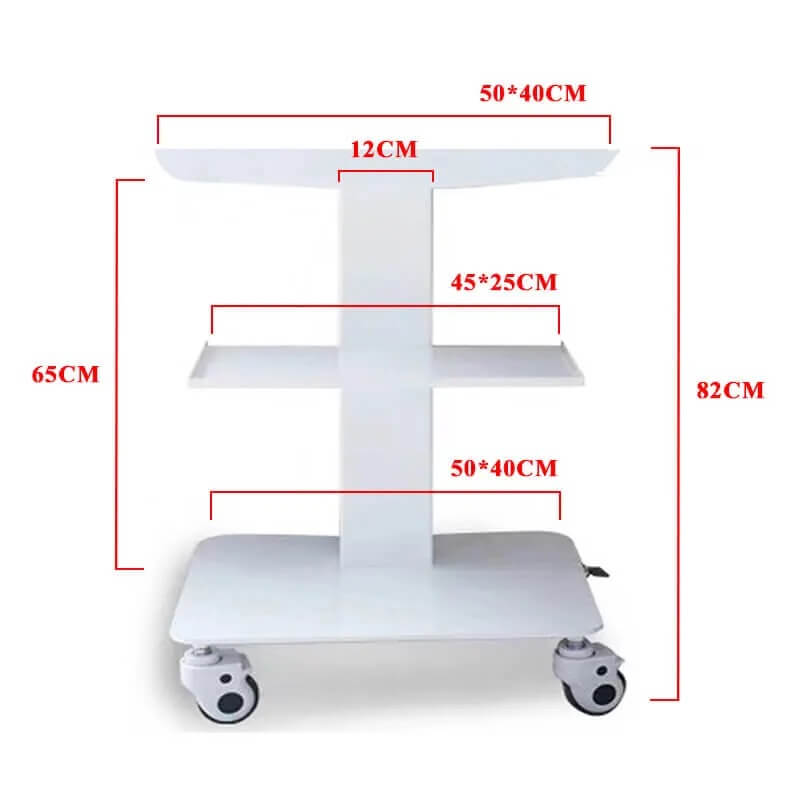

Dental chair mounted and mobile stand models

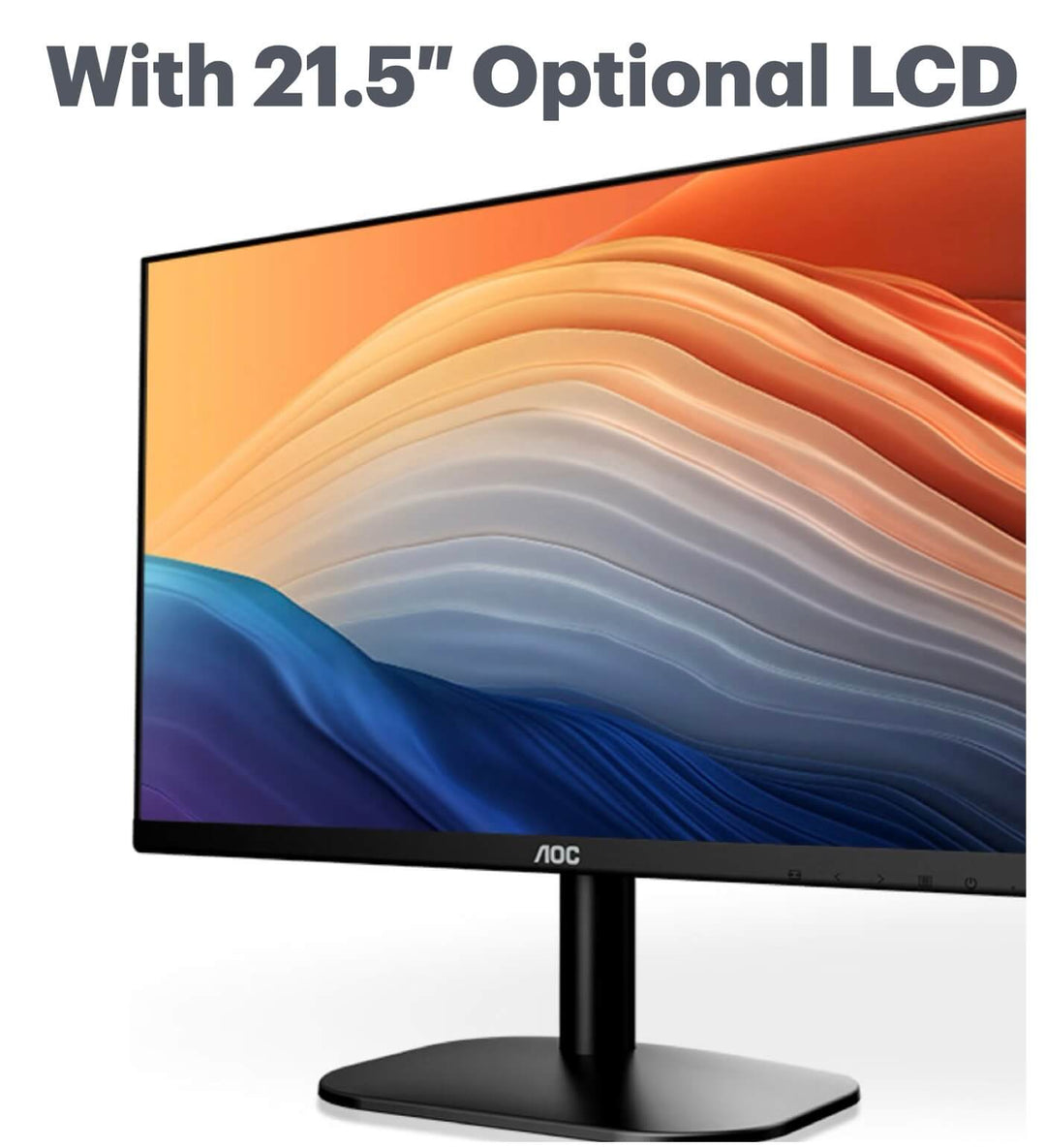

Specfications
- Main body: Certification model 22B2
- Screen size: 21.5 inches
- Model: 22B2HN
- Color: Black
- Display brightness: 250cd/㎡
- Dot pitch: 0.24825mm
- Stand base: Normal
- Product net weight: 2.29kg
- Built-in speaker: No
- Power type: External power adapter
- Power voltage: 110-V220V, 050Hz-60Hz
- Wall-mounted specifications: 100x100mm
Product Size
- Wall-mounted specifications: 100x100mm
- Product Size
- Length: 492.8mm
- Width: 162.9mm
- Height: 388.1mm
- Packing List
- LCD monitor ×1
- Simple manual ×1
- Warranty certificate ×1
- Monitor base/stand ×1
- Power adapter ×1
- D-SUB signal cable ×1
Packing list
- LCD monitor ×1
- Simple manual ×1
- Warranty certificate ×1
- Monitor base/stand ×1
- Power adapter ×1
- D-SUB signal cable ×1
Warranty
One year.
