Technical Specifications

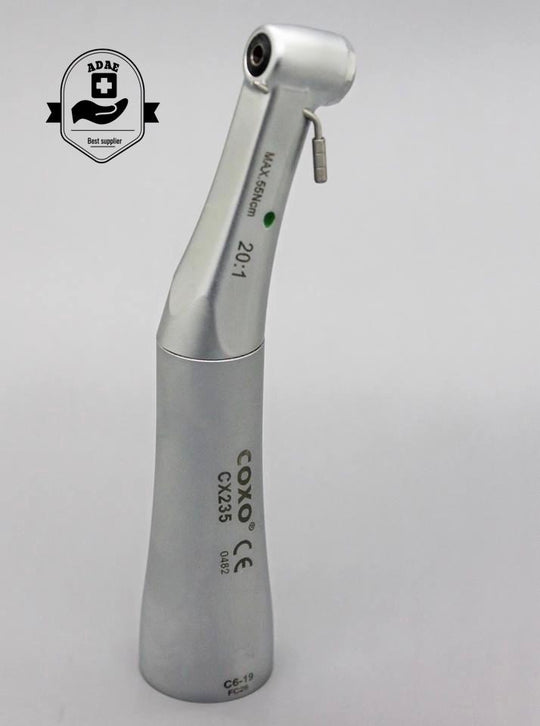

1. Reduction Geared Contra Angle

• Reduction geared contra angle with internal and external irrigation.

• Standard push-button reduction geared contra angle.

• Compatible with standard reduction handpieces.

• Autoclavable for repeated sterilization.

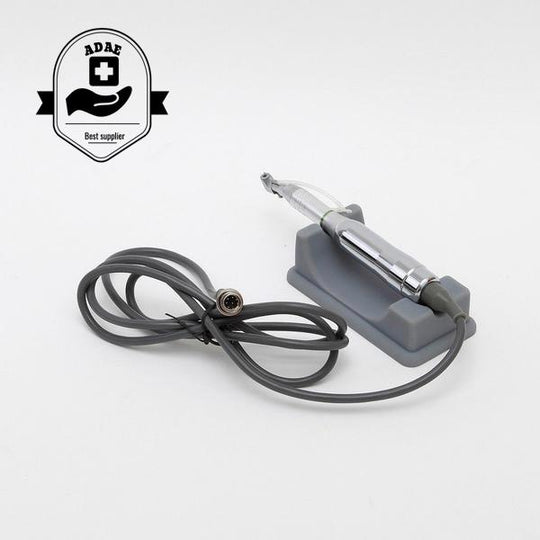

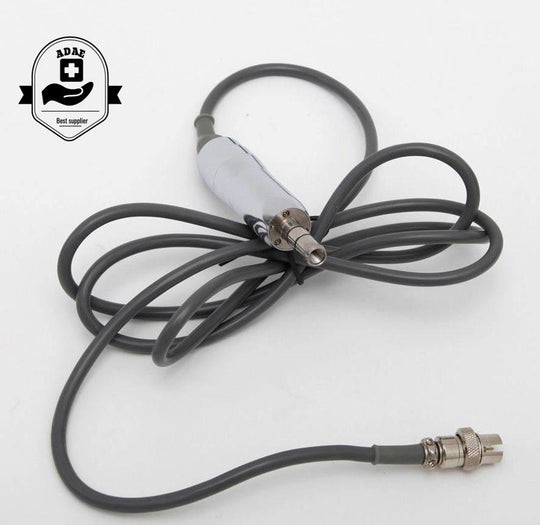

2. Surgical Brushless Motor

• Original Switzerland-made surgical brushless motor.

• Speed range: 0 to 40,000 rpm, offering high torque and a wide speed range for various treatments.

• Maximum torque: 55 N·cm, providing powerful output for efficient bone cutting.

• Exceptional stability, no overheating, and silent operation.

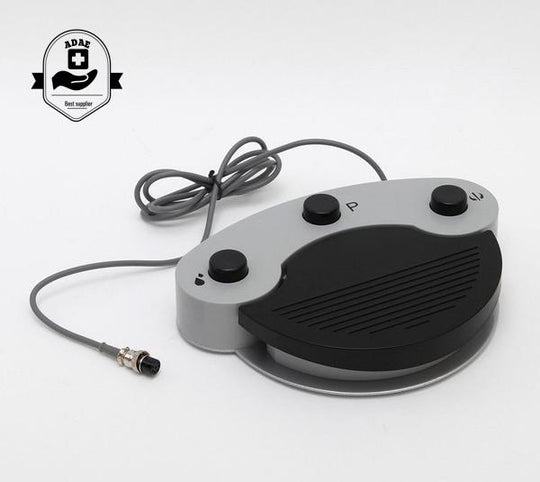

3. Foot Control Pedal

• Multifunctional foot pedal for complete operational control.

• Easy and flexible to use.

4. Intelligent Cooling System

• Dual control options: hand control and foot control.

• Inner and external channel cooling and wash system.

• Quiet and powerful water pump for efficient cooling.

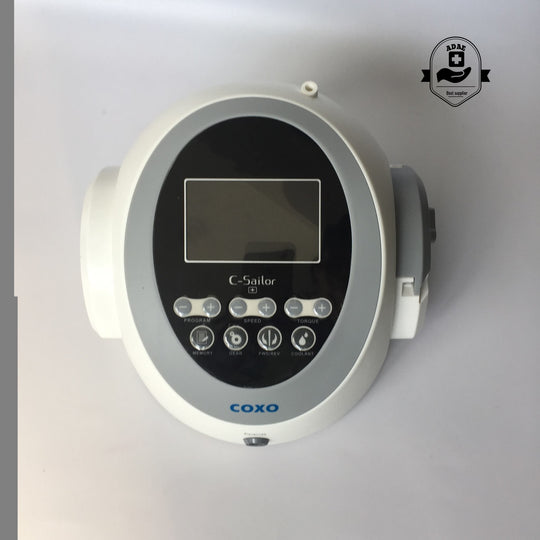

5. High-Performance Control System

• Large LED screen for easy control and operation.

• 10 types of reduction contra angles available.

• 10 programmable settings to preset air motor speed, cooling liquid flow, torque, reverse function, and specific speed.

• Stepless speed regulation for precise adjustments.

1. Maximum output power:120W
2. Power voltage: 110V/60Hz or 220V/50Hz.
3. Adjustable torque,range:5.0-55N.cm(20:1)
4. BLDC Speed:0rpm-40000rpm
5. Infusion flow(maximum):150ml/min
6. Motor: Original switzerland surgical brushless motor
7. VOLUME：40x33x26.5cm
8. weight：8.2kg/pcs

One Year
