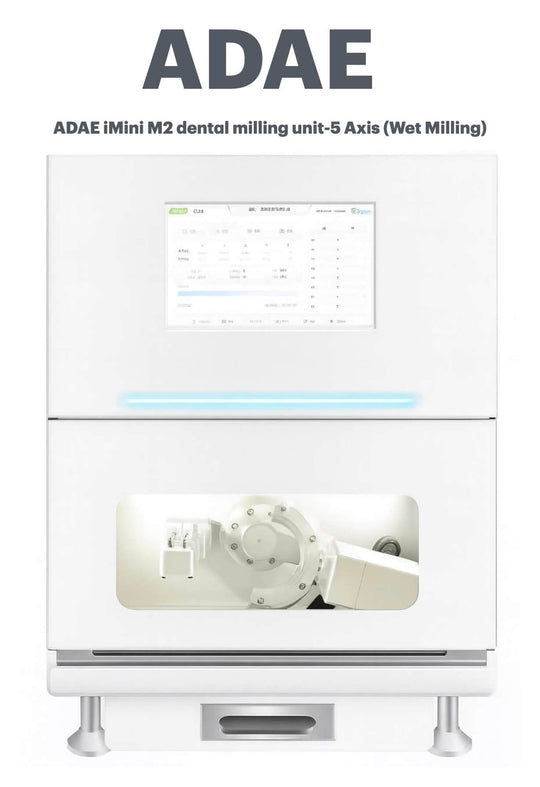

ADAE iMini M2 dental milling unit-5 Axis (Wet Milling)
With ADAE Smart Built- in WiFi
Our ADAE dental technicians can directly operate the machine remotely, which is more convenient for training and after-sales services.
Customers can also remotely check the working status of the machine while they are away.
Specifications
Technical Parameter
Size: 456 × 599 × 700 mm
Weight: 85 kg
Process method: Wet milling
Axis: 5 axis linkage
Air Pressure: ≥0.65 mpa
Supply power: 110V/60Hz or 220V/50Hz.
Maximum output power: 2.6 kw
Positioning accuracy: ±0.005 mm
Motor: Servo motor
Process Angle:
-
A: 360°
-
B: +30° ~ -30°
Process materials: Glass ceramic / PMMA / Premill abutment / Co-Cr (Cobalt-Chromium) / Titanium
Indications (Applications):
- Crown & Bridge
- Inlay / Onlay
- Post & Core
- Veneer
- Screw-retained Crown
- Personalized Abutment
Spindle:
-
60000 RPM
-
water-cooling
-
6 mm holder
-
1.8 kw
Function:
-
Milling burs working time management
-
Status indicator light
-
Flow detection
-
Two-color theme switching
Tools quantity: 8
Tools type:
-
R2.5 × 16 × 4D × 50
-
R2.0 × 16 × 4D × 50
-
R1.0 × 16 × 4D × 50
-
R1.0 × 16 × 4D × 50
-
R1.5 × 16 × 4D × 50
-
R1.0 × 16 × 4D × 50
-
R0.5 × 16 × 4D × 50
Warranty
One year.
FAQ
1. What are your shipping and warranty terms?
1-year warranty
Lifetime technical support
2. Do you provide installation and training support?
After receiving the unit, our expert technical team will:
Guide installation and calibration
Help set up the machine correctly
Train you step-by-step on milling your first unit
Ensuring you are fully confident using the machine from day one
3. What type of milling system is this?
Designed for wet milling processing
4. What materials can it process?
Glass ceramic / PMMA / Premill abutment / Co-Cr (Cobalt-Chromium) / Titanium
Indications
• Crown & Bridge
• Inlay / Onlay
• Post & Core
• Veneer
• Screw-retained Crown
• Personalized Abutment
5. What is the spindle speed?
Water-cooled spindle system
6. What is the accuracy of the machine?
7. What is the machine power?
8. What voltage does it support?
9. What is the machine size and weight?
85 kg
10. What type of motor does it use?
11. What are the axis movement capabilities?
B-axis: +30° to -30°
12. What air pressure is required?
13. What type of milling does it support?
Optimized for high-precision ceramic and abutment processing
