Purpose:

This unit is designed for use in dental laboratories to efficiently remove dust generated during machining operations.

Description:

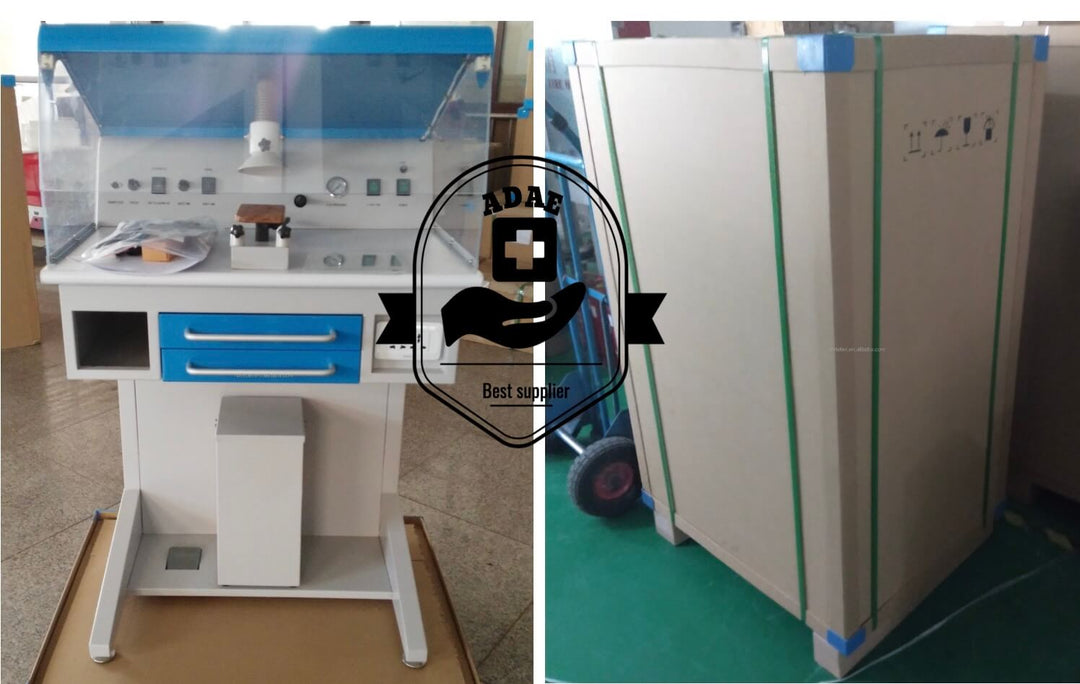

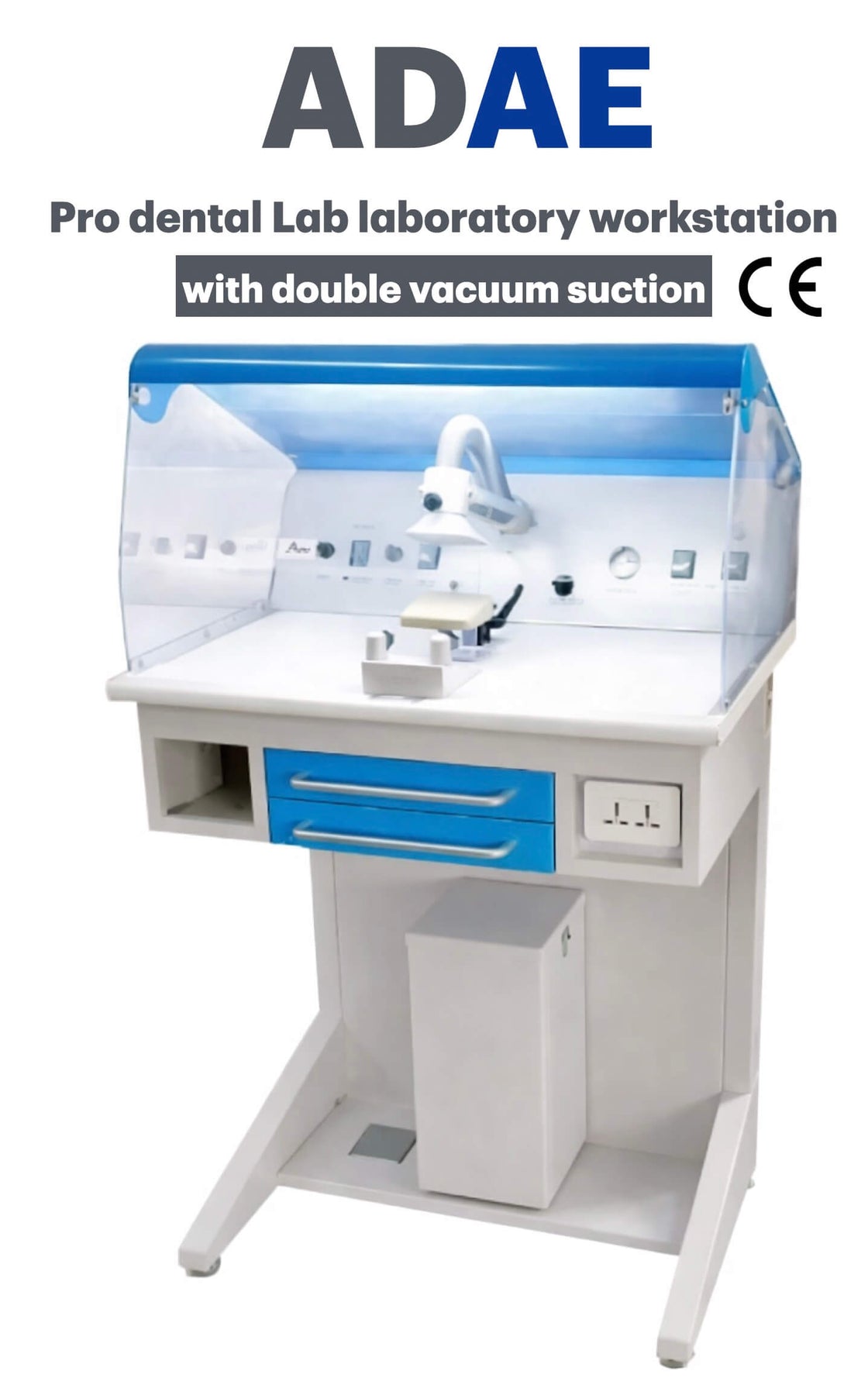

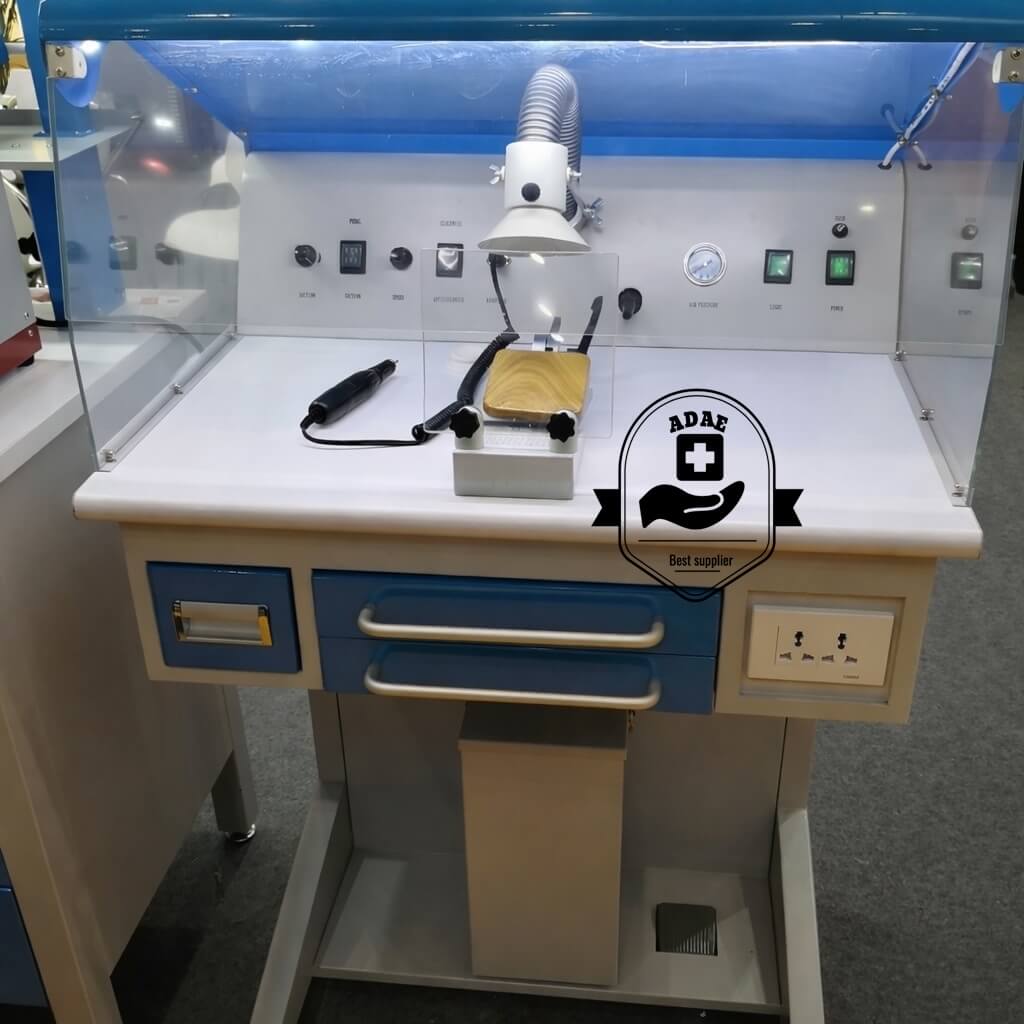

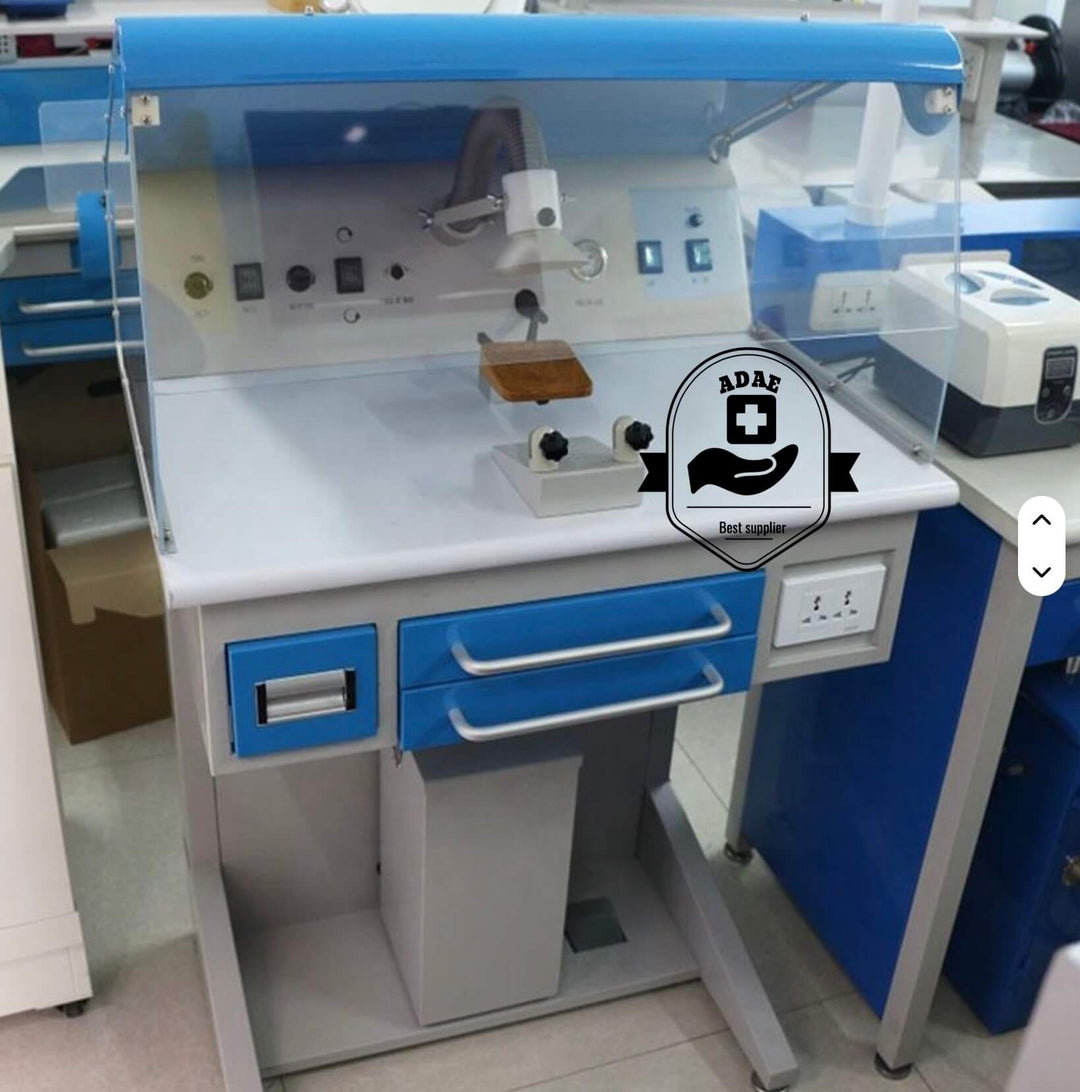

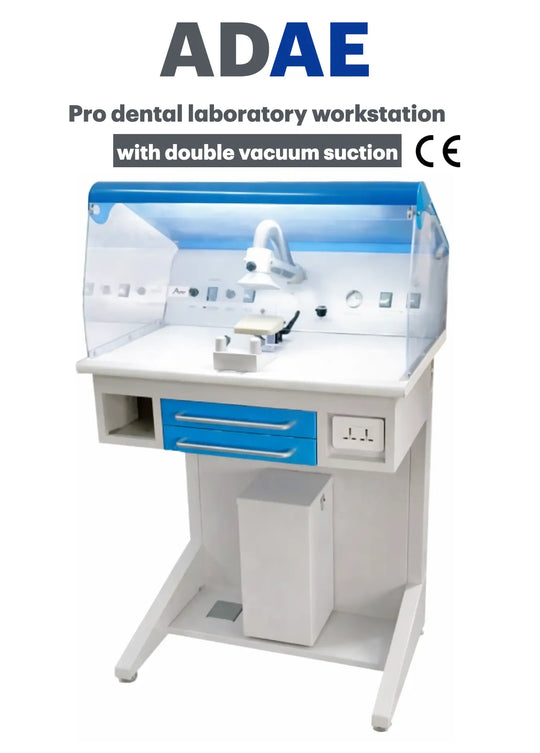

The ADAE Pro Dental Lab Laboratory Workstation with Double Vacuum Suction is widely regarded as one of the most user-friendly workstations of its kind. The workstation features a high-transparency plexiglass enclosure that forms a closed working space for polishing. Its unique double suction hood system extracts dust from both above and below the working platform, ensuring a dust-free working environment in dental labs.
The wooden working platform is adjustable, allowing both vertical and horizontal adjustments to accommodate different tasks. The upper suction hood is flexible and can be adjusted in various directions and opened or closed independently, allowing dental technicians to find an optimal working posture. The workstation also features enhanced lighting, an automatic retrievable air nozzle, storage drawers, and an automatic foot control for both the handpiece and dust collector. This foot pedal allows the user to control both devices simultaneously.
A significant advantage of this design is that it can increase the motor’s lifespan by 200% and reduce power consumption by 300%. (Note: These improvements are based on individual testing and may vary under different operating conditions.)

Technical Data:

• Power Supply: 220V/50Hz or 110V/60Hz

• Power Consumption: 650W

• Air Volume: 172 m³/h

• Max Pressure: -16kPa

• Noise Level: <68dB

• Dimensions: 124cm x 75cm x 55cm (H x W x D)

• Shipping Dimensions: 140cm x 85cm x 65cm (H x W x D)

• Weight: 70kg

Parts Included:

• Fluorescent Lighting System ×1

• Air Nozzle ×1

• Backup Power Socket ×1

• Dust Extraction System ×1

• Tools Drawer ×2

• Suction Hood Cover ×2

• Handpiece Control Assembly ×1

• Micromotor Handpiece ×1

One year.
