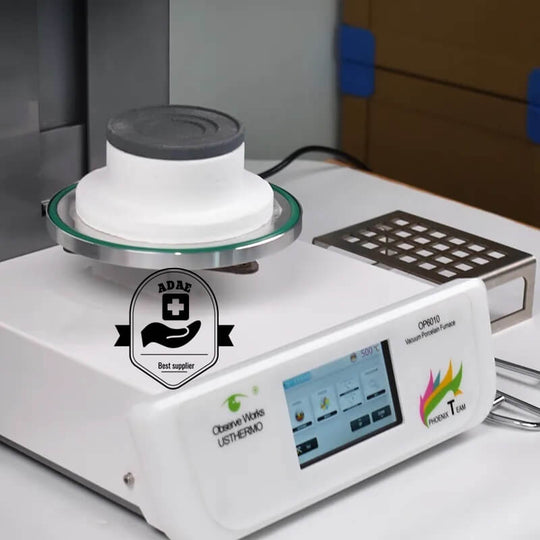

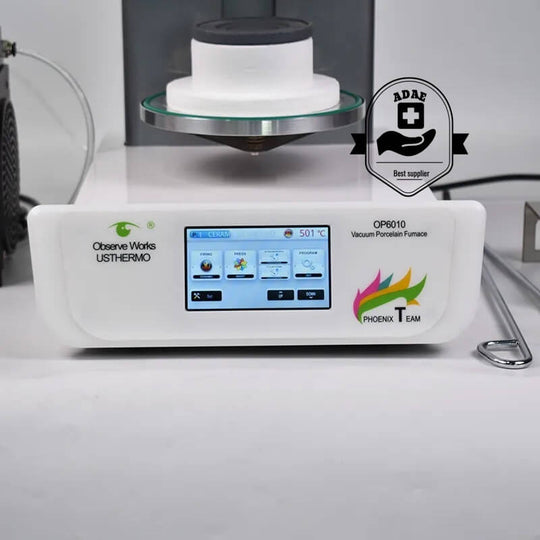

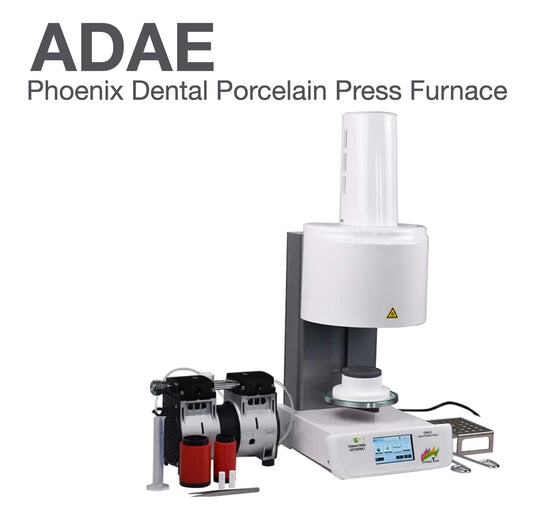

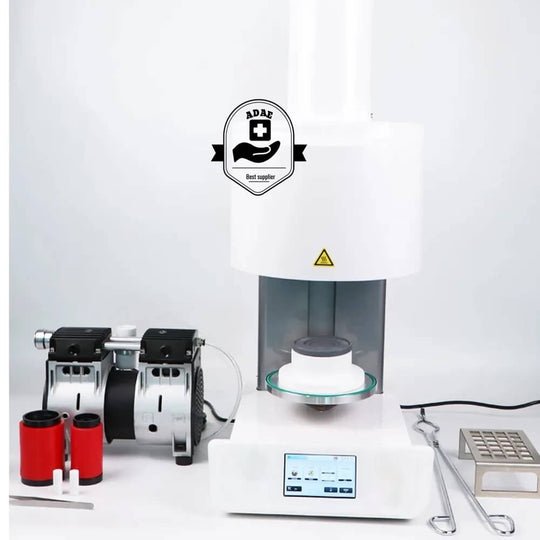

Phoenix press Ingot and ceramic vacuum porcelain furnace for zirconia
- In stock, ready to ship
Introduction
The dental press furnace is a premium combination furnace of the latest generation of the Programat series and may be used as both a press and a ceramic furnace. This highly innovative, efficient and user-friendly furnace model optimally combines sophisticated design and advanced technology.
General featuers
●High quality of the function of temperature adjustment automatically,ensure the actually temperature error within +/-1.
●Easy to operate,compact size,the smallest size in the world at present.
●Precision stepper motor drive, the smooth and jitter-free functioning, noise-free,Speed programmable.
●Spiral quartz chamber of furnace
●Temperature adjustment automatically before every firing procedure.
●True color touch screen, the operation is simple and convenient.
●USB port can easily connect to the computer service program.
●Built in 99 program.
●Optical status display
Specifications
OPERATION：
The velocity of temperature increasing: 200℃/min max.
(392°F /minute)
The max temperature: : 1200℃ max (2283°F)
The time which can be kept at the max temperature: 2 H
Vacuum level:1-101%
ELECTRIC POWER：
Operation range：100-120V 50/60HZ 230V 50/60HZ
Electric current：14.5ampere@110V 7.0ampere@230V
Power：max 1500w
TYPICAL SPECIFICATION：
WXDXH :width 27cm Depth 36cm Height 70cm
Usable measure (firing chamber):9cm（3.5”）
Net weight：23Kg
Weight include the package:26.5Kg
AMBIENT CONDITIONS
• Indoor use
• Ambient temperature: 2°C to 40°C
• Relative humidity 80% at 31°C
• Maximum altitude: 1500 m (Special Model:3500m)
• Rated voltage fluctuations must not exceed plus/minus 10% of the rated voltage
Packing list
• PHOENIX furnace pressed 1 unit.
• Firing pan 1pc.
• Connection cable for the mains power supply 1pc.
• Furnace tweezers 1pc.
• Tongs 1pc.
• Press rod 2pcs.
• Embedding ring 100g.
• Cooling rack 1pc.
Warranty
One year.
