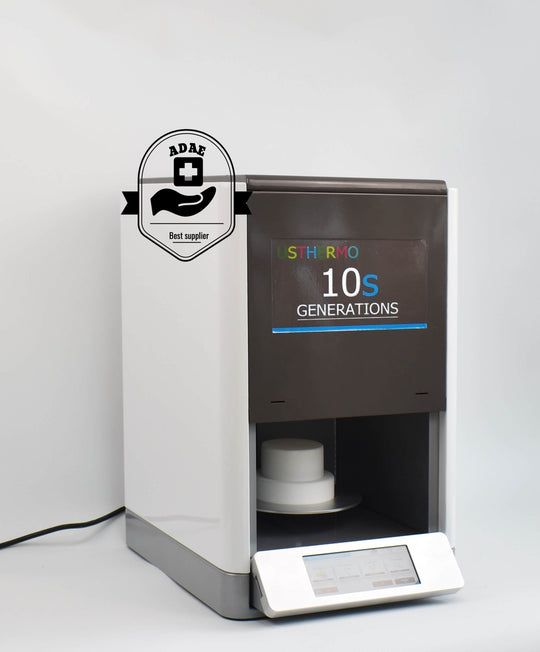

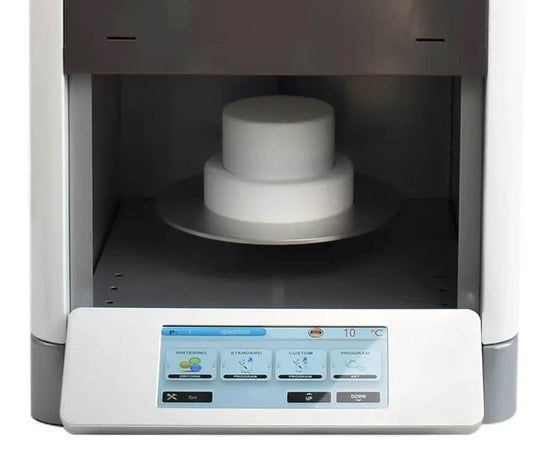

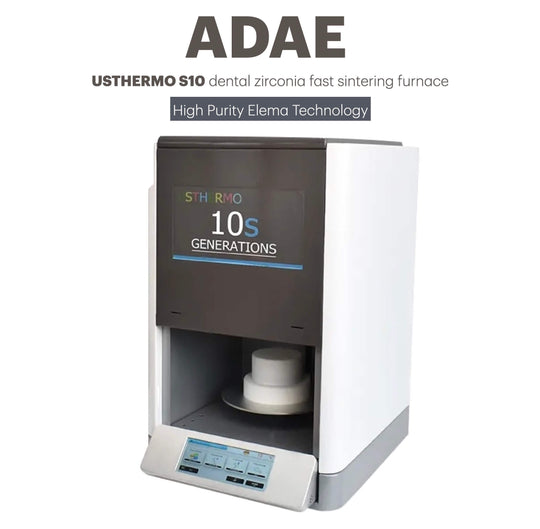

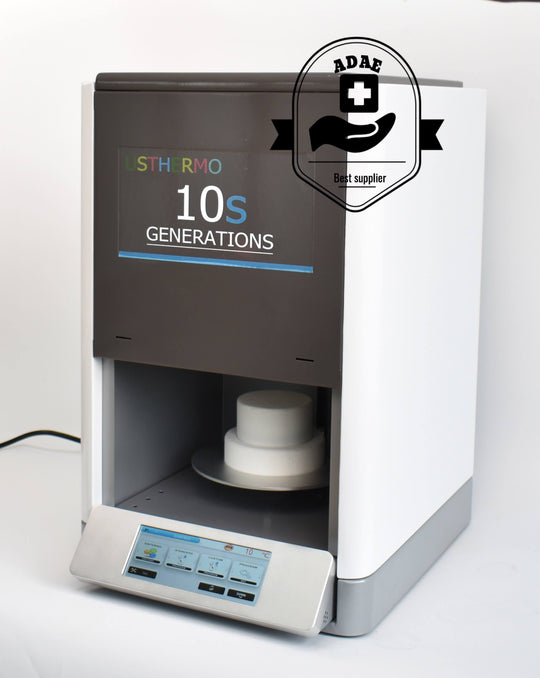

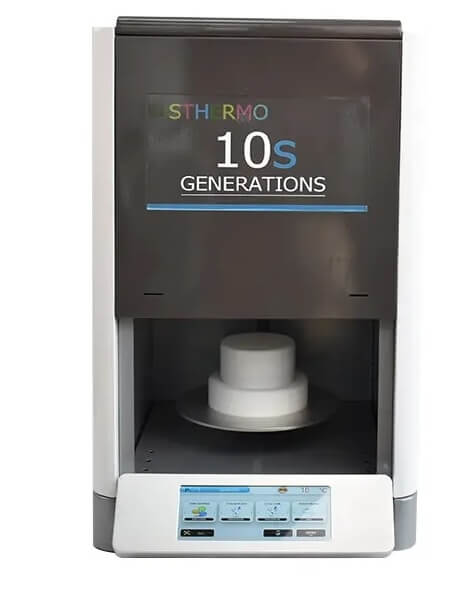

ADAE USTHERMO S10 dental zirconia fast sintering furnace

Functions of Sintering Furnace:

• Voice prompt function.

• High-quality automatic temperature adjustment, ensuring actual temperature error within ±2°C.

• Compact and easy to operate, one of the smallest furnaces available globally.

• Precision stepper motor drive for smooth, jitter-free operation.

• High-purity silicon carbide rod/silicon molybdenum rod heater.

• Hyperbolic sintering system with automatic temperature calibration before each sintering process.

• Low-noise tray with programmable speed.

• Fast sintering of zirconia with full anatomical morphology.

• Pre-drying time setting for baking zirconia dentures.

• Maximum temperature setting up to 1550°C.

• Maximum heating rate of 200°C per minute.

• No need for preheating; ready to use anytime.

• Automatic fast cooling technology.

• Capacity for sintering up to 30-50 restorations (90mm tray).

• True color touch screen for easy operation.

• 50 custom and built-in programs.

• Status indication.

Specifications:

Operation:

• Temperature increase rate: Up to 200°C per minute.

• Maximum temperature: 1550°C.

• Max temperature holding time: 2 hours.

Electric Power:

• Voltage: 100-120V, 60Hz or 220V, 50Hz.

• Current: 30A @110V, 20A @230V.

• Power: Max 3000W.

Dimensions:

• Size (W x D x H): 36 x 46 x 59 cm

• Firing chamber diameter: 9 cm

• Net weight: 40 kg

• Weight with package: 45 kg

Ambient Conditions:

• Indoor use only.

• Ambient temperature: 2°C to 40°C.

• Relative humidity: 80% at 31°C.

• Maximum altitude: 1500 m (Special Model: 3500 m).

• Voltage fluctuations should not exceed ±10% of the rated voltage.

Device Package Includes:

• 1 Firing pan

• 1 Connection cable for mains power supply

• 1 Instruction manual

• 1 Burning rack

Warranty:

• One year.
