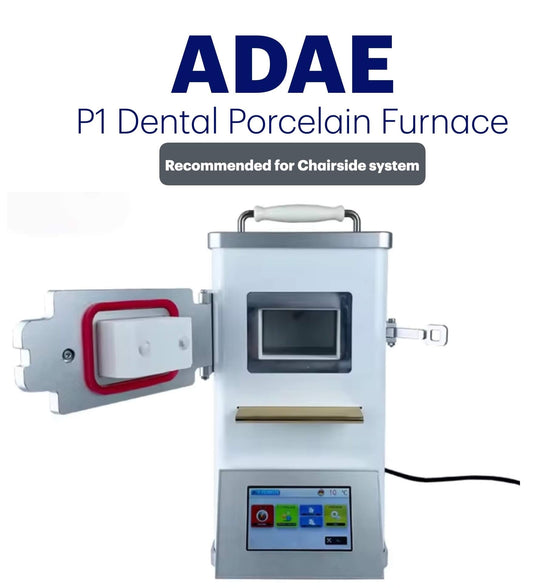

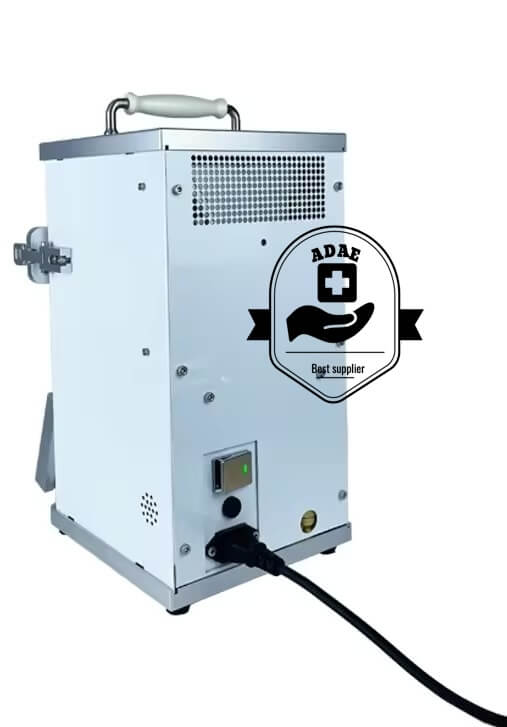

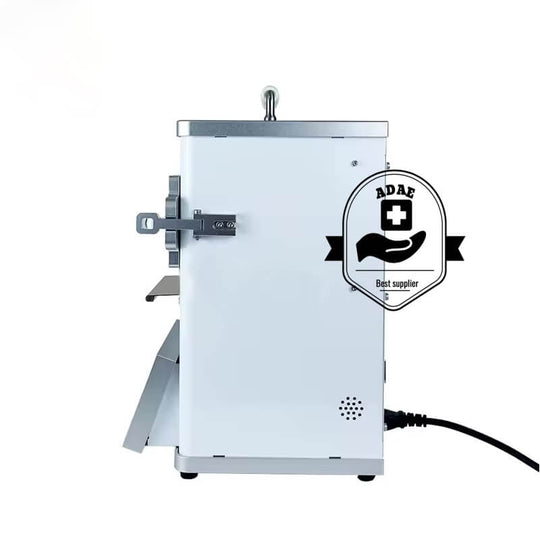

Our ADAE P1 Dental porcelain furnace can perform various functions, including glass-ceramic crystallization, glazing, porcelain baking, porcelain mending, dyeing, ring burning, and more.
It is compact and space-efficient, making it easy to place and store. It is especially suitable for dental hospitals, clinics, and denture studios that require cleanliness, tidiness, and efficient use of space.
It can be used alongside chair-side CNC equipment, allowing almost all tasks to be completed in a very small space. Additionally, it is highly portable.
In extreme situations, it can be powered by a 12V battery with the driver, making it reliable even during power failures or other interruptions. This ensures that temporary porcelain mending, dyeing, and similar tasks are not affected.

1. Volume (length, width and height): 18 * 20 * 35cm
2. Furnace size: 75 * 45 * 90mm
3. Maximum temperature: 1100 °C
4. Power: 850W
5. Maximum heating rate: 100°C / min
6. Maximum vacuum: - 92kpa
7. Vacuum level:1-101%
8. Power Supply：
   ●Voltage：120V/60Hz or 220V/50Hz.
   ●Current：14.5A/110V；7.0A/230V
   ●Power：Maximum 1500W（Including vacuum pump.

1. CNC plus the following steps -- > glass ceramic crystallization.
2. The following steps after CNC processing -- > glass ceramics, zirconia dyeing. glazed.
3. CNC processing glass ceramics, zirconia -- > shape porcelain
4. CNC machining defective restorations -- > porcelain repair
5. Firing porcelain embedded ring, small metal embedded ring, 100g ring at most two.
6. Rework the denture --> modify the color, fill the porcelain, re-glaze.

1. Hyperbolic ceramic furnace function, the program can be set to single curve mode or hyperbolic mode, hyperbolic mode provides a complete crystallization process for glass-ceramic crystallization.
2. Voice prompt function.
3. High quality temperature automatic adjustment function, to ensure that the actual temperature error within + /- 1 degrees.
4. Portable for easy transfer and storage.
5. Quartz spiral furnace.
6. Automatic temperature calibration before each baking procedure.
7. The built-in vacuum pump can reach - 90kpa at most.
8. True color touch screen, easy to operate.
9. 99 custom programs and built-in programs.
10. Automatic detection of furnace door closing before heating.

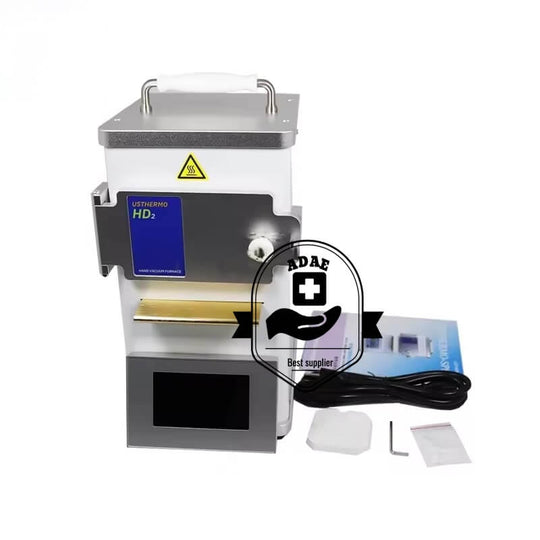

• Firing pan (1 pc)

• Spare wrench for furnace door (1 pc)

• Connection cable for the mains power supply (1 pc)

• Instruction manual (1 pc)

• Burning rack (1 pc)

One year.
