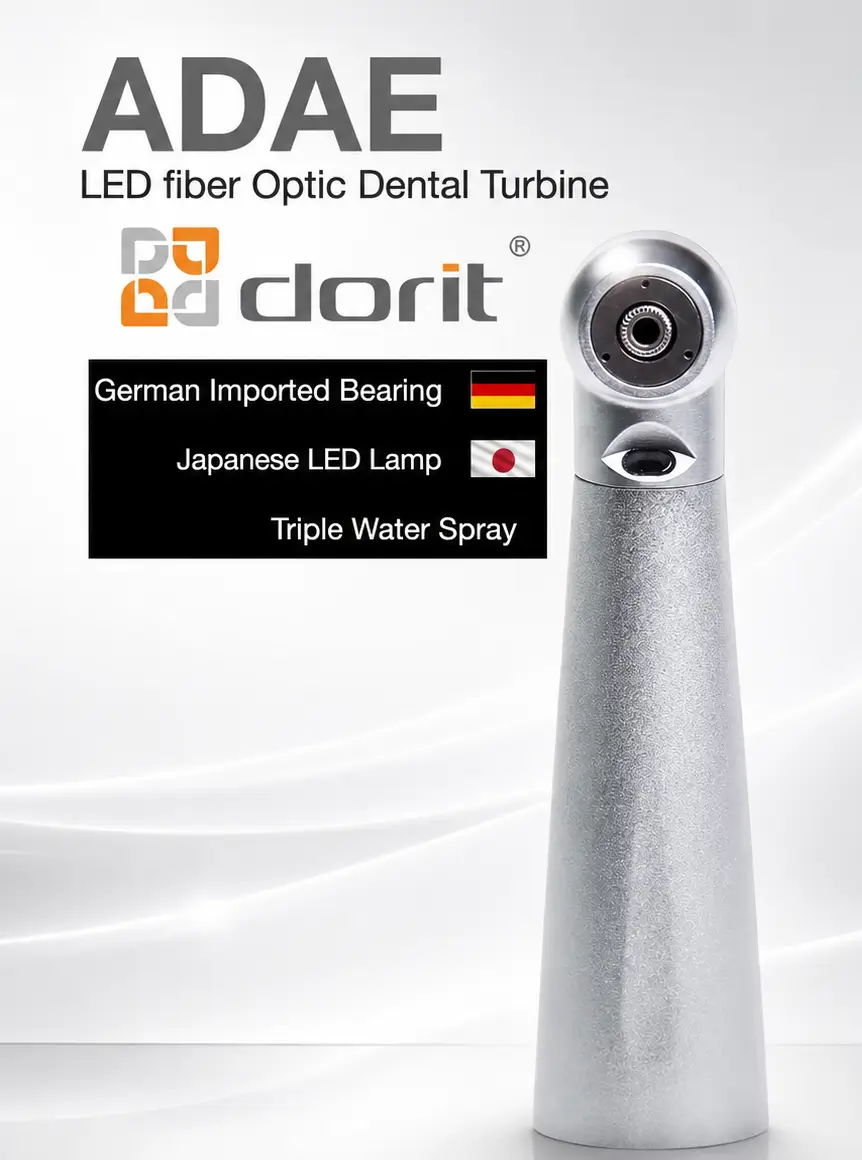

Key Features

1. German Ceramic Ball Bearing
   High-quality ceramic ball bearing with an open-style cartridge for smooth and reliable high-speed operation.

2. Triple Water Spray
   Triple water spray provides effective bur cooling during operation.

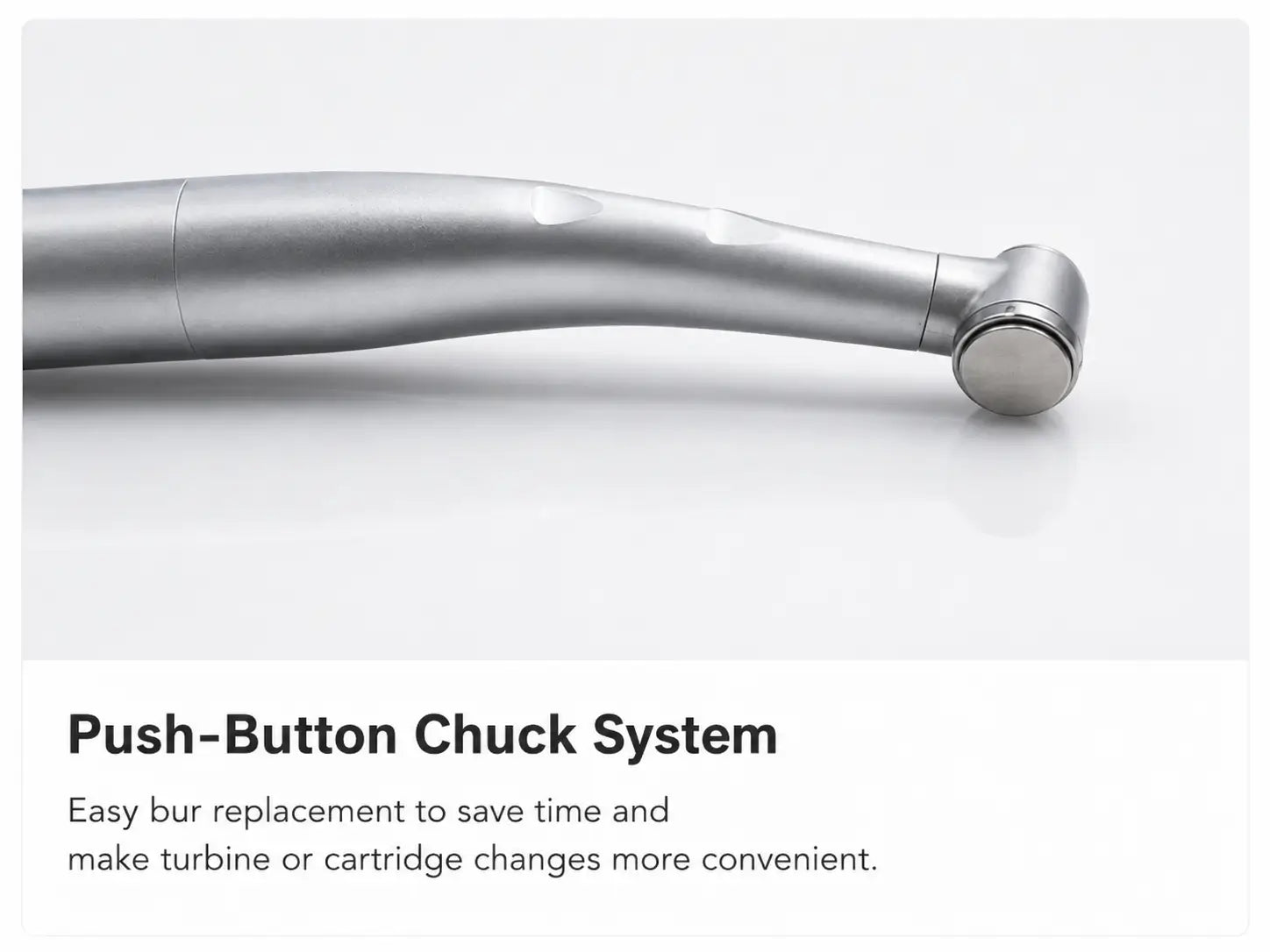

3. Push-Button Chuck
   Push-button design allows quick and convenient bur replacement.

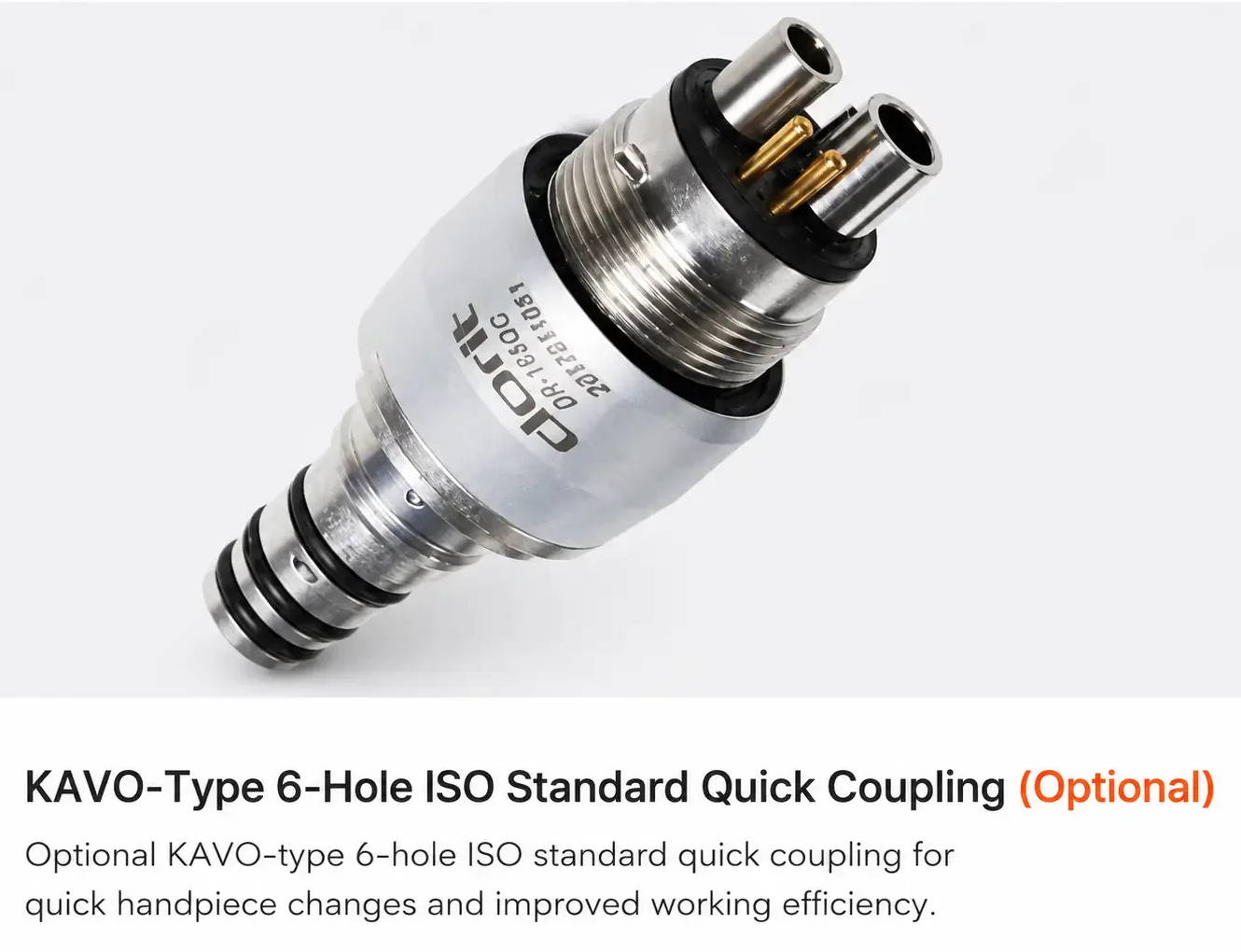

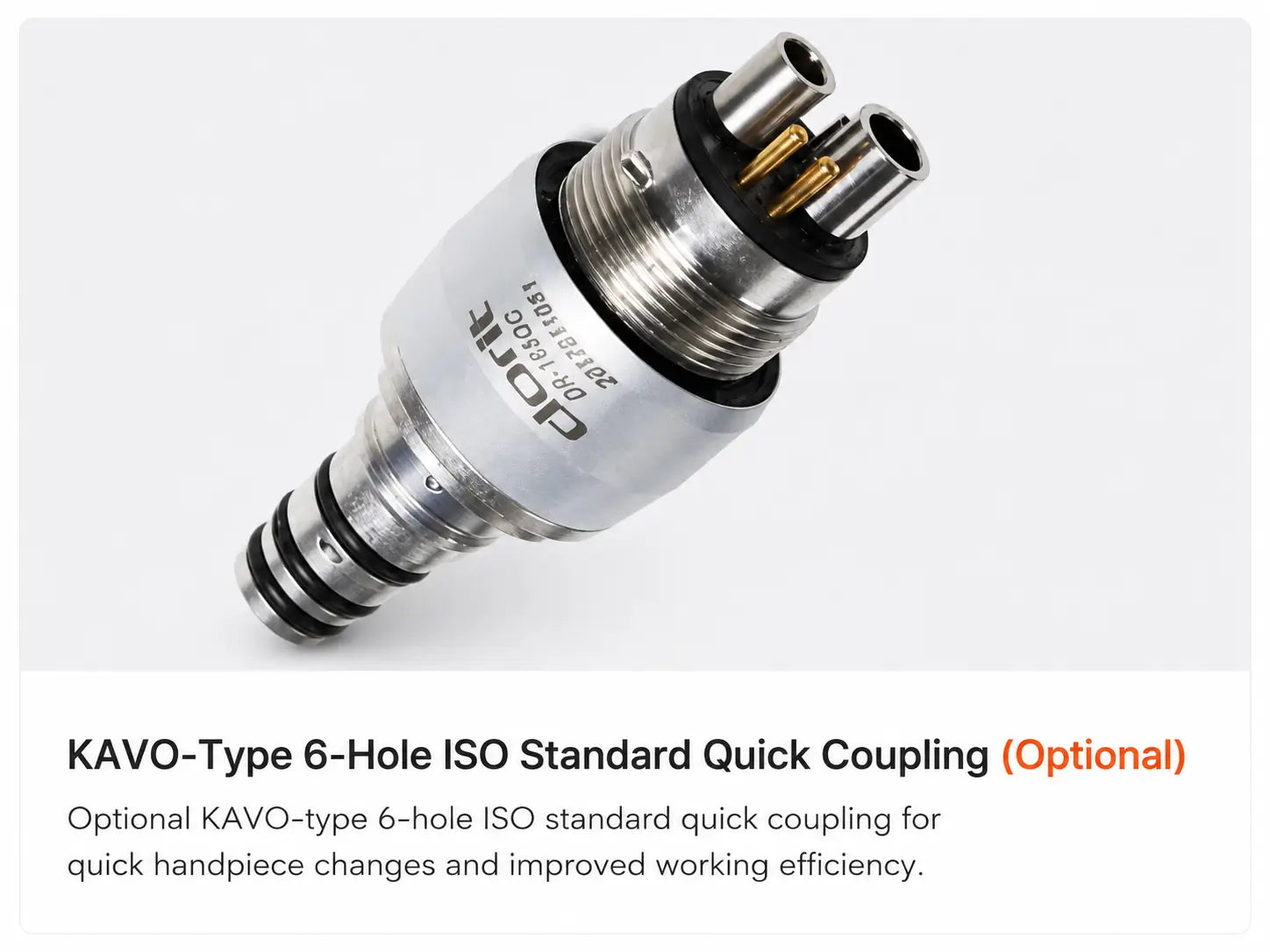

4. Optional KaVo-Type Quick Coupling
   Available with an optional 6-hole ISO-standard KaVo-type quick coupling for fast handpiece connection and removal.

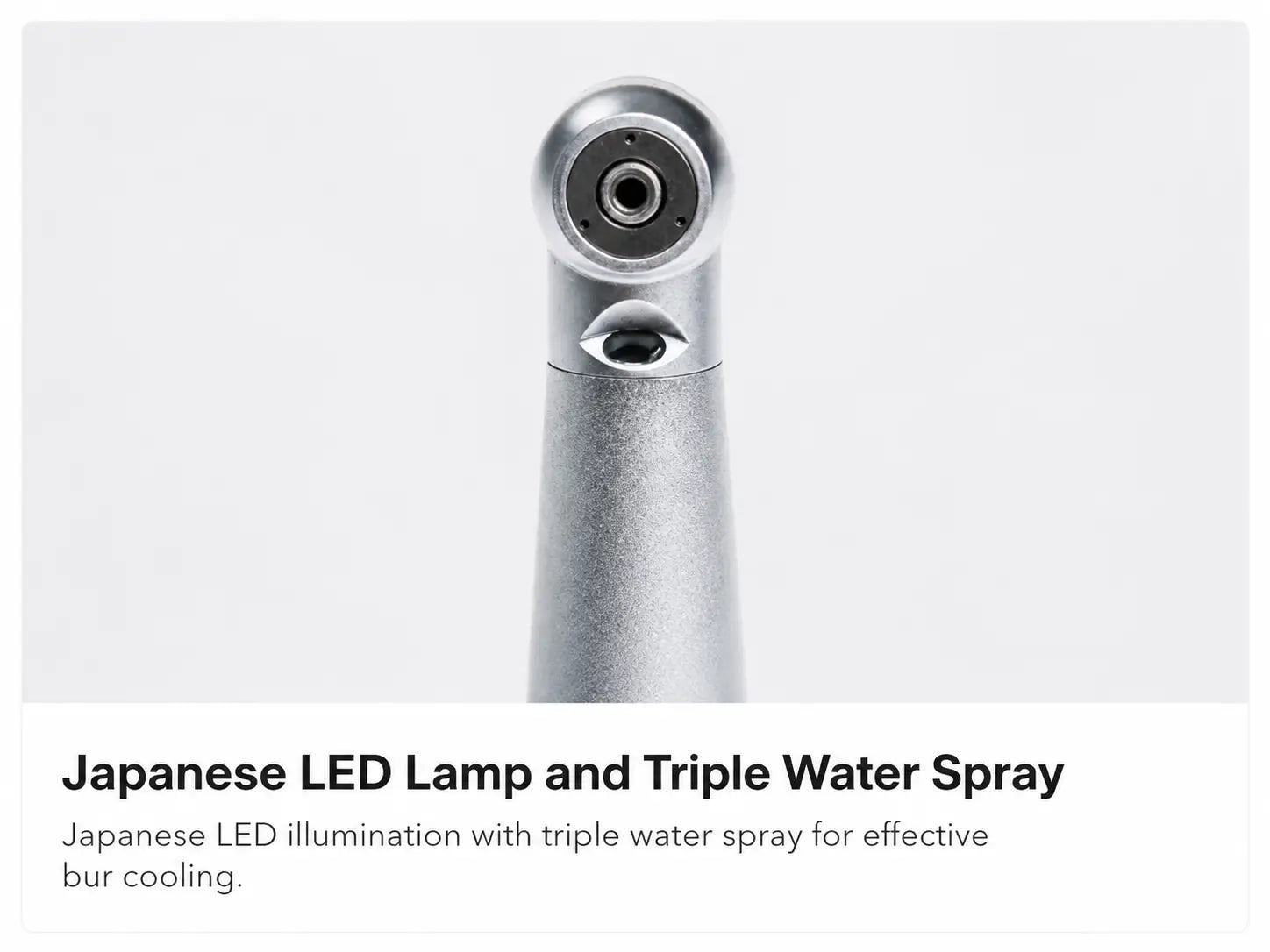

5. Fiber Optic LED Illumination
   Fiber optic light transmission with a Japanese LED light source provides clear illumination during treatment.

6. High-Temperature Sterilization
   Designed to withstand sterilization at temperatures up to 135°C.

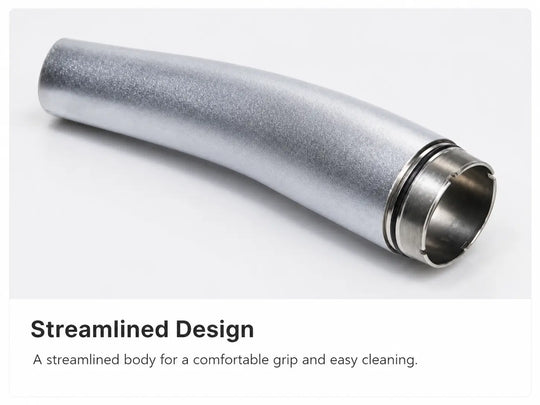

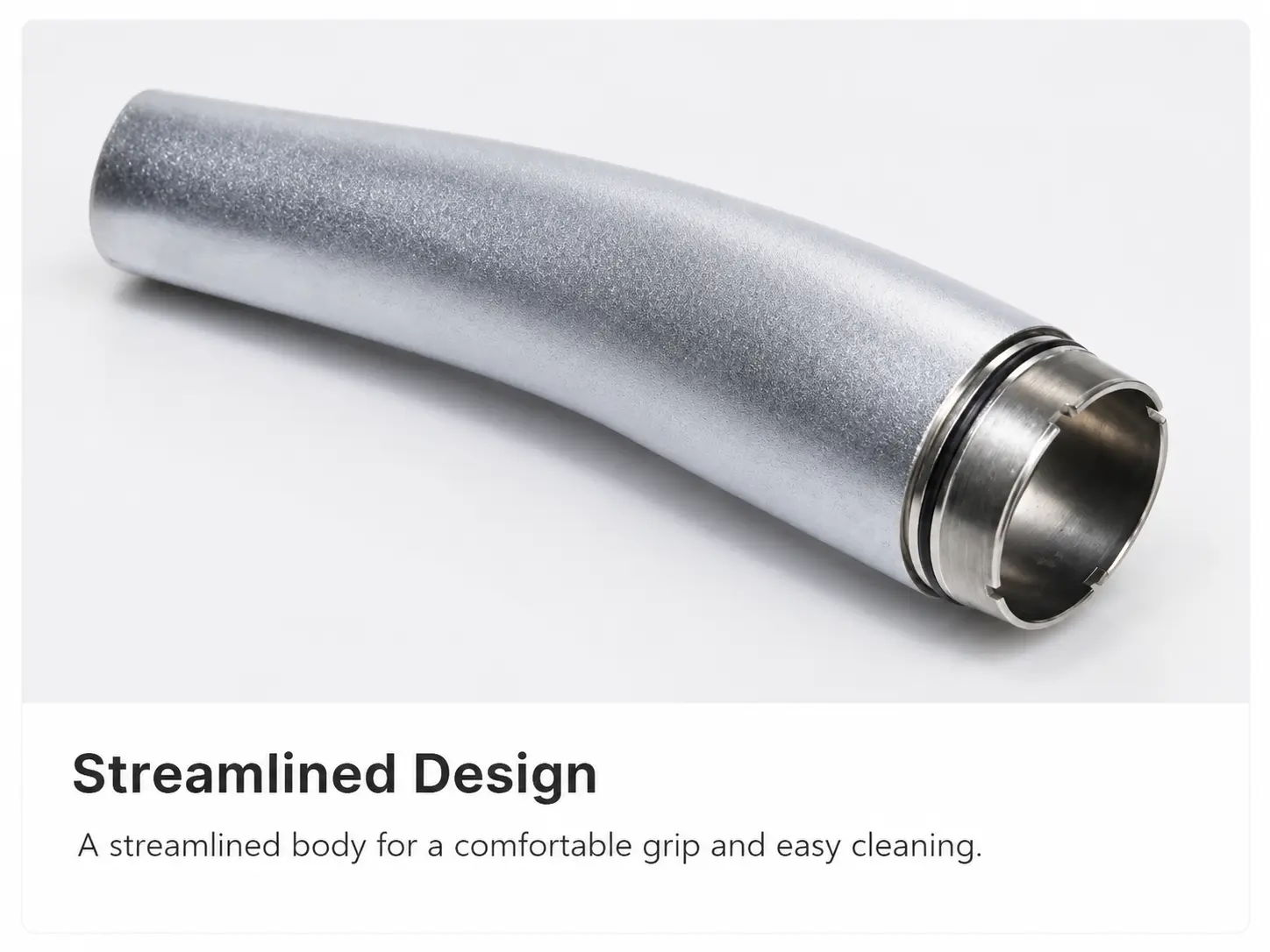

7. Ergonomic Streamlined Design
   Smooth, streamlined body provides a comfortable grip and is easy to clean.

• Air pressure at the back end of HP: 206-231KPa(2.1-2.35kgf/cm2)

• Air pressure at the gauge in dental unit: 277-316Kpa(2.8-3.2kgf/cm2)

• Water pressure: 198Kpa(2kg)

• Light brightness: 25500lux

• Power: 22W(standard); 25W(torque)

• Rotation speed: 350,000~420,000rpm(Standard)

• Head height: 13.0mm(Standard)

• Head diameter: Φ10.8mm(standard)

• Chuck type: Push button

• Clamping force: 22N~34N

• Torque force: 0.1N·cm(standard)

• Bur Applicable: Φ1.59mm-Φ1.6mm*21mm-23mm(diameter*length)

• Noise: ≤60DB
