ADAE AD001 portable dental unit with built-in silent air compressor
- In stock, ready to ship
ADAE AD001 Portable Dental Unit with Built-In Silent Air Compressor
A compact all-in-one portable dental unit designed for dentists who need a practical delivery system without installing a traditional dental chair unit.
The ADAE AD001 integrates an oil-free air compressor, suction system, high- and low-speed handpiece tubing, three-way syringe, water supply and foot control into one portable system.
Its electronic control system allows the dental handpiece and suction system to operate at the same time, making the AD001 suitable for mobile dentistry, temporary treatment rooms, clinics requiring an additional treatment station, home visits and dental training environments.
Simultaneous Handpiece + Suction Operation
Unlike basic portable delivery systems, the AD001 incorporates an electronic control system with solenoid valves and microswitches that allows the handpiece and suction system to work simultaneously.
This provides a more practical workflow during dental procedures where continuous suction is required while operating the handpiece.
Key Features
- FDA-CE certified

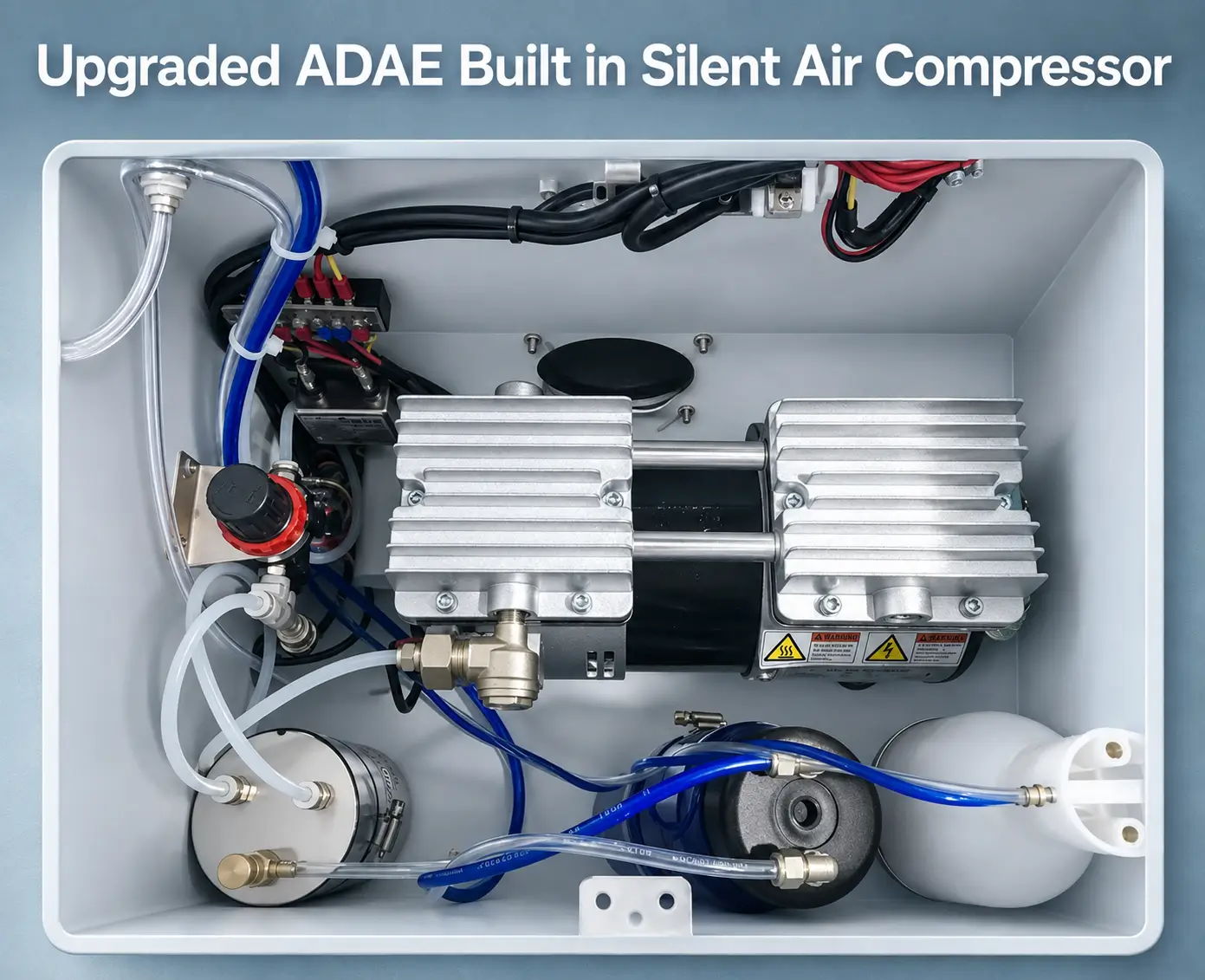

- Built-in silent oil-free air compressor
- High-speed handpiece tubing
- Low-speed handpiece tubing
- Integrated suction system
- Handpiece and suction can operate simultaneously
- Three-way air/water syringe
- Built-in stainless-steel air tank
- Electronic control system

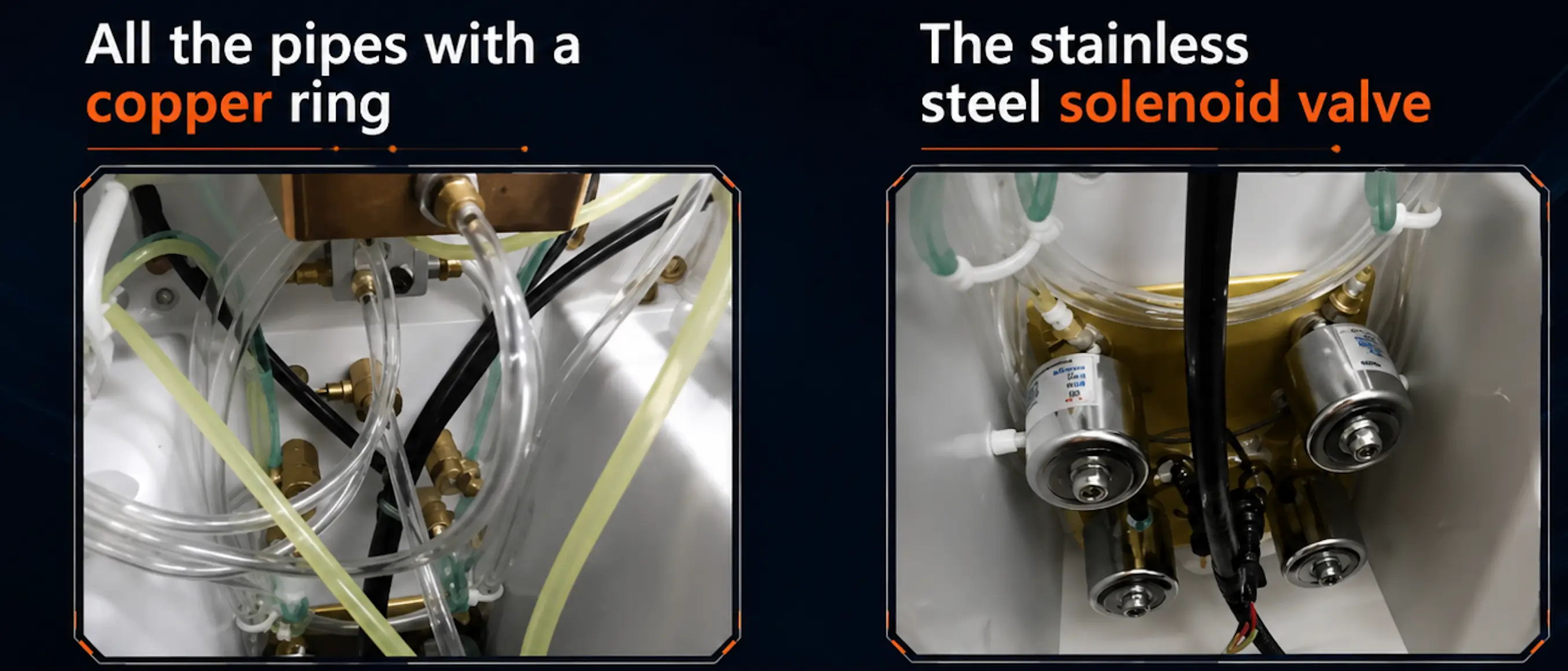

- Stainless-steel solenoid valve
- Durable aluminium-alloy construction
- Independent clean-water bottle
- Drain/waste bottle

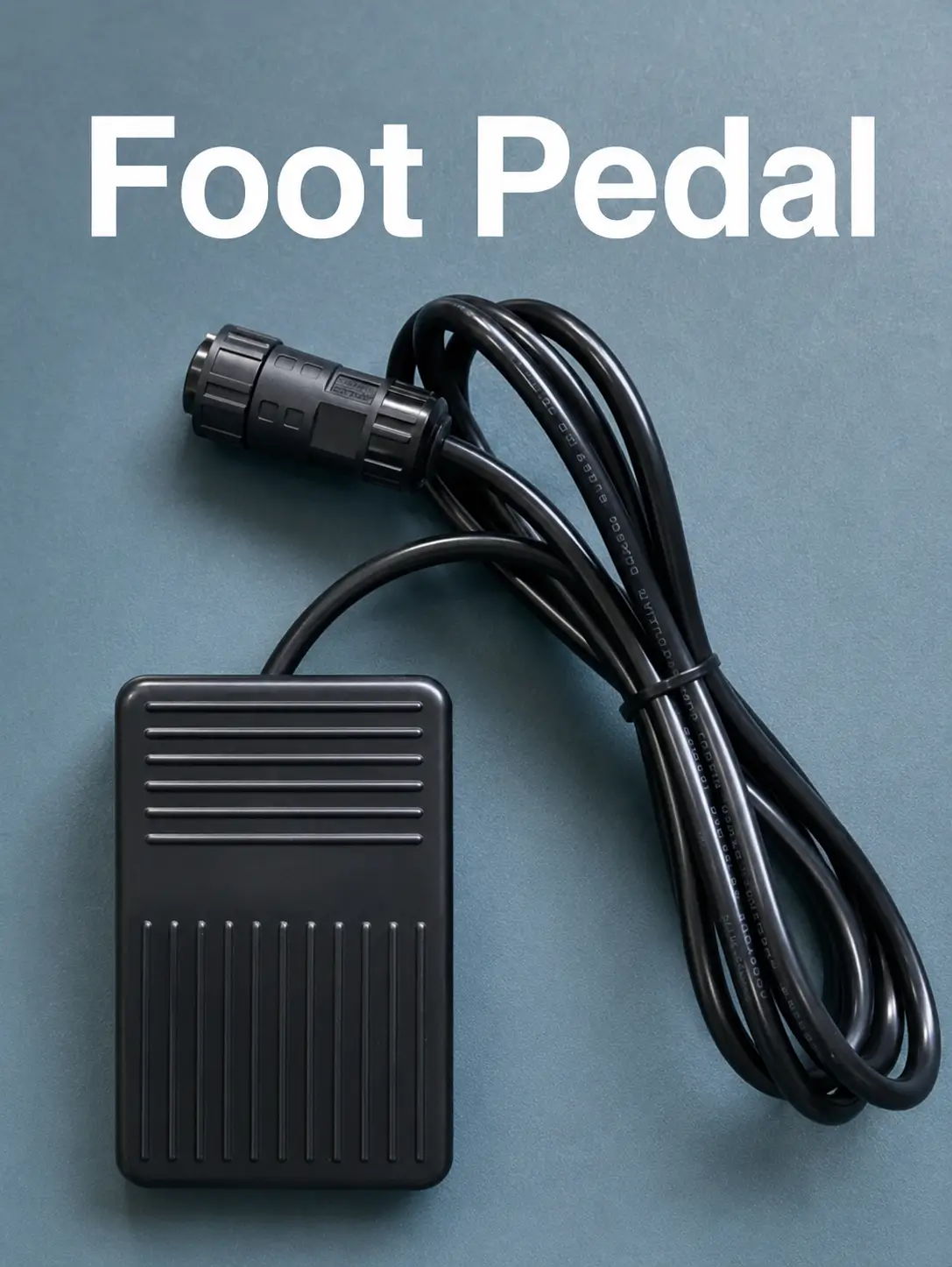

- Foot control included
- Optional complete dental handpiece kit
Specification
- Compressor power: 550 W
- Input: 240V/50Hz or 110V/60Hz.
- Motor speed: 1,400 RPM
- Air flow: 130 L/min
- Maximum pressure: 0.8 MPa
- Listed operating noise: 40 dB(A)
- Built-in air tank capacity: 1 L
- Air tank material: Stainless steel
- High-speed handpiece tubing: Included
- Low-speed handpiece tubing: Included
- Handpiece connection options: 2-hole or 4-hole
- Three-way air/water syringe: Included
- Suction system: Included
- Clean-water bottle: Included
- Drain/waste bottle: Included
- Foot control: Included
- Net weight: 19 kg
- Gross weight: 22 kg
- Product dimensions: 49 × 38 × 52 cm
Standard Accessories
- High-speed handpiece tubing × 1
- Low-speed handpiece tubing × 1
- Three-way syringe × 1
- Built-in oil-free air compressor × 1
- Water bottle × 1
- Suction system × 1
- Drain bottle × 1
- 1 L air tank × 1
- Foot control × 1
-
Optional dental handpiece kit: This kit includes:
-Push button LED dental turbine 1pc.
-Push button contra angle handpiece 1pc.
-Air motor 1 pc.

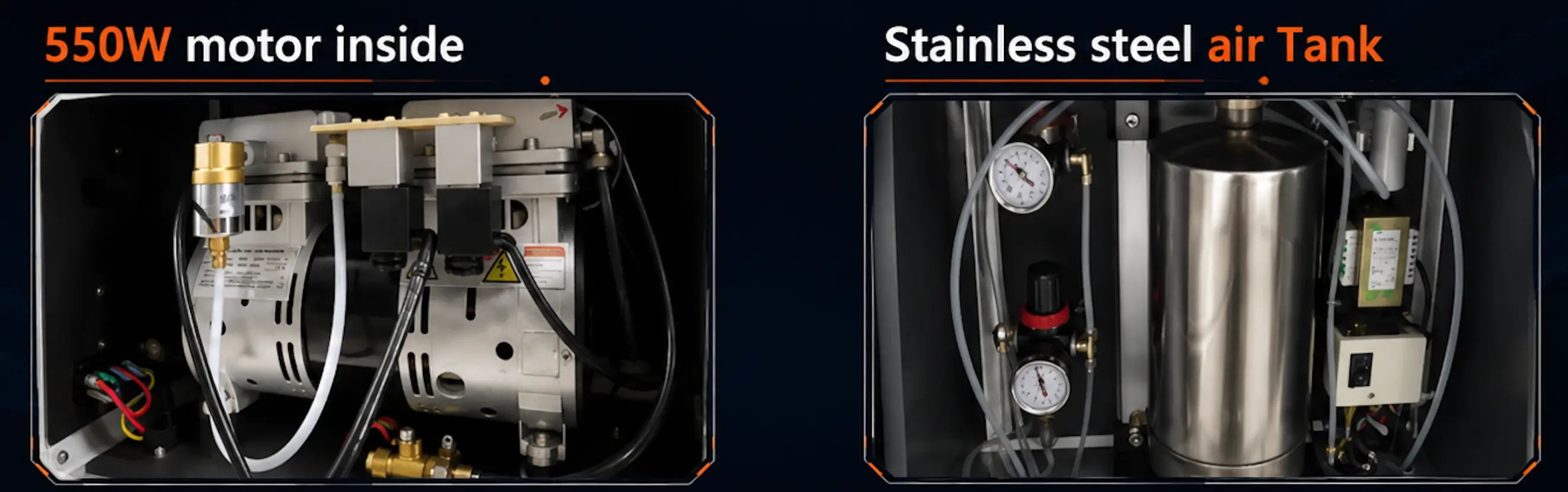

Internal parts of the product
- The electronic control system (handpiece and suction saliva system can work at the same time).
- Built-in stainless steel gas tank.

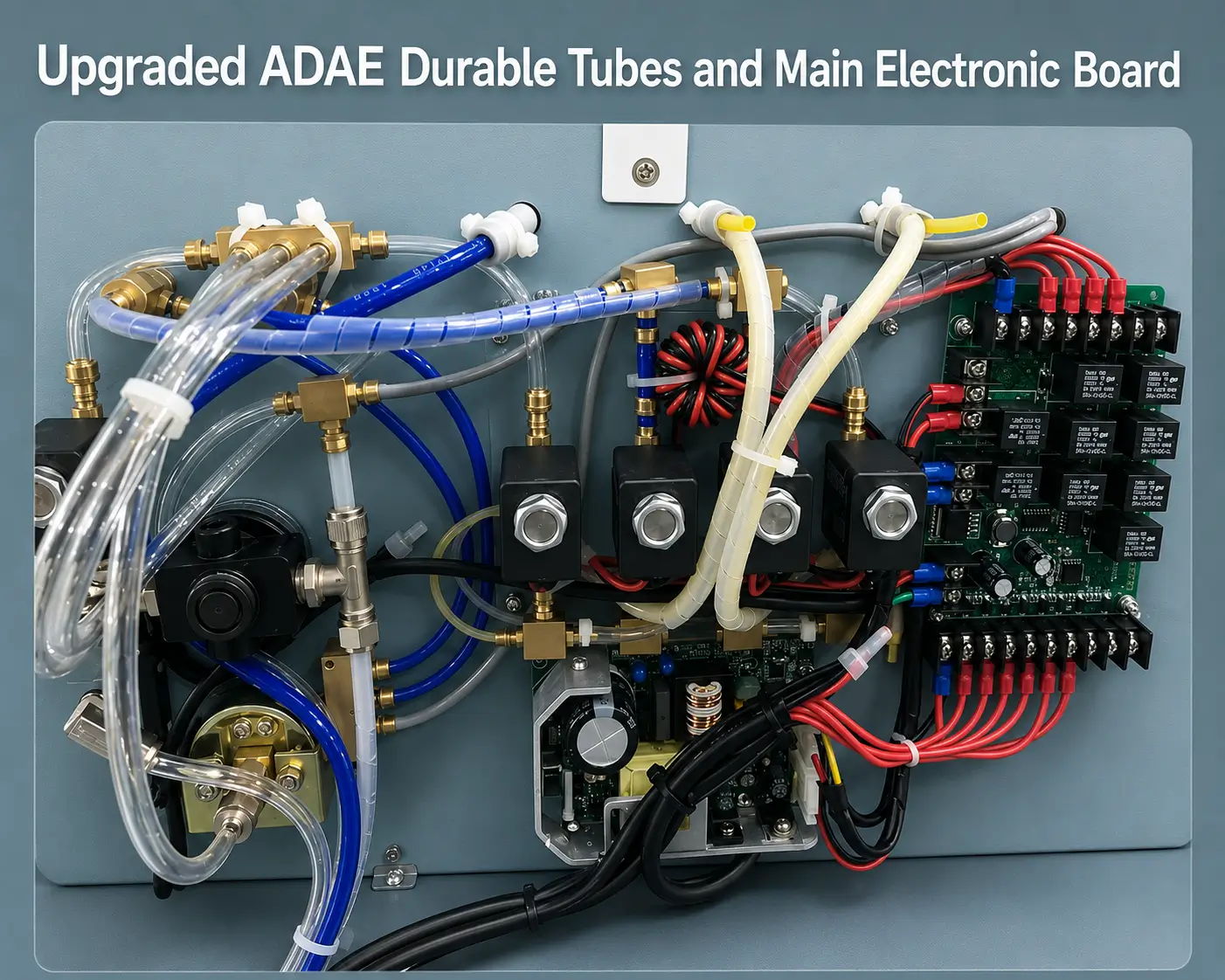

- An electronic control system, including solenoid valves, micro switches, and other electronic components. It has the advantage that both hand-piece and suction saliva system can be used at the same time.
Warranty
One year

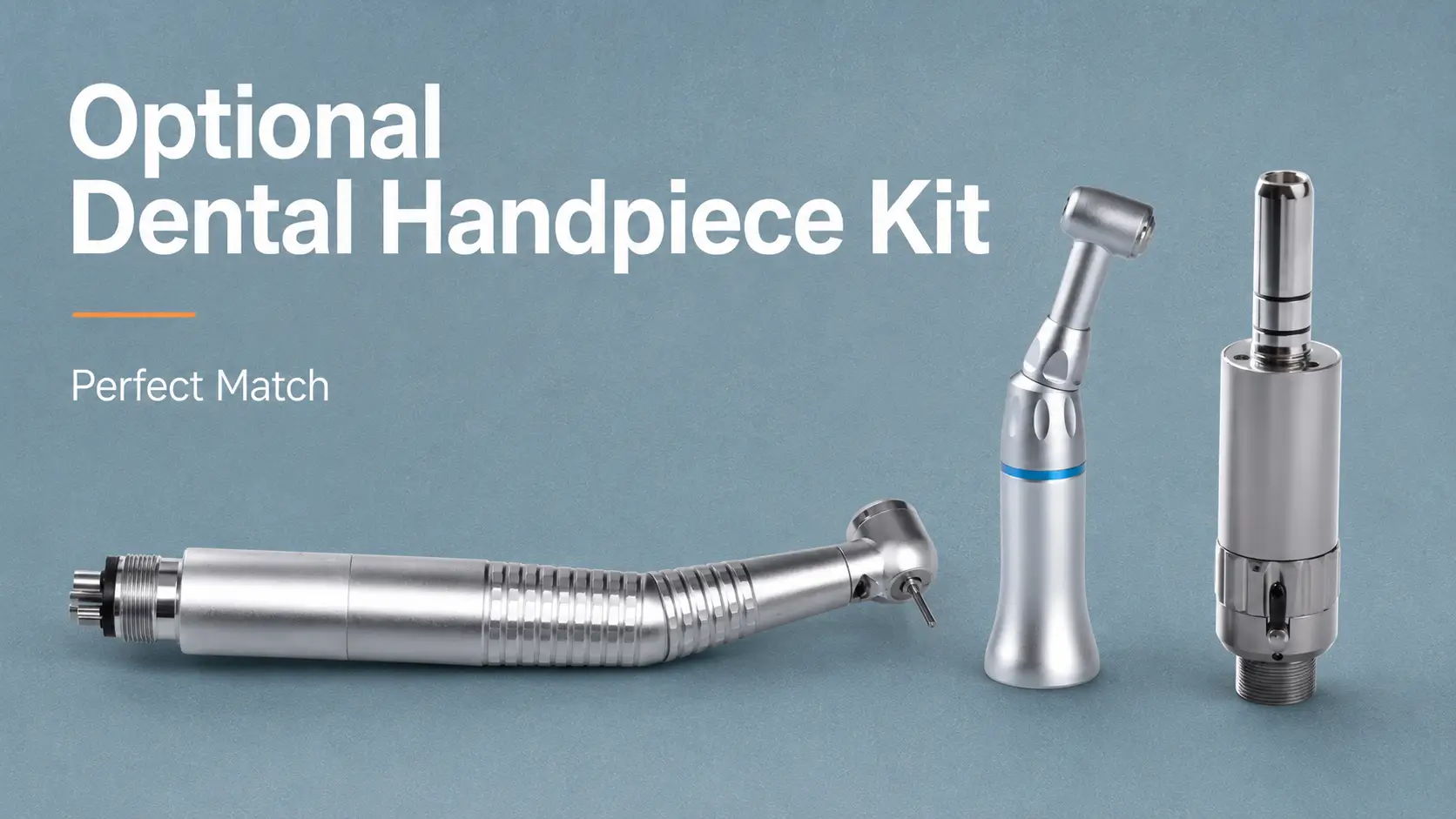

Optional Dental Handpiece Kit
The optional kit includes:
- Push-button LED high-speed dental turbine × 1
- Push-button contra-angle handpiece × 1
- Air motor × 1
LED High-Speed Turbine Specifications
- Push-button chuck
- Self-powered LED illumination
- Triple water spray
- Operating pressure: 0.25–0.30 MPa
- Air consumption: 55 L/min
- Free-load speed: 260,000 RPM
- Generator speed: 25,000–30,000 RPM
- Chucking force: 20–45 N
- Listed noise level: ≤70 dB
- Net weight: 88 g
Contra-Angle Specifications
- External water spray
- Latch-type bur connection
- Maximum speed: 22,000 RPM
- Autoclavable
Air Motor Specifications
- 1:1 drive
- Maximum speed: 22,000 RPM at 0.25 MPa
