Advantages: perfect balance, ultra light, mini size Fatigue free after long time use, powerful functions, with LED illumination

Simple operating system

Connect the dental unit to the C-Puma with a 4 holes tubing,
use the foot pedal to control the electric motor.

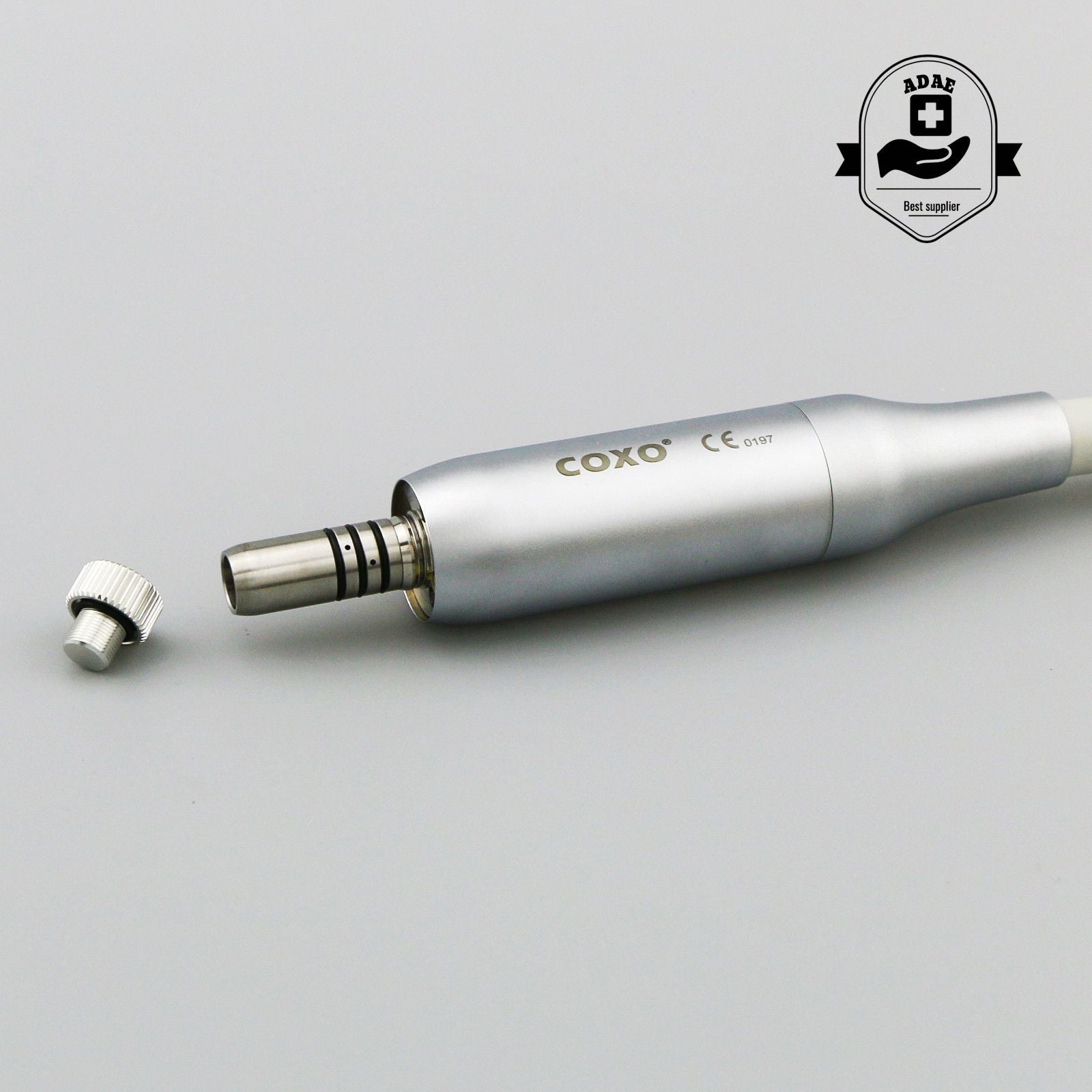

The New-Gen of technology micromotor C-Puma
According to the different treatments and different
handpieces, the speed can be adjusted from
100—200,000rpm/min.

Compact and handy, high torque
Ergonomic designed length and weight greatly reduce the
fatigue from long time operation, the motor can be sterilized.

2 Steps for upgrading the dental unit:Air, Electricity

torque output：Max. 3.5 N.cm

speed range：2000rpm-40000rpm (1：1)

          125rpm-2500rpm(16：1)

          10000rpm-200000rpm(1：5)

LED light>25000LUX

light：white LED

135℃ autoclaved sterilization（only for micromotor）
volume：126mm Ø 23m

voltage：AC 100-240V

out：Max. 120W

volume：：160mm x140mm x70mm

National
standard joint  LED light

can be sterilized under the
temperature up to 135℃
(only for the micro motor)

1.Reverse button

2.Memory Program:M1M2

3.Digital value: indicate the

current speed

4.Speed button

5.Speed light

6.Rotational speed ratio button

One year
