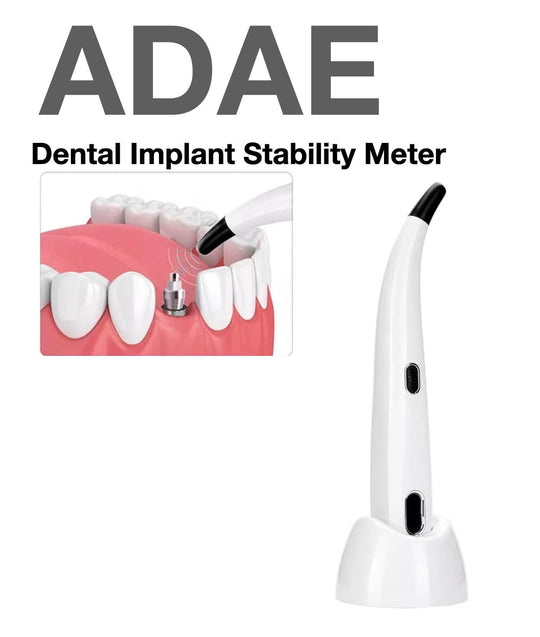

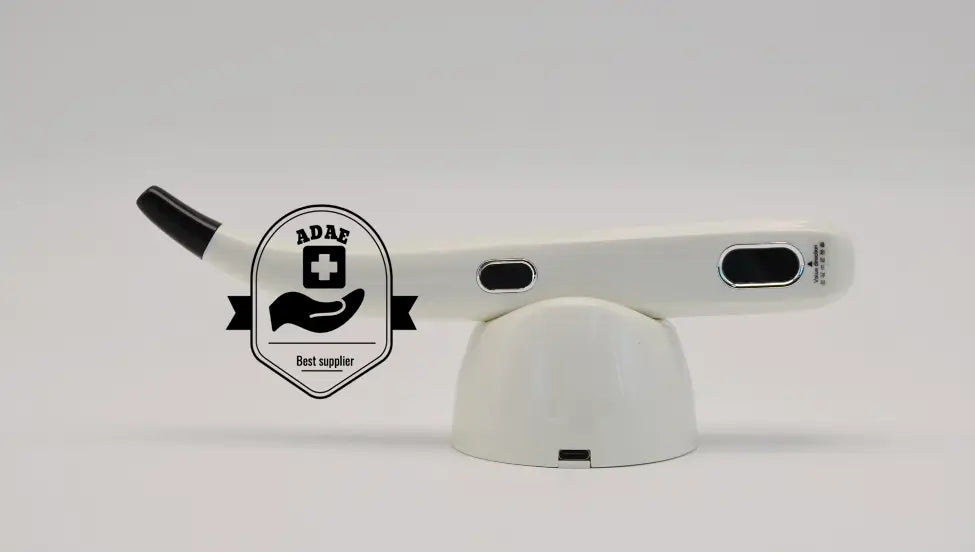

ADAE AD50 Dental Implant Stability Meter-Upgraded version
- In stock, ready to ship
Description
ADAE AD50 Dental implant stability meter is an innovative and highly intuitive tool designed to guide implant treatments for more predictable results.Helps to support decision on when to load an implant.The value will show on the display,the higher the value, the more stable the implant.Helping clinicians improve patient confidence and comfort.
With this smart tool you can easily monitor osseointegration of your dental implants and eliminate any doubt.

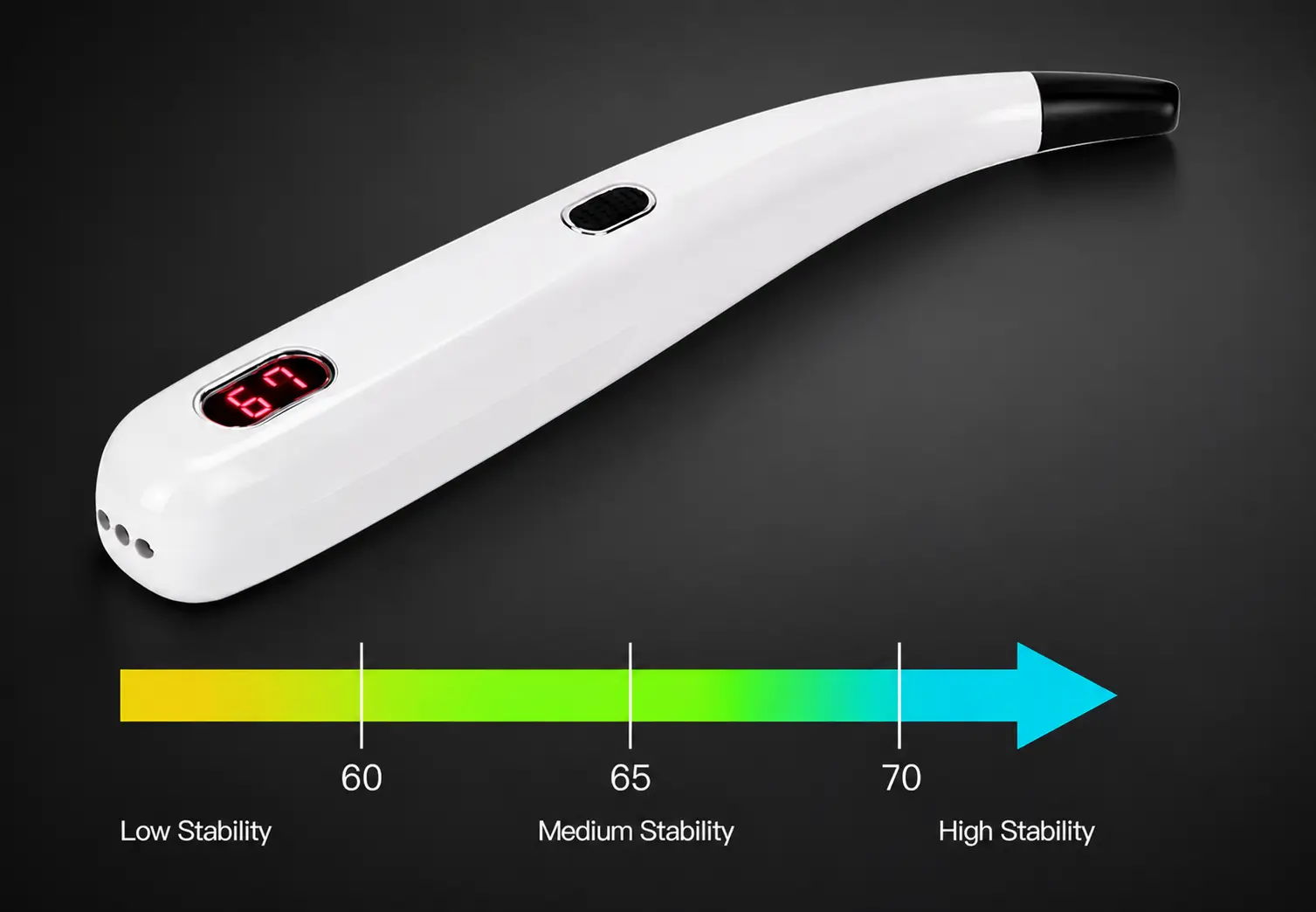

The stability of the dental implant is scaled on ISQ ( 1-99 ). In general any value above 70 indicates a very stable implant with low micro-mobility that can withstand normal functional forces in the mouth and this confirms that loading that implant is appropriate

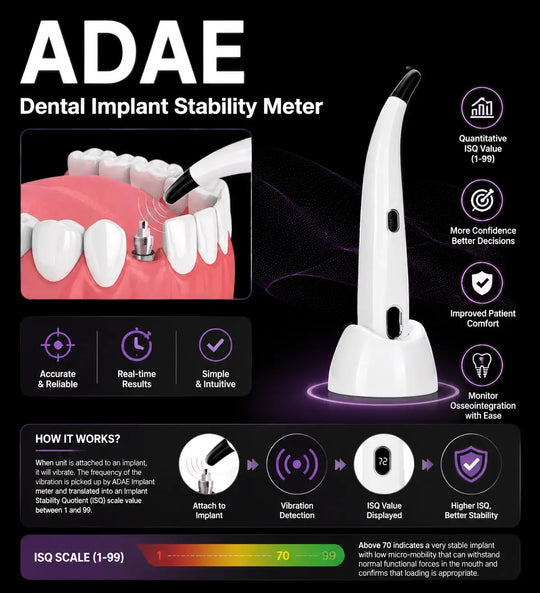

How it works?

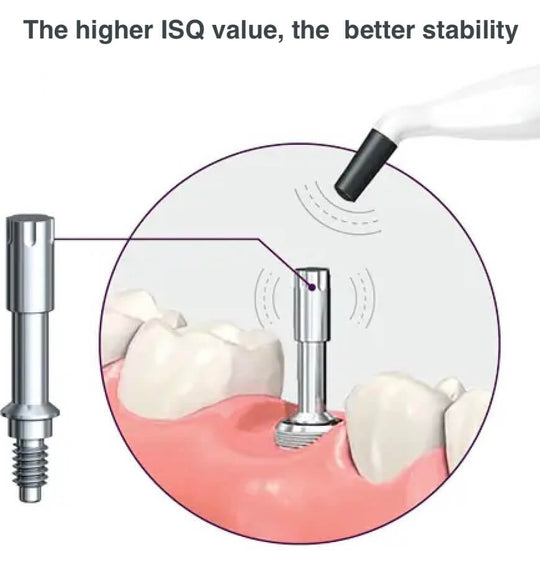

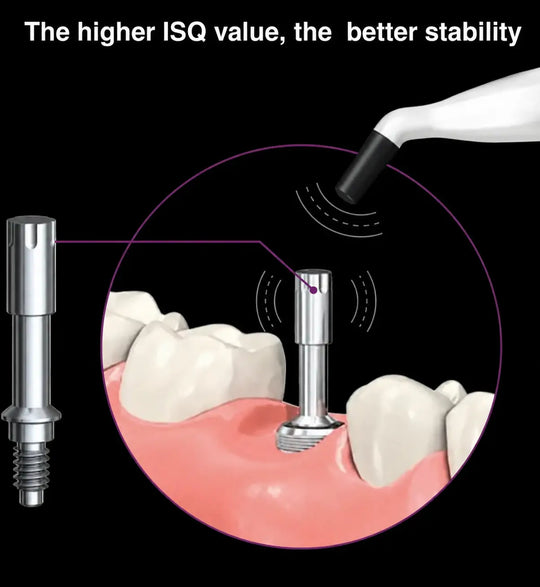

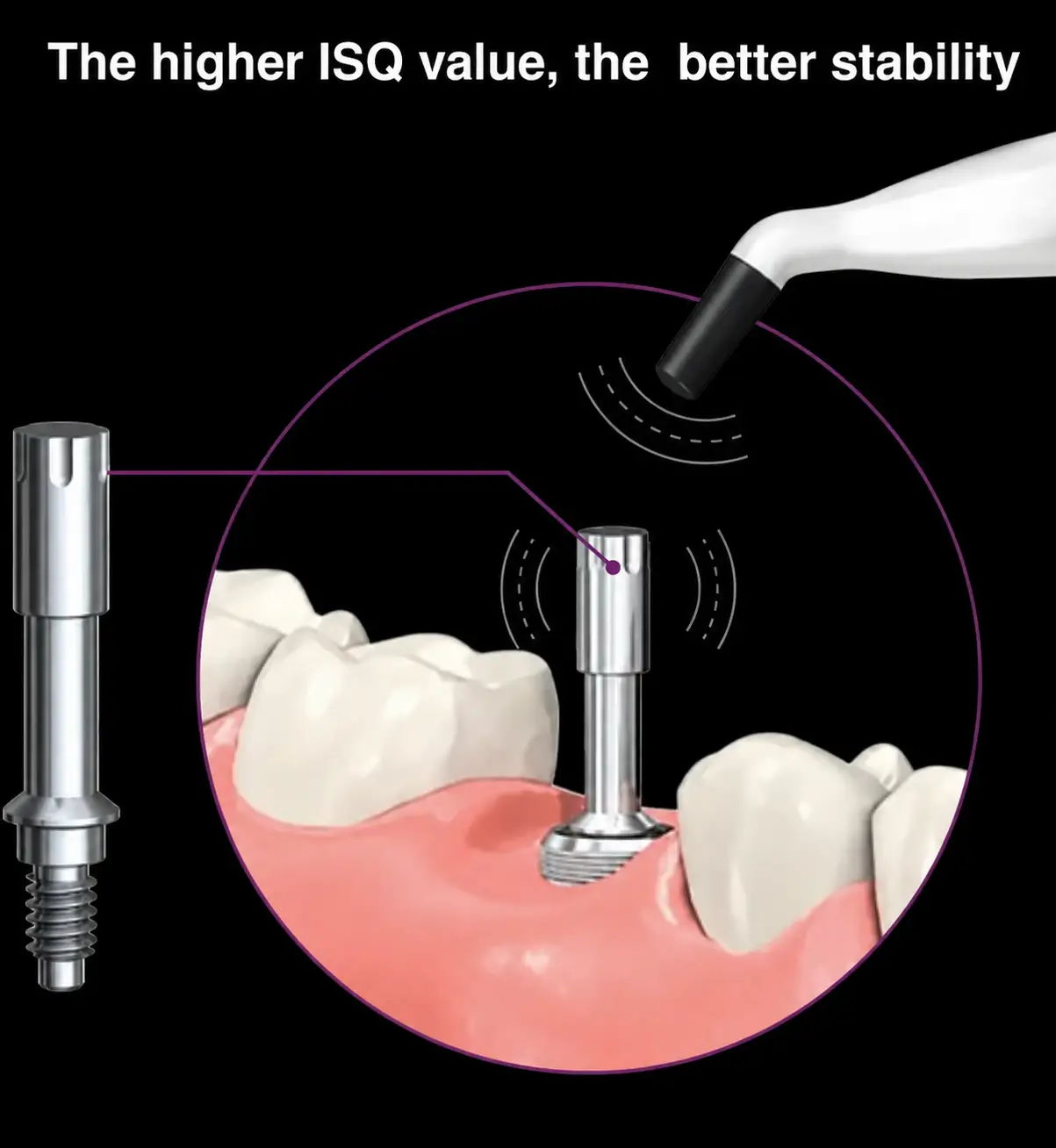

When unit is attached to an implant, it will vibrate. The frequency of the vibration is picked up by ADAE Implant meter and translated into an Implant Stability Quotient (ISQ) scale value between 1 and 99.
Technical specifications
- Charger input: 100-240 VAC, 5A.
-
Instrument weight: 100g.
-
Battery full charge time:Appx: 3 hours.
-
Battery continuous drive time: Appx 1 hour.

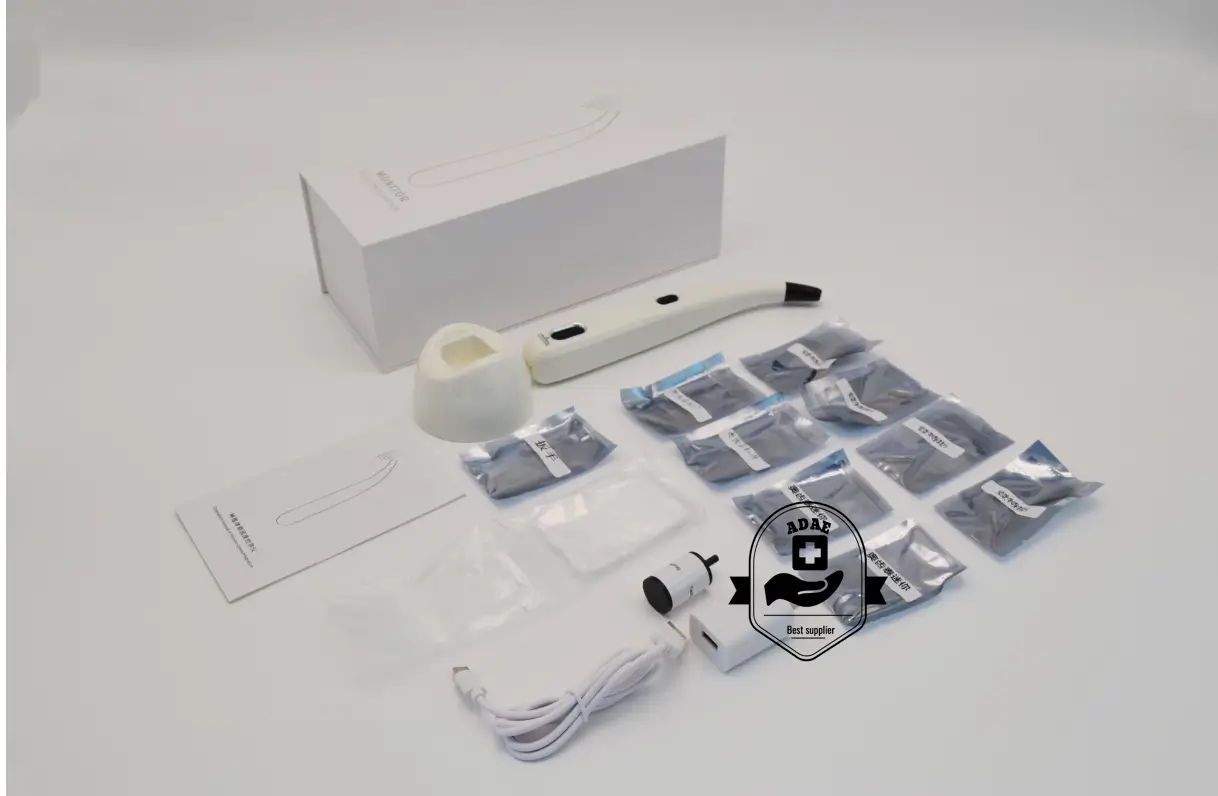

Packing list

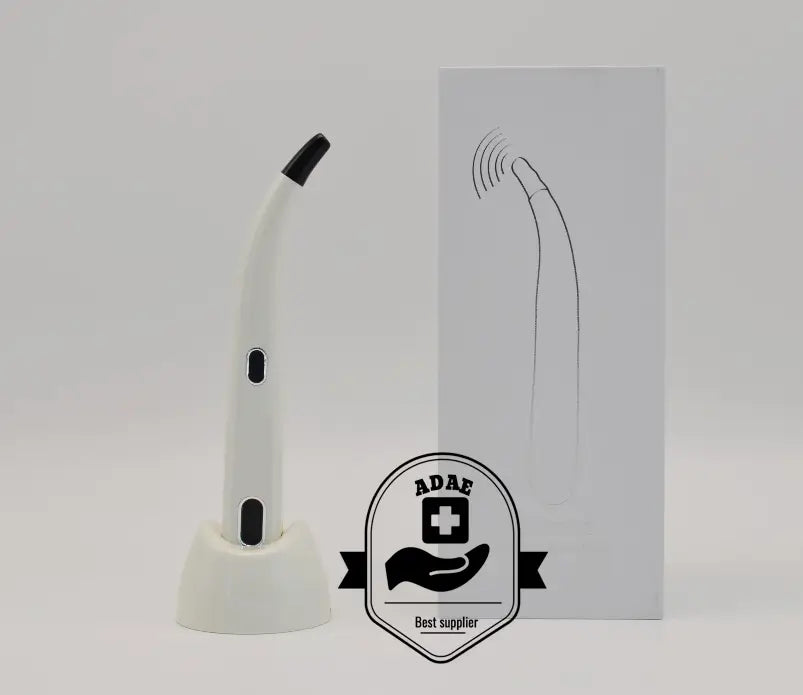

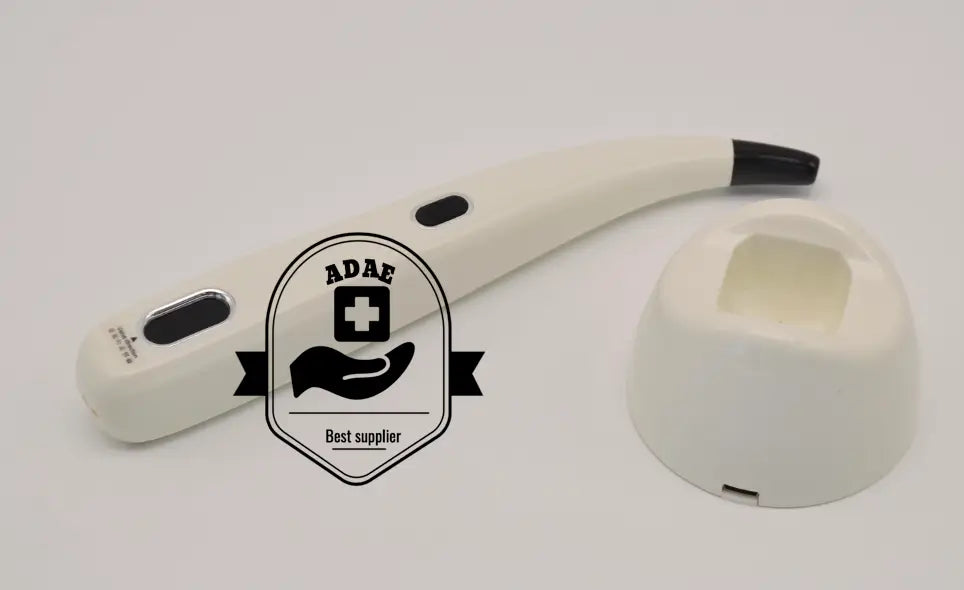

- Main unit*1
- Charging base*1

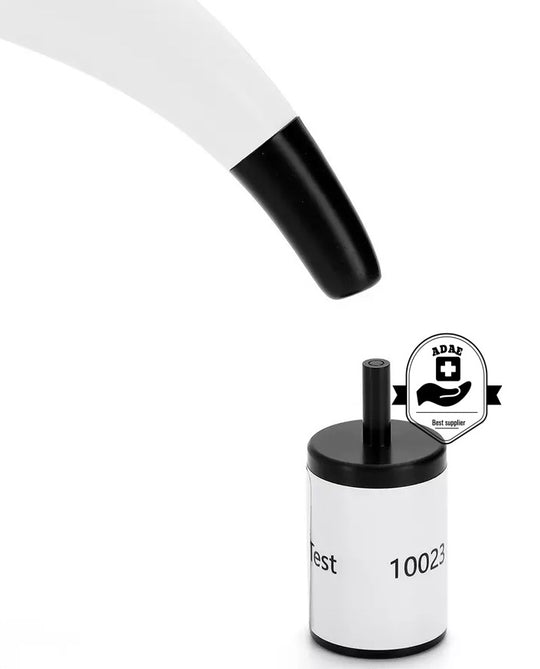

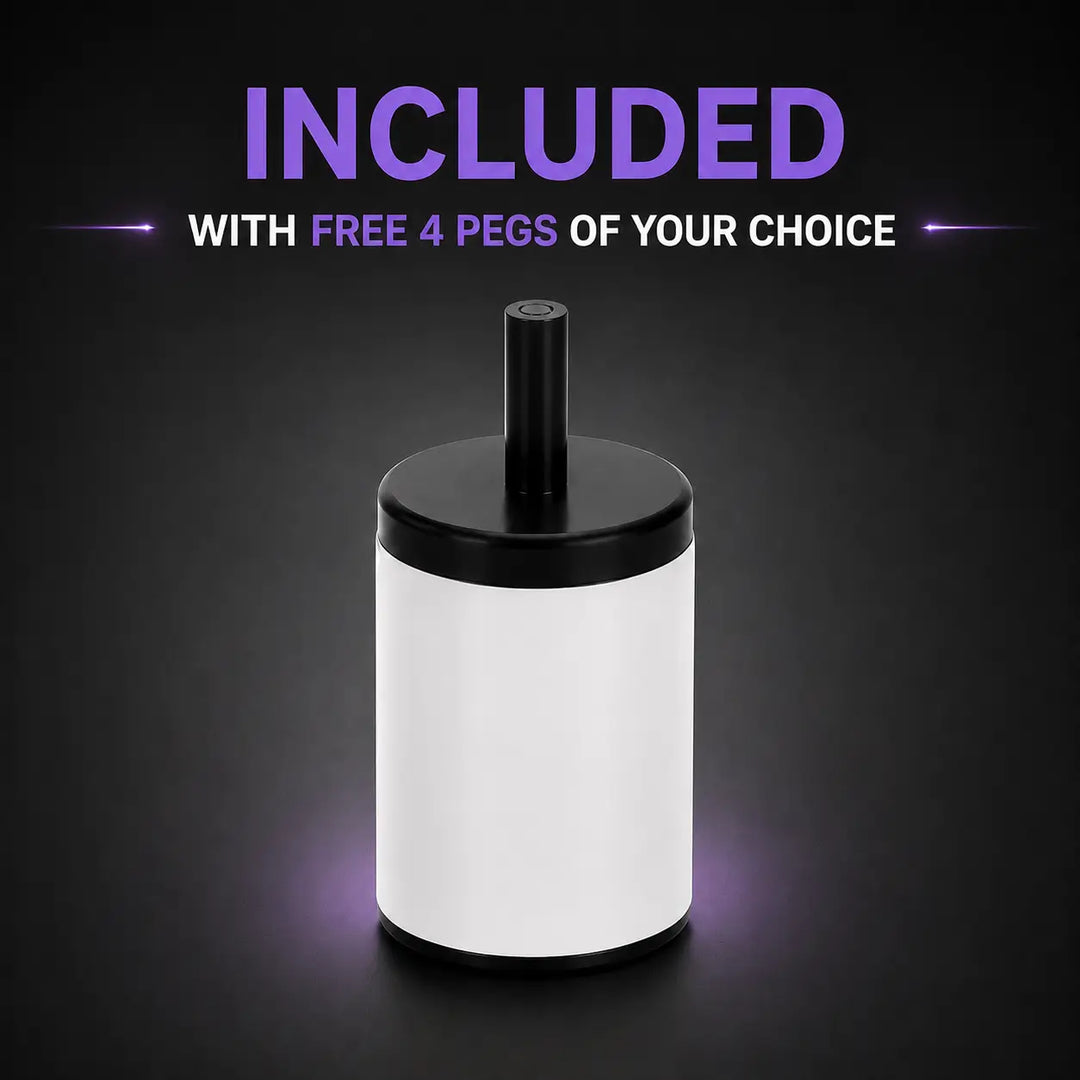

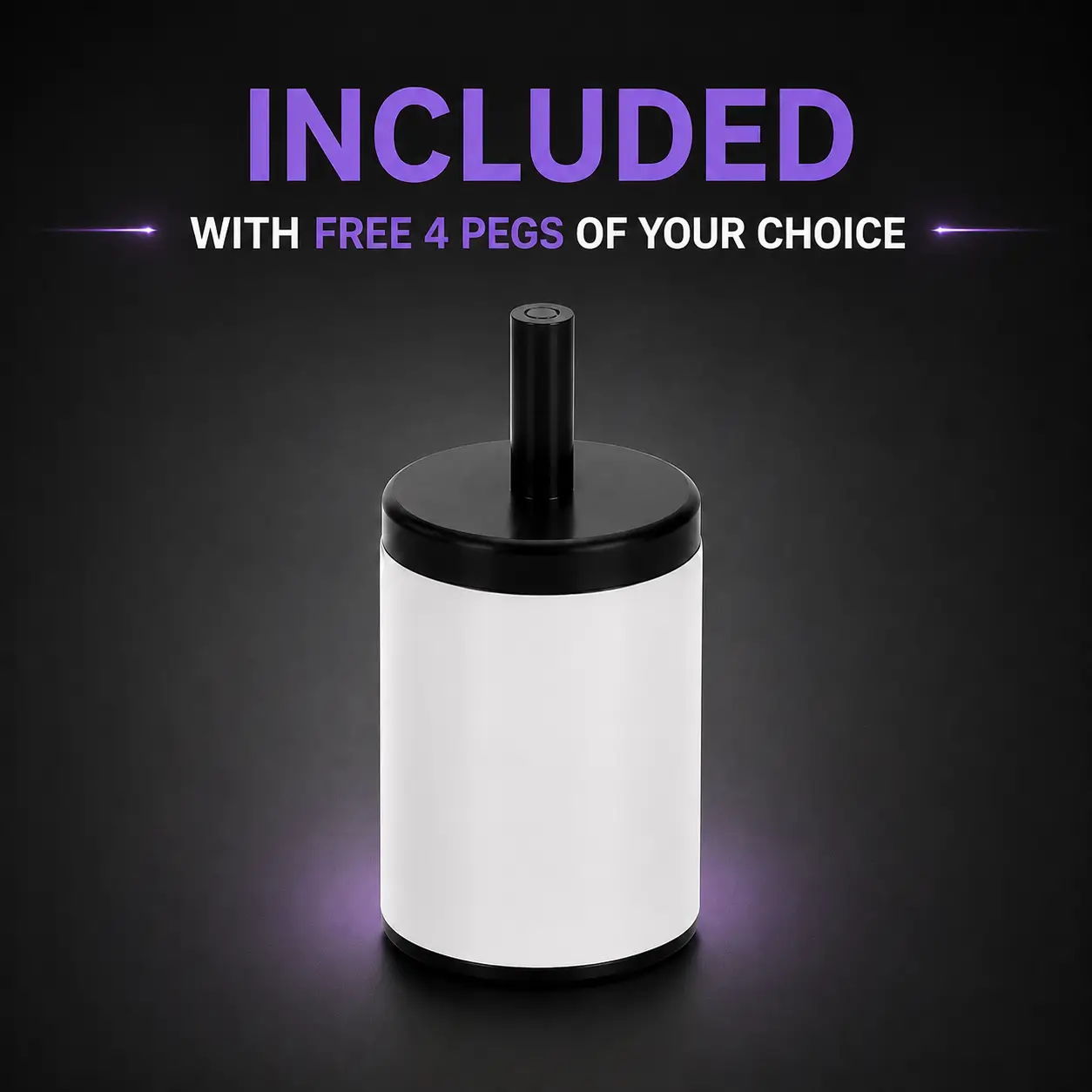

- Calibrator*1
- Charger*1
- 4 Pegs of your choice are porvided for free.
- Disposable protective sleeve*1 bag
- English operation manual
- Sensor*10
- Wrench*5
Warranty
One year.

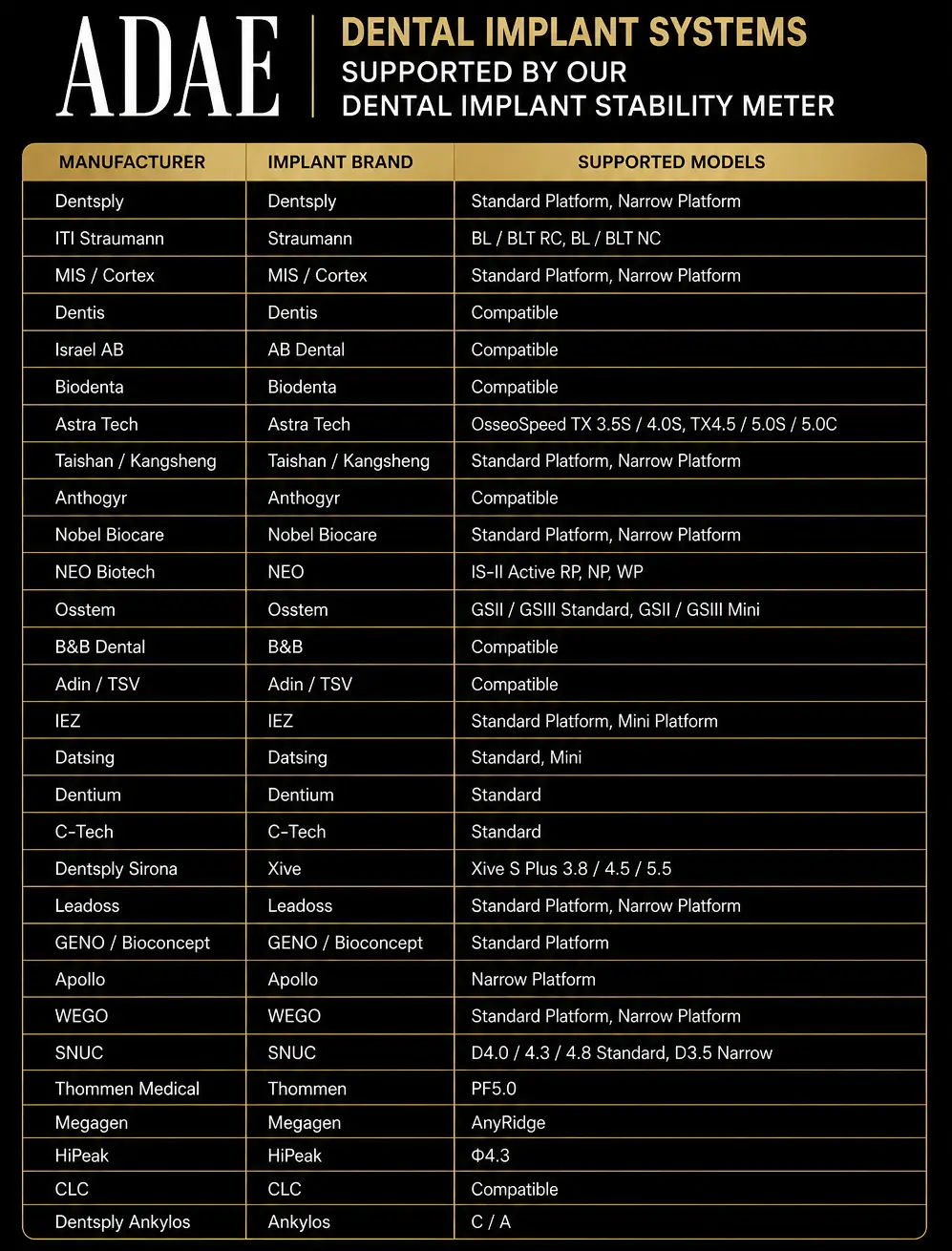

SmartPeg Compatibility Guide – Select Your 4 Free SmartPegs
SmartPeg Type 06
Compatible with:
* Dentium – Implantium (Blue 4.5 / Green 4.0 / Yellow 3.6)
* DIO – Bone Level UF(II) Regular / Wide, 2.5 Hex
* Hiossen – ETIII-UW, HGII Ultra Wide / Wide / Regular
* Osstem – GSII Wide / Regular / Ultra Wide, GSIII Regular
* Megagen – AnyOne 4.7
⸻
SmartPeg Type 07
Compatible with:
* Dentsply Astra – 4.5 / 5.0
* Dentis Dental – Save Submerged
* Dentium – Simple Line 3.8 / 4.3 / 4.8, Super Line 4.0 / 7.0
* Megagen – AnyOne 3.5 / 4.0, EZ Plus Internal 4.0 / 4.5 / 5.0
⸻
SmartPeg Type 26
Compatible with:
* Alpha Bio – ATI IH / ATID IH / ICE IH / NEO IH / SPI IH
* B&B Dental Implant
* BEGO – Semados RI Line / RS / S-Line
* BioHorizons – Tapered Internal 3.3 / 3.4 / 3.8, Tapered Plus 3.8, Tapered Pro 3.8
* Cortex – Classic, Dynamix, Saturn
* C-Tech – EL-3.5 / 4.3 / 5.1
* Zimmer – SwissPlus 3.8
⸻
SmartPeg Type 47
Compatible with:
* Biodenta – Tissue Level RP / WP
* Hiossen – ETIII 4.0 / 4.5 / 5.0
⸻
SmartPeg Type 54
Compatible with:
* Bioconcept – BC Bone Level RC
* Medentis ICX – Platform Standard, Active Master 3.3, Narrow 3.3 Tissue Line, Active Master Narrow 3.3 Tissue Line
* Straumann – Bone Level Implant RC
* Straumann – Bone Level Tapered Implant RC
* Createch – BL / BLE Bone Level RC 4.1 / 4.8
⸻
SmartPeg Type 60
Compatible with:
* ADIN – CloseFit RP
* Nobel Biocare – NobelActive NP
* Nobel Biocare – NobelParallel CC-NP
* Nobel Biocare – NobelReplace CC PMC-NP
* Nobel Biocare – NobelReplace CC-NP
