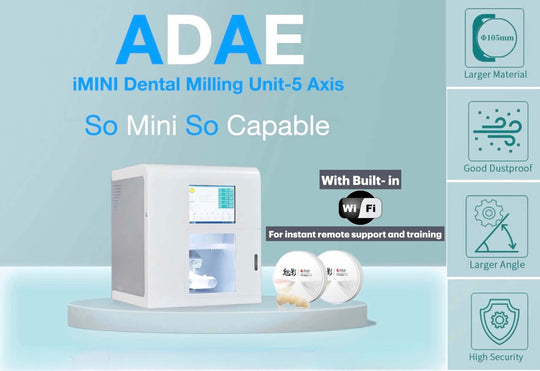

ADAE iMini Dental milling unit-Recommended for Chairside system
With ADAE Smart Built-in WiFi
Our ADAE dental technicians can directly operate the machine remotely, which is more convenient for training and after-sales services.
Customers can also remotely check the working status of the machine while they are away.
Technical specifications
The CAM software is already included with the milling unit and you can choose one of these following softwares that we offer for free:
Worknc , Millbox , Hyperdent
| Volume | 470*393*475mm |
| Axis Quantity | 5-Axis and 5-linkages |
| Motor | Micro Step Servo |
| Spindle | 500W+ATC |
| Spindle Cool | Air Cool |

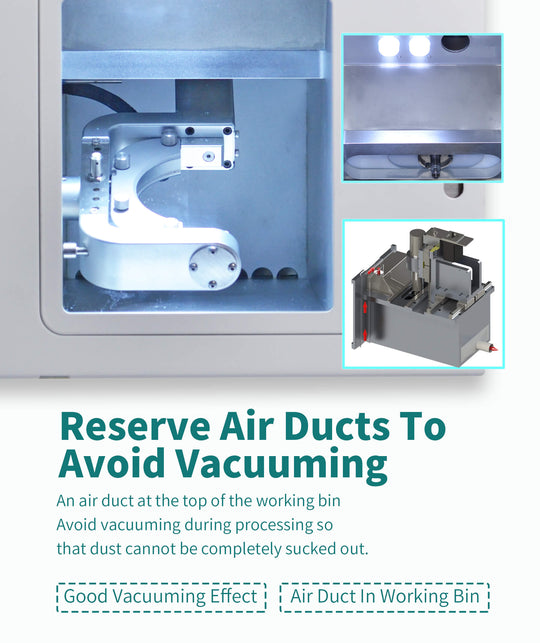

| Workpiece Cool | Dust Clean |
| Tool Library | 6 |
| Tool Size | RI*L18mm/RO.5 #L16mm/R0.3*L10mm |
| Power Supply Voltage | 1.0KW 110V-220V |
| Weight | 75KG |

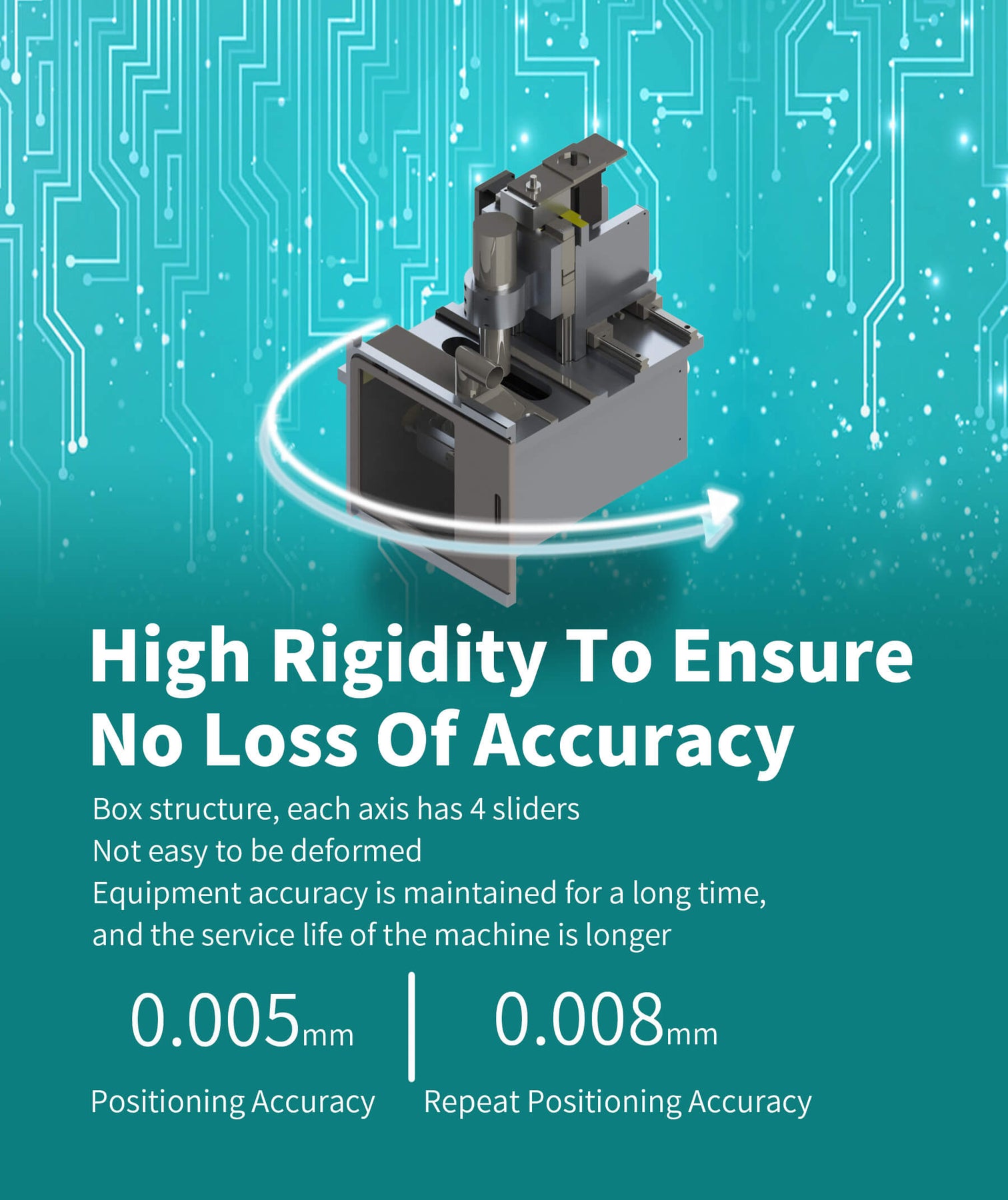

| Positioning Accuracy | 0.005mm |
| Repeat Positioning Accuracy | 0.008mm |
| Maximum Speed | 3600mm/min |
| A-axis Rotation Angle | (-25) ~ (25) |
| B-axis Rotation Angle | 0-(360) |

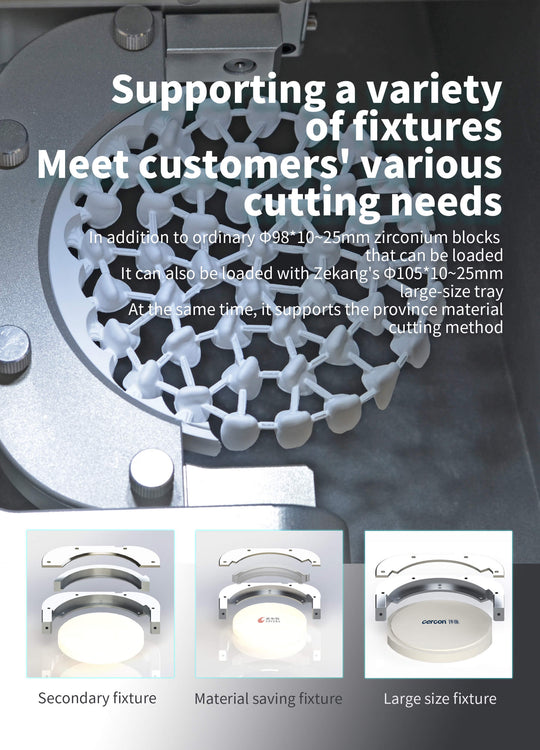

| Machinable Material Size | Ф98*10-25mm/CERCON Ф105*10-25mm |

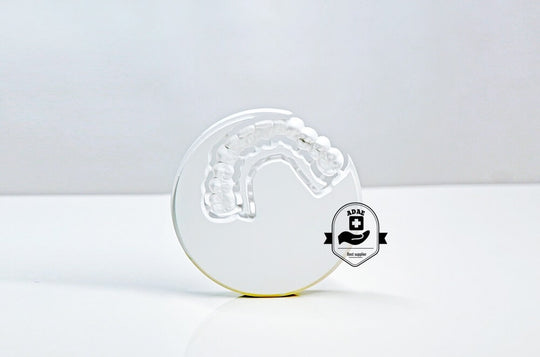

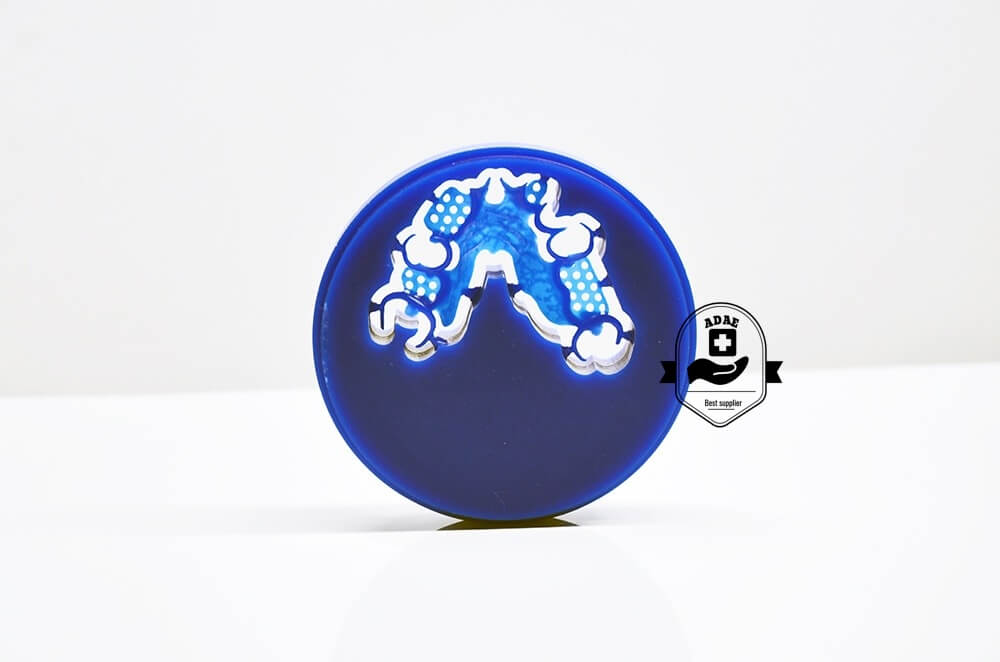

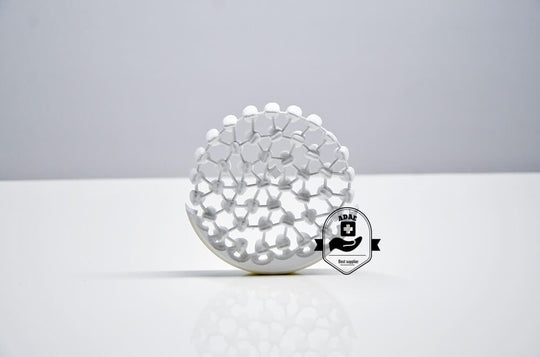

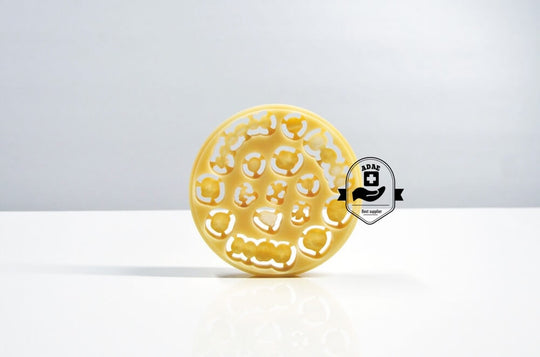

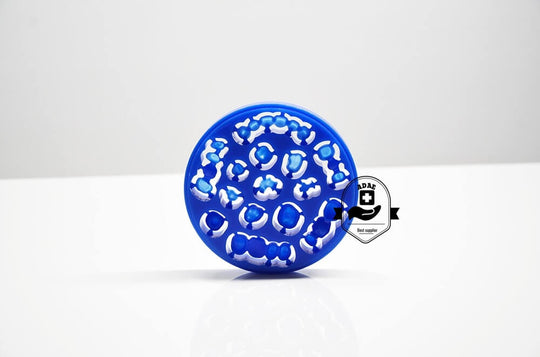

| Machinable Materials | Zirconia/Wax/PMMA |
Warranty
One year.
