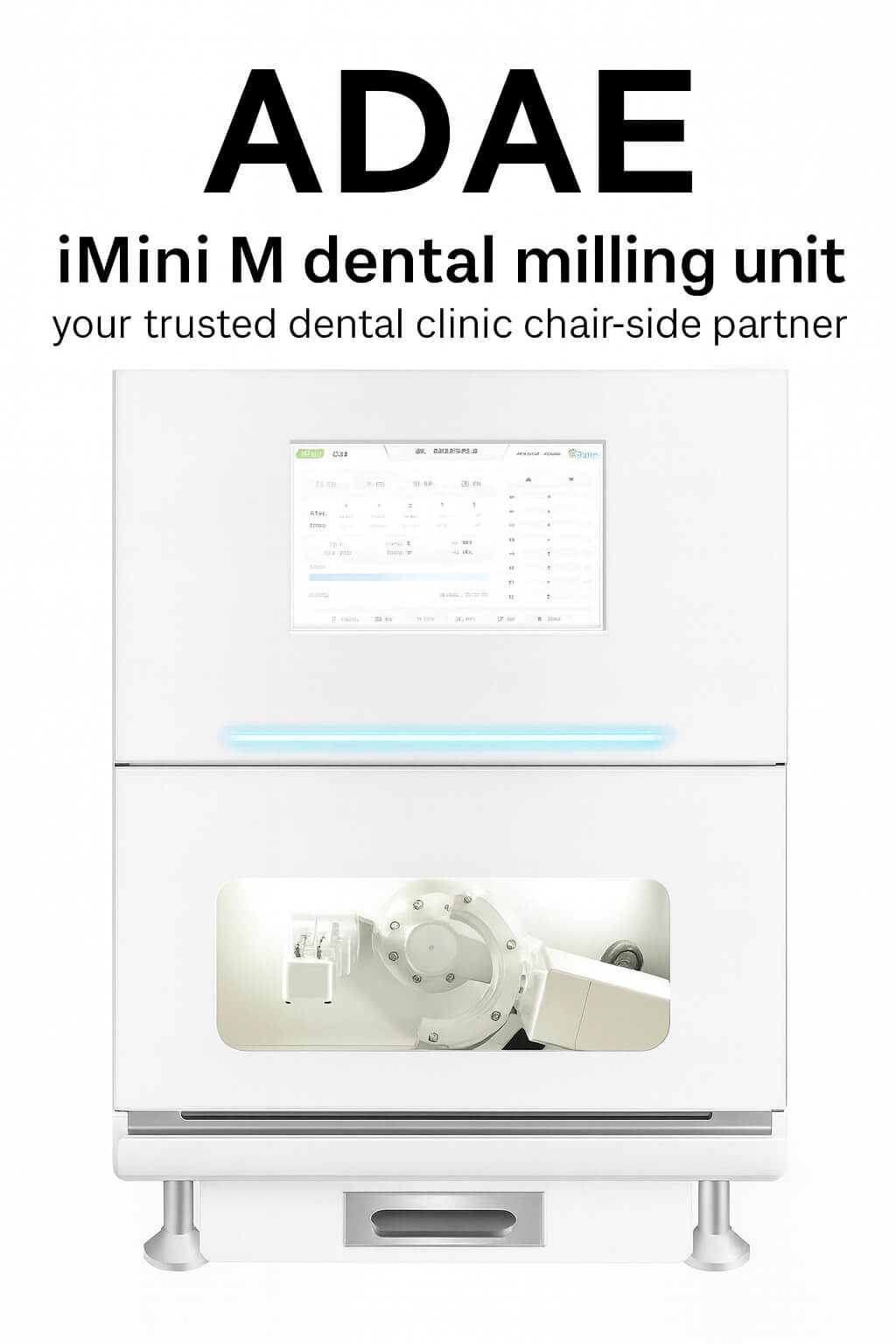

ADAE iMini M Dental Milling Unit (Dry and wet milling options available)
With ADAE Smart Built- in WiFi
Our ADAE dental technicians can directly operate the machine remotely, which is more convenient for training and after-sales services.
Customers can also remotely check the working status of the machine while they are away.
- Specifications for Dry milling model and advantages
- Specifications for Wet milling model and advantages
Technical Parameter
Size: 456 × 599 × 700 mm
Weight: 85 kg
Process method: Dry milling
Axis: 5 axis linkage
Air Pressure: ≥0.65 mpa
Supply power: 110V/60Hz or 220V/50Hz.
Maximum output power: 1.4 kw
Positioning accuracy: ±0.005 mm
Motor: Servo motor
Process Angle:
-
A: 360°
-
B: +110° ~ -30°
Process materials: Zirconia / Wax / PMMA / PEEK
Spindle:
-
60000 RPM
-
Forced air cooling
-
4 mm holder
-
0.5 kw
Function:
-
Milling burs working time management
-
Status indicator light
-
Flow detection
-
90° Vertical processing
-
Two-color theme switching
Tools quantity: 8
Tools type:
-
R1.0 × 18 × 4D × 50
-
R0.5 × 18 × 4D × 50
-
R0.3 × 18 × 4D × 50
-
D1.5 × 18 × 4D × 50
Technical Parameter
Size: 456 × 599 × 700 mm
Weight: 85 kg
Process method: Wet milling
Axis: 5 axis linkage
Air Pressure: ≥0.65 mpa
Supply power: 110V/60Hz or 220V/50Hz.
Maximum output power: 2.6 kw
Positioning accuracy: ±0.005 mm
Motor: Servo motor
Process Angle:
-
A: 360°
-
B: +30° ~ -30°
Process materials: Glass ceramic / Premill abutment
Spindle:
-
60000 RPM
-
water-cooling
-
6 mm holder
-
1.8 kw
Function:
-
Milling burs working time management
-
Status indicator light
-
Flow detection
-
Two-color theme switching
Tools quantity: 8
Tools type:
-
R2.5 × 16 × 4D × 50
-
R2.0 × 16 × 4D × 50
-
R1.0 × 16 × 4D × 50
-
R1.0 × 16 × 4D × 50
-
R1.5 × 16 × 4D × 50
-
R1.0 × 16 × 4D × 50
-
R0.5 × 16 × 4D × 50
Warranty
One year
